Vivotek - DRL-48V240W1EN - 90~264VAC In, 48VDC/240W Out , - 20 ℃ ~ 70 ℃
Part number:
DRL-48V240W1EN
Price:

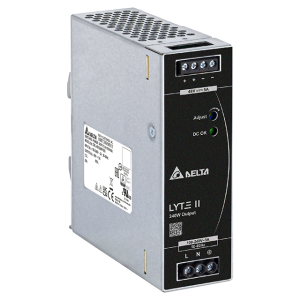

Delta’s LYTE II DIN rail power supply series is designed for cost sensitive users who need to fulfill essential features needed for many general industrial applications, without compromising on quality and reliability. The convection-cooled LYTE II series will operate full power from -30°C to +50°C, then de-rating up to +70°C at 230 Vac. It can operate in constant current mode, making it suitable for inductive and capacitive loads. The product is certified according to safety standards IEC/EN/UL 62368-1. Electromagnetic radiated and conducted emissions are compliant to heavy industrial EN 61000-6-4 Class B Emission standard and EN 61000-6-2 Immunity standard. The product comply with environmental protection requirements as per RoHS Directive
| Model Number | DRL-12V240W1EN | DRL-24V240W1EN¨ | DRL-48V240W1EN |
| Input Ratings / Characteristics | |||
| Nominal Input Voltage | 100-240 Vac | ||
| Input Voltage Range | 90-264 Vac | ||
| Nominal Input Frequency | 50-60 Hz | ||
| Input Frequency Range | 47-63 Hz | ||
| Input Current | 2.5 A typ. @ 115 Vac, 1.3 A typ. @ 230 Vac | ||
| Efficiency at 100% Load | 86.5% typ. @ 230 Vac | 90.0% typ. @ 230 Vac | 90.5% typ. @ 230 Vac |
| Average Efficiency(25%, 50%, 75%, 100%) | 88% typ. @ 115 Vac | 88% typ. @ 115 Vac | 88% typ. @ 115 Vac |
| No Load Power Consumption | 0.15 W max @ 115 Vac &230 Vac | 0.21 W max @ 115 Vac &230 Vac | 0.3 W max @ 115 Vac &230 Vac |
| Max Inrush Current (Cold Start) | 40 A typ. @ 230 Vac | ||
| Power Factor at 100% Load | > 0.95 @ 115 Vac & 230 Vac | ||
| Leakage Current | < 0.75 mA @ 240 Vac | ||
| Output Ratings / Characteristics*2 | |||
| Nominal Output Voltage | 12 Vdc | 24 Vdc | 48 Vdc |
| Factory Set Point Tolerance | 12 Vdc ± 1% | 24 Vdc ± 1% | 48 Vdc ± 1% |
| Output Voltage Adjustment Range | 10.8-13.2 Vdc | 21.6-26.4 Vdc | 43.2-52.8 Vdc |
| Output Current | 20.0 A | 10.0 A | 5.0 A |
| Output Power | 240 W max | ||
| Line Regulation | ± 0.5% @ 115 Vac & 230 Vac | ||
| Load Regulation | ± 1.0% | ± 0.5% | ± 0.5% |
| PARD*3(20 MHz) | < 120 mVpp @ 0°C to +70°C < 360 mVpp @ -30°C to 0°C | < 150 mVpp @ 0°C to +70°C < 450 mVpp @ -30°C to 0°C | < 200 mVpp @ 0°C to +70°C < 600 mVpp @ -30°C to 0°C |
| Rise Time | 30 ms typ. @ 115 Vac & 230 Vac | ||
| Start-up Time | 500 ms typ. @ 115 Vac & 230 Vac | ||
| Hold-up Time | 20 ms typ. @ 115 Vac (100% load)20 ms typ. @ 230 Vac (100% load) | ||
| Dynamic Response (Overshoot & Undershoot O/P Voltage) | ± 10% @ 115 Vac & 230 Vac input, 10-100% load (Slew Rate: 2.5 A/μs, 50% duty cycle @ 5 Hz & 10 kHz) | ||
| Start-up with Capacitive Loads | 8,000 μF Max | 8,000 μF Max | 3,000 μF Max |
| Mechanical | |||
| Case Cover / Chassis | SGCC / Aluminum | ||
| Dimensions (H x W x D) | 123.6 x 40 x 116.8 mm (4.87 x 1.57 x 4.60 inch) | ||
| Unit Weight | 0.62 kg (1.37 lb) | ||
| Indicator | Green LED (DC OK) | ||
| Cooling System | Convection | ||
| Terminal*4 | Input | 3 Pins (Rated 300 V / 30 A) | |
| Output | 4 Pins (Rated 300 V / 20 A) | ||
| Wire | Input | AWG 18-12 (Current rating can refer to “AWG Wire Table”) | |
| Output | AWG 18-12 (Current rating can refer to “AWG Wire Table”) | ||
| Mounting Rail | Standard TS35 DIN Rail in accordance with EN 60715 | ||
| Noise (1 Meter from power supply) | Sound Pressure Level (SPL) < 25 dBA | ||
| Environment | |||
| Surrounding Air | Operating | -30°C to +70°C (-40°C Cold Start) | |
| Temperature | Storage | -40°C to +85°C | |
| Power De-rating | Temperature | > 40°C de-rate power by 1.67 % / °C @ 115 Vac> 50°C de-rate power by 2.5 % / °C @ 230 Vac | |
| Input Voltage | < 100 Vac de-rate power by 1% / Vac | ||
| Operating Humidity | 20 to 90% RH (Non-Condensing) | ||
| Operating Altitude | 0 to 5,000 Meters (16,400 ft.) | ||
| Shock Test | Non- Operating | IEC 60068-2-27, Half Sine Wave: 50 G for duration of 11 ms; 3 times per direction, 9 times in total | |
| Operating | IEC 60068-2-27, Half Sine Wave: 10 G for duration of 11 ms; 1 time in X axis | ||
| Vibration | Non-Operating | IEC 60068-2-6, Random: 5 Hz to 500 Hz (2.09 G); 20 min per axis for all X, Y, Z direction | |
| Operating | IEC 60068-2-6, Sine Wave: 10 Hz to 500 Hz @ 19.6 m/s2 (2 G peak);10 min per cycle, 60 min for X direction | ||
| Over Voltage Category | II (Compliance to EN 62477-1 OVC III with 2000 meters altitude) | ||
| Pollution Degree | 2 | ||
| Protections | |||
| Overvoltage | < 17.4 V, SELV Output, < 33.6 V, SELV Output, Latch Mode Latch Mode | < 64.8 V, SELV Output, Latch Mode | |
| Overload / Overcurrent | 105 - 150% of rated load current, Auto-recovery | ||
| Continuous current limit Mode* 5 (Vo > 80%) | |||
| Over Temperature | Latch Mode | ||
| Short Circuit | Hiccup Mode, Non-Latching | ||
| (Auto-Recovery when the fault is removed) | |||
| Protection Against Shock | Class I with PE*6 connection | ||
| Reliability Data | |||
| MTBF | Telcordia SR-332 | > 700,000 hrs I/P: 115 Vac & 230 Vac, O/P: 100% load, Ta: 25°C | |
| Expected Cap Life Time | 10 years (230 Vac, 50% load @ 40°C) | ||
| Safety Standards / Directives | |||
| Electrical Safety | CB scheme TUV Bauart UL/cUL BSMI EAC KC | IEC 62368-1, IEC 60950-1, IEC 61010-1 & -2-201 EN 62368-1, EN 61010-1 & -2-201 UL 62368-1 CNS14336-1 TP TC 004/2011 K 60950-1 (24 V model only) | |
| CE | In conformance with EMC Directive 2014/30/EU and Low Voltage Directive 2014/35/EU | ||
| UKCA | In conformance with Electrical Equipment (Safety) Regulations 2016 and Electromagnetic Compatibility Regulations 2016 | ||
| Galvanic Isolation | Input to | ||
| Output | 3.0 KVac | ||
| Input to | |||
| Ground | 2.0 KVac | ||
| Output to | |||
| Ground | 1.0 KVac | ||
| EMC | |||
| Emissions (CE & RE) | CISPR 32, EN/BS EN 55032, EN/BS EN 61000-6-4, AS/NZS CISPR32, EN/BS EN 61204-3,KN 32 (24 V model only) Compliance to FCC Title 47, EN/BS EN 61000-6-3: Class B | ||
| Component Power Supply for General Use | EN/BS EN 61204-3 | ||
| Immunity | EN/BS EN 55035, KN 35 (24 V model only), EN/BS EN 61000-6-2 Compliance to EN/BS EN 61000-6-1 | ||
| Electrostatic Discharge | IEC 61000-4-2 | Level 4 Criteria A1)Air Discharge: 15 kV Contact Discharge: 8 kV | |
| Radiated Field | IEC 61000-4-3 | Criteria A1)80 MHz – 1 GHz, 10 V/M, 80% Modulation (1 kHz)1.4 GHz – 2 GHz, 3 V/M, 80% Modulation (1 kHz)2 GHz – 2.7 GHz, 1 V/M, 80% Modulation (1 kHz) | |
| Electrical Fast Transient / Burst | IEC 61000-4-4 | Level 3 Criteria A1)2 kV | |
| Surge | IEC 61000-4-5 | Level 4 Criteria A1)Common Mode4): 4 kV Differential Mode5): 2 kV | |
| Conducted | IEC 61000-4-6 | Level 3 Criteria A1)150 kHz – 80 MHz, 10 Vrms | |
| Power Frequency Magnetic Fields | IEC 61000-4-8 | Level 4 Criteria A1)30 A/m | |
| Voltage Dips andInterruptions | IEC 61000-4-11 | 0% residual; 1 cycle, Criteria B2)40% residual; 10 cycle, Criteria C3)70% residual; 25 cycle, Criteria C3) | |
| Harmonic Current Emission | IEC/EN/BS EN 61000-3-2, Class A | ||
| Voltage Fluctuation and Flicker | IEC/EN/BS EN 61000-3-3 | ||
| Voltage Sag Immunity SEMI F47 – 0706 | 80% of 200 Vac70% of 200 Vac50% of 200 Vac | 160 Vac, 1000 ms140 Vac, 500 ms100 Vac, 200 ms | |
