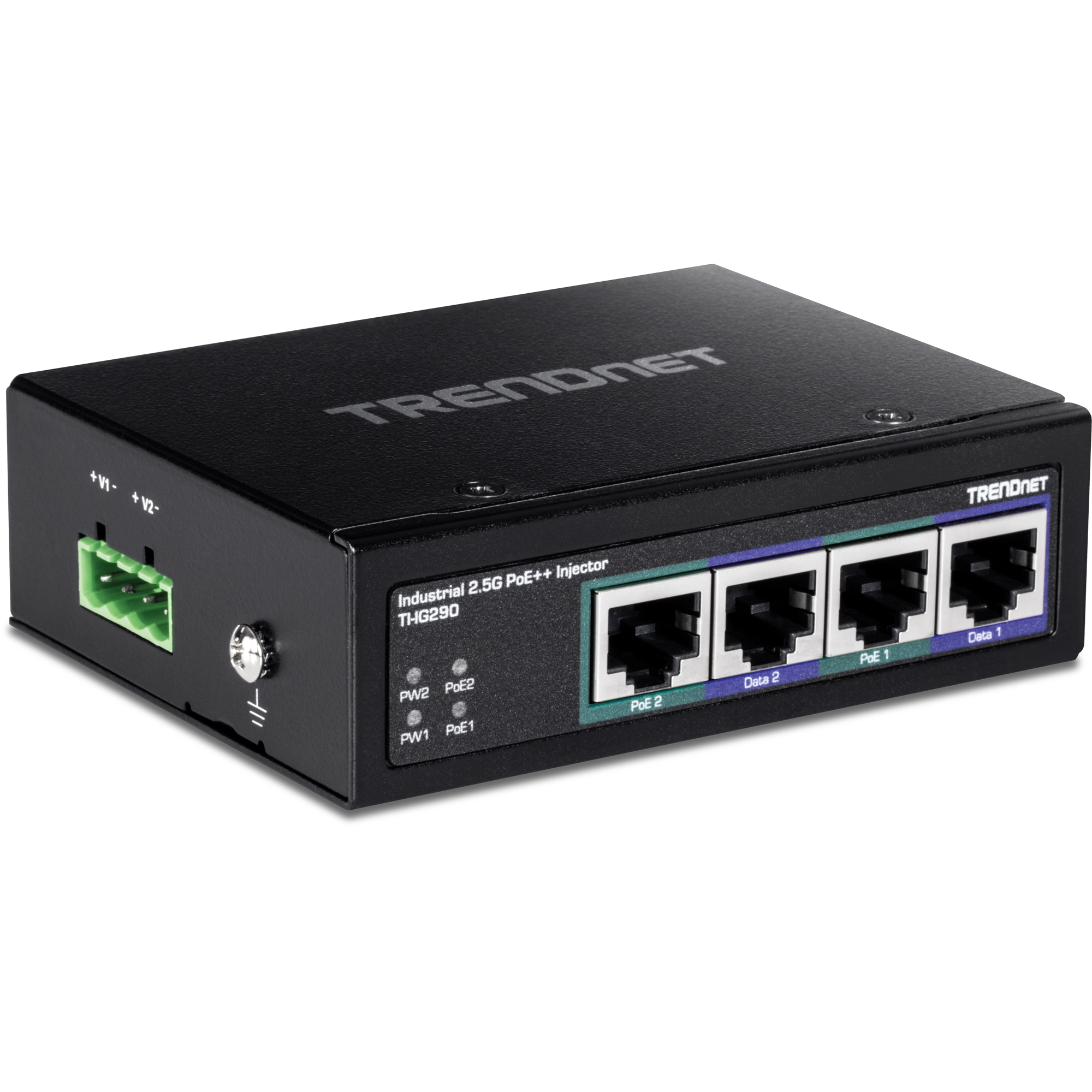

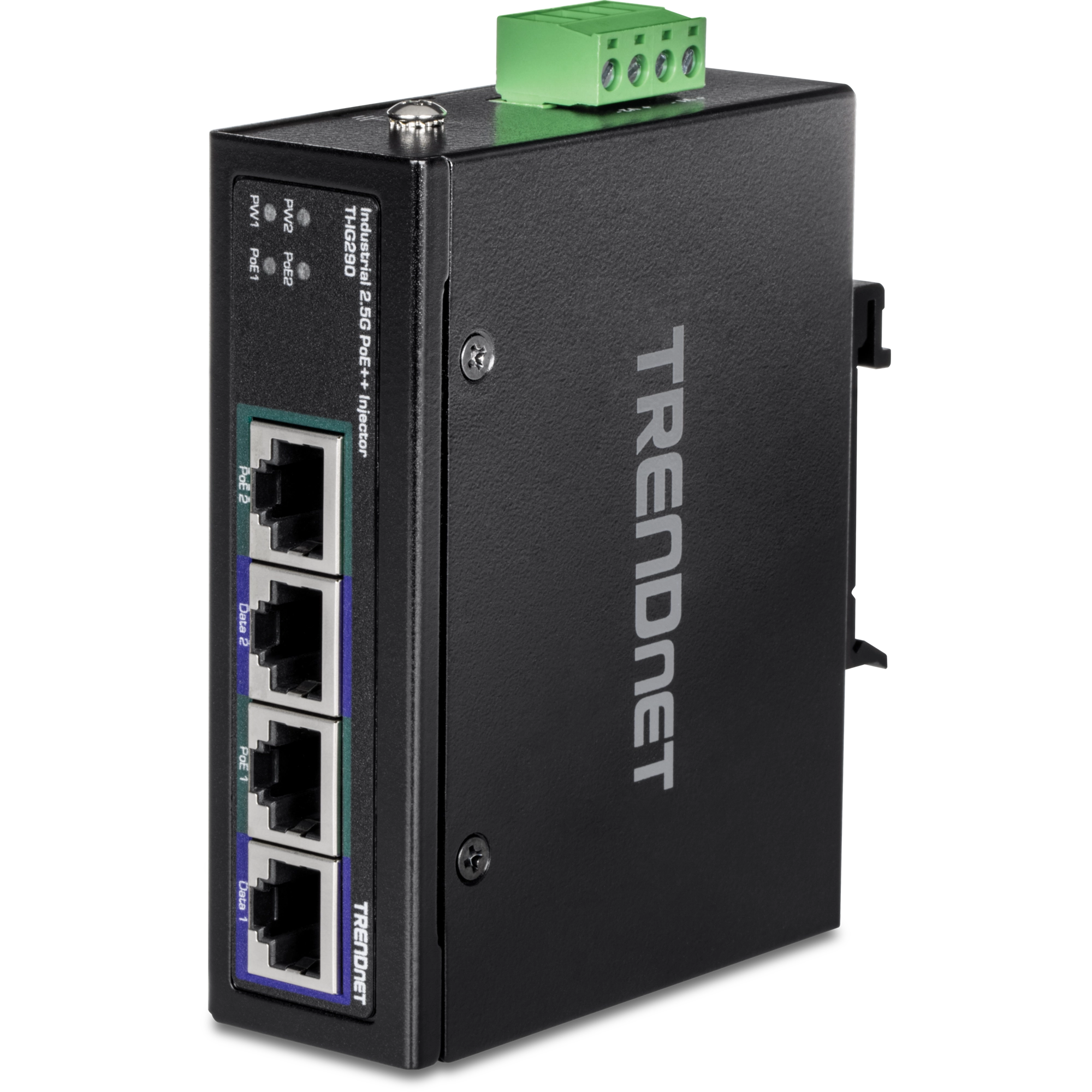

TRENDnet’s 90W 2-Port Industrial 2.5G PoE++ Injector, model TI-IG290, allows users to add PoE++ power to a non-PoE 2.5G switch. Connect the 2-port industrial 2.5G PoE++ injector to a non-PoE 2.5G switch, and then run Ethernet cables up to 100 meters (328 ft.) to network two PoE/PoE++ devices. This multi-port industrial 2.5G PoE++ injector supplies up to 90W of power to two PoE devices with a total PoE budget of 180W. The fanless design conveniently eliminates operating noise and lowers unnecessary energy consumption. The dual port industrial 2.5G PoE++ injector is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 70° C (-40° – 158° F) for harsh industrial environments.

2-Port PoE

This multi-port 2.5G PoE++ injector supplies up to 90W of power to two PoE devices with a total PoE budget of 180W.

2.5G Ports

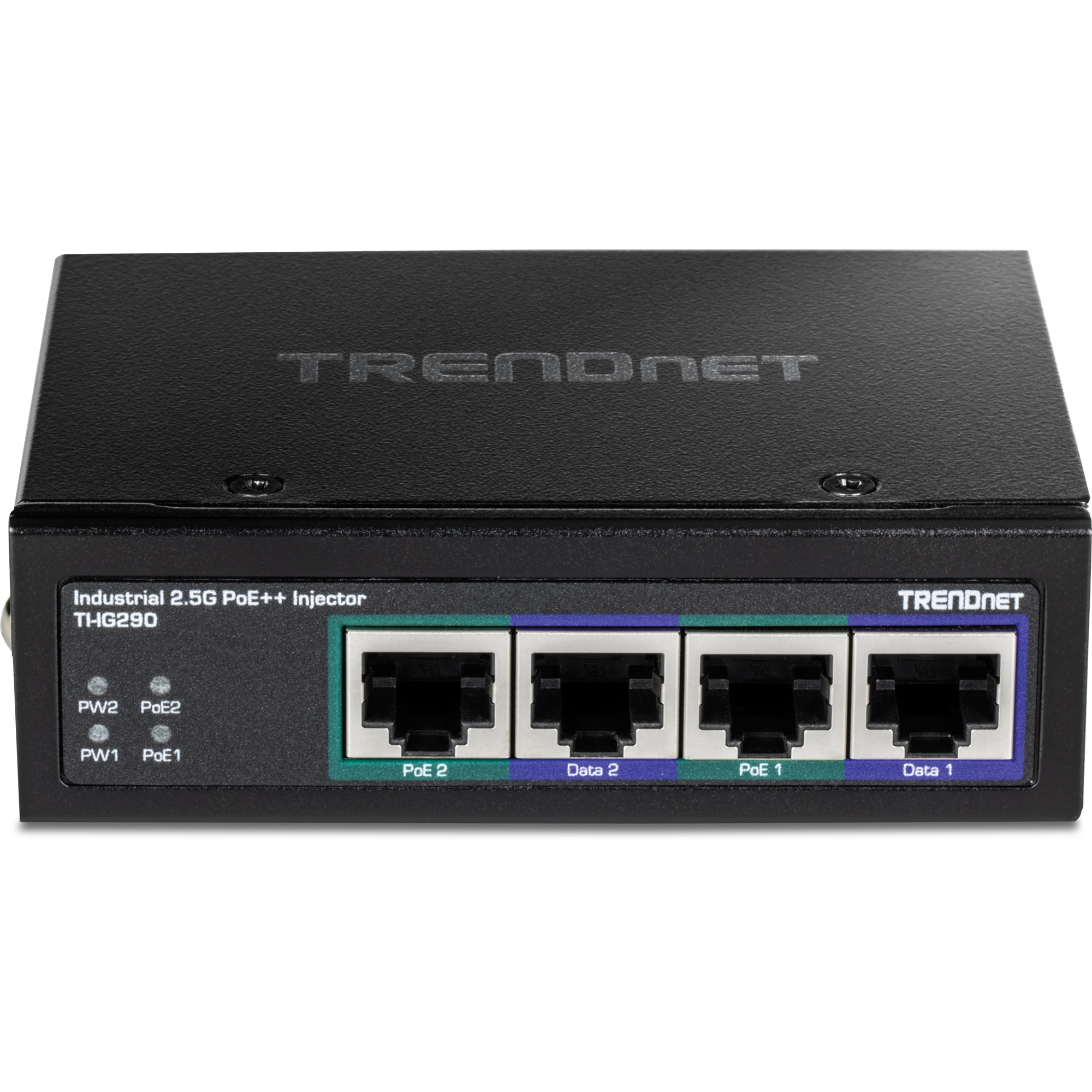

Features two high-speed 2.5G ports (data in) and two high-speed 2.5G PoE++ ports (data + PoE out).

Industrial Design

IP30 rated metal enclosure with a high degree of vibration and shock resistance, and a wide operating temperature range of -40° – 70° C (-40° – 158° F).

Features:

• 2 x 2.5G PoE++ ports (Data + PoE out)
• 2 x 2.5G ports (Data in)
• 180W PoE power budget
• Supports PoE (15.4W), PoE+ (30W), and PoE++ (95W) devices
• Uses IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt industry PoE standards for greater device interoperability
• Network a PoE device located up to 100m (328 ft.) away
• Fanless design eliminates operating noise and lowers energy consumption
• Extreme operating temperature range -40 to 75 °C (-40 to 167 °F)

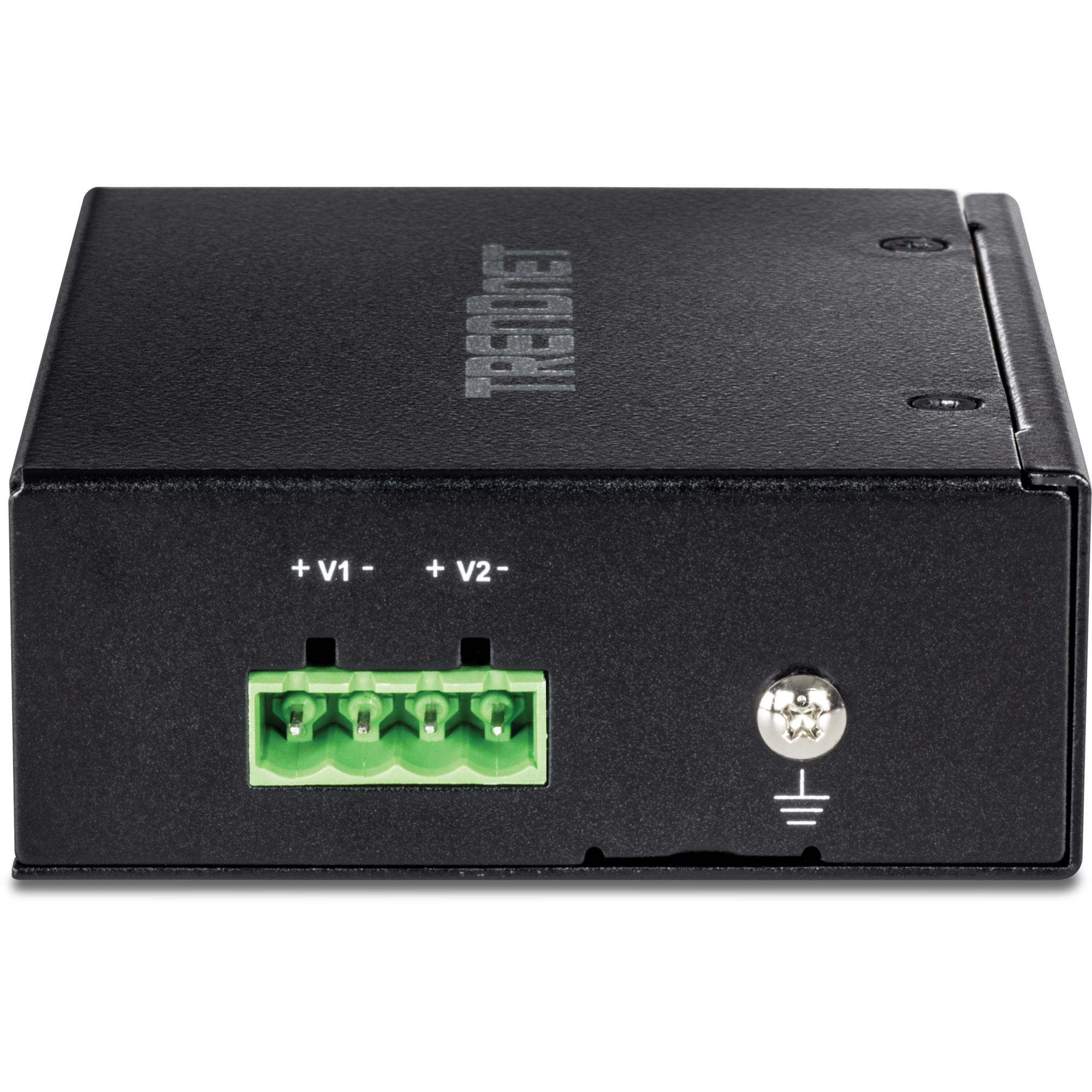

• Redundant power inputs with overload current protection

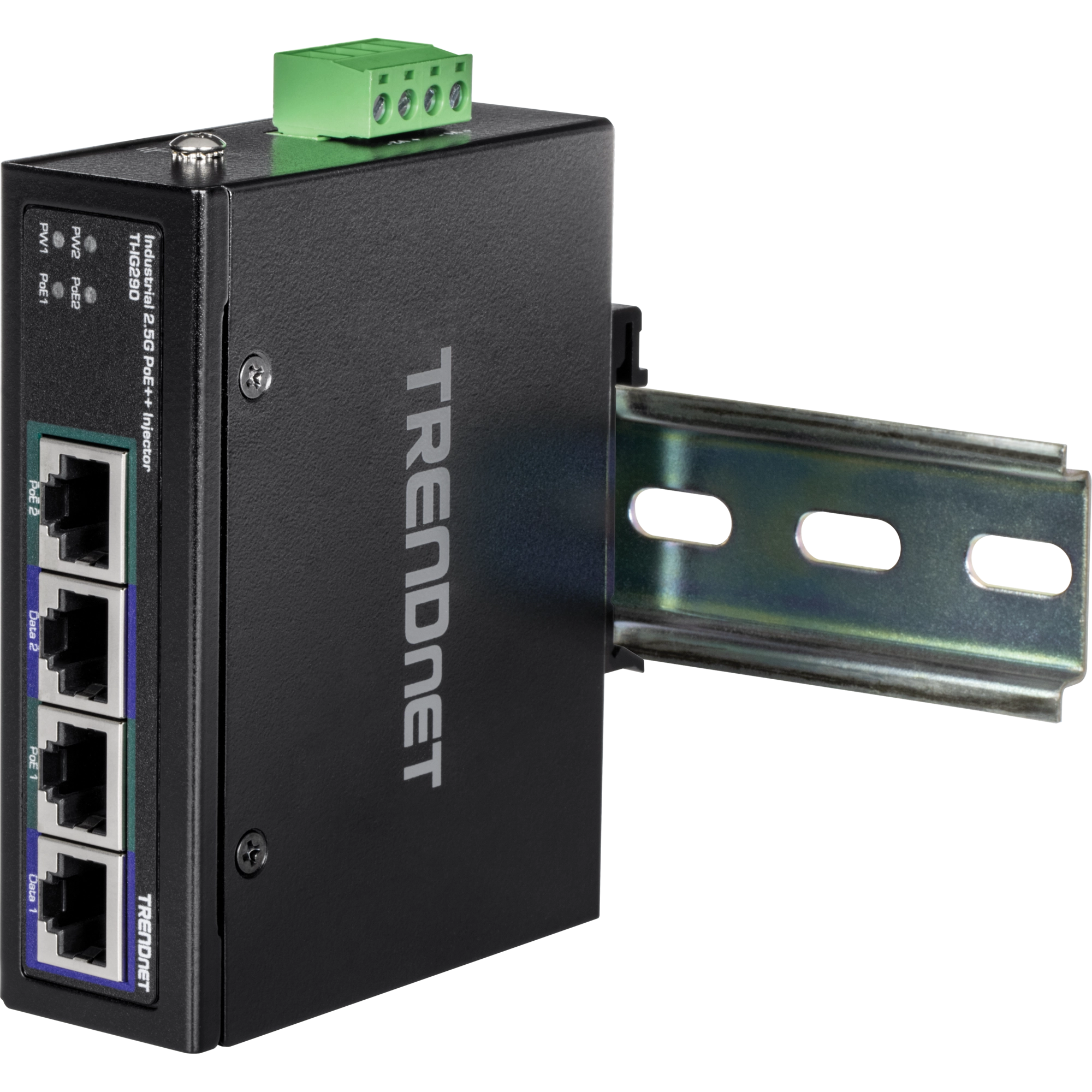

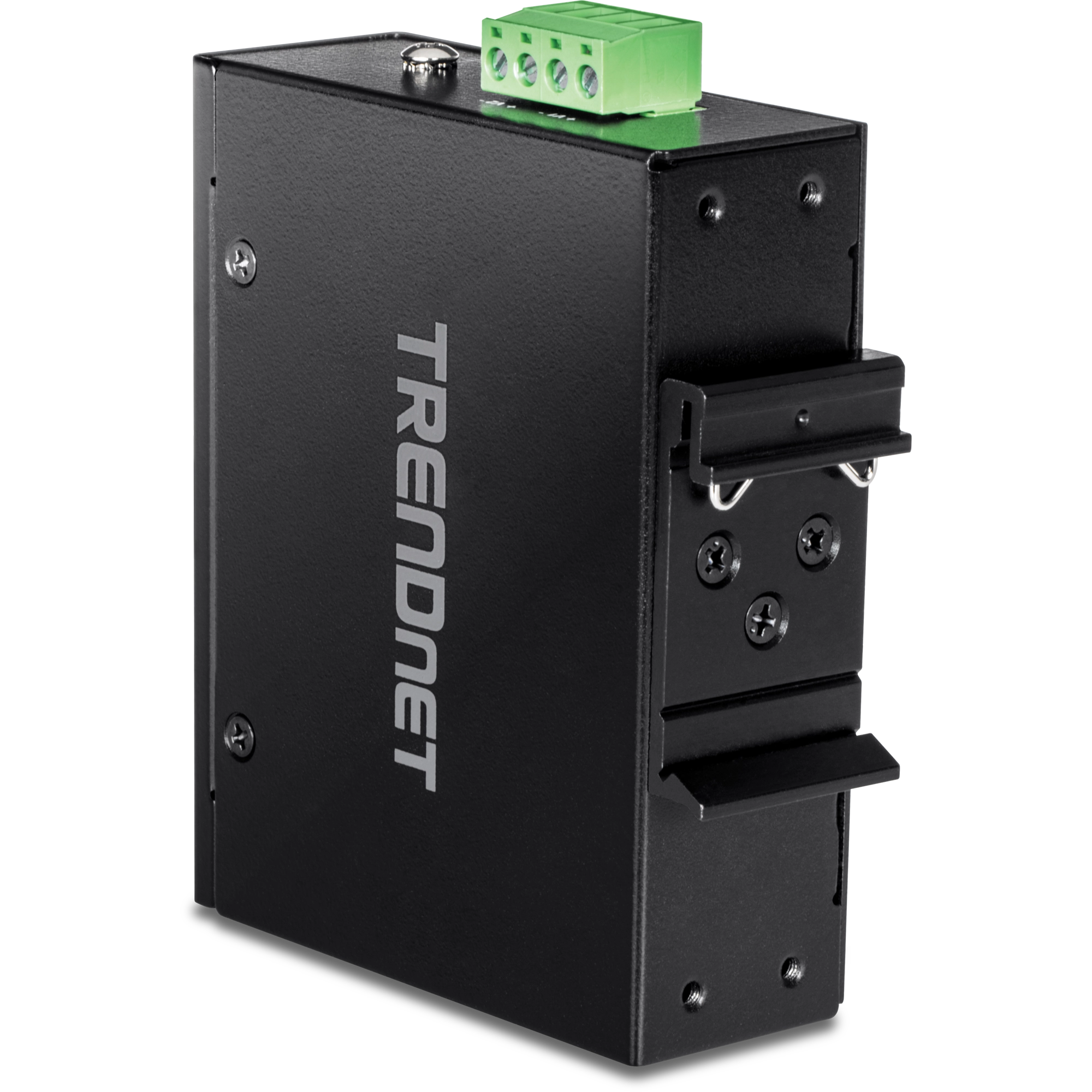

• Includes DIN-Rail mount and wall mount
• Power supply sold separately (model TI-S24048)
• NDAA / TAA compliant
