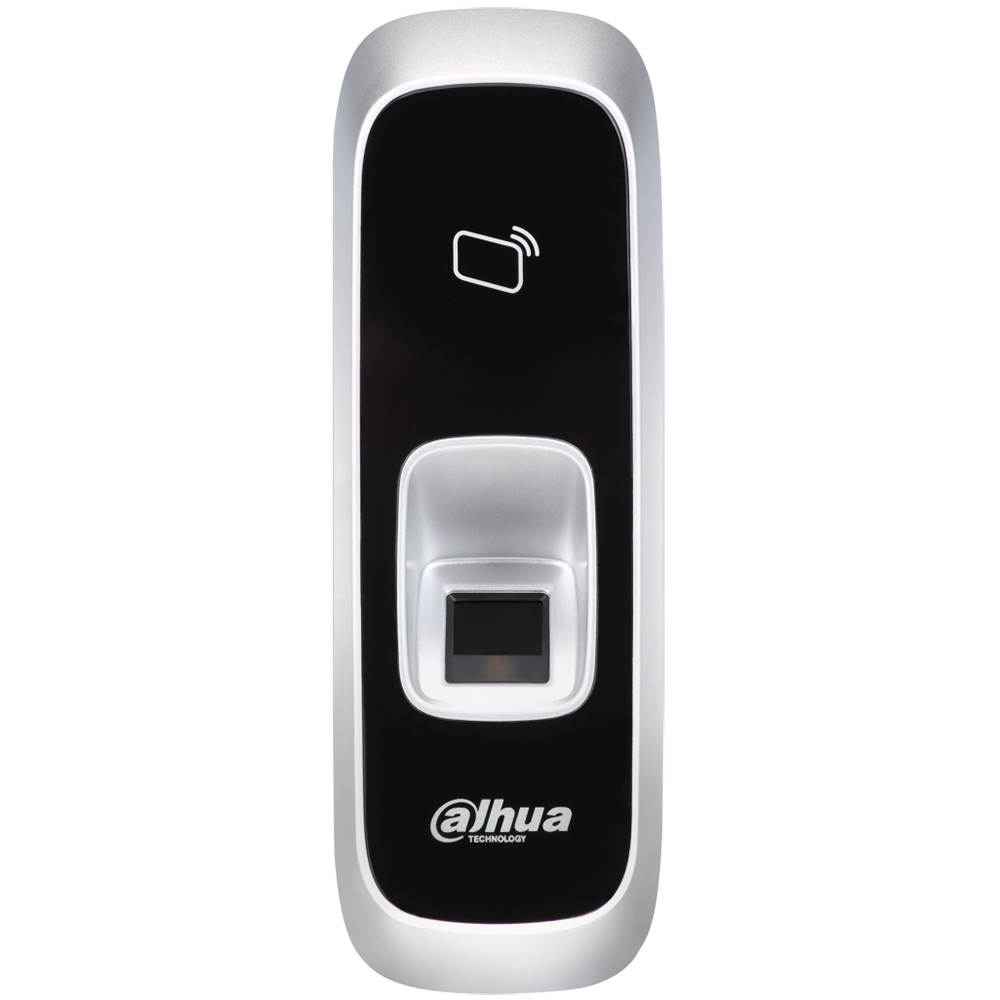

Dahua - DHI-ASR1102A(V3) - Access Fingerprint Reader
Part number:
DHI-ASR1102A(V3)
Price:
As a key part of the access control system, the DHI-ASR1102A-V3 access control card reader supports card and fingerprint unlock, and sends the information to the access controller for verification. With a slim mullion mountable design, it is applicable to a variety of applications.
Features:
- RS-485 Protocol*
- Reads MIFARE 13.56 MHz Card or Fingerprint
- Stores Up to 3,000 Fingerprints
- Watch Dog Function for Tamper Detection
- Audible and Visual Indicators
- Surface-mounted Installation
*To use the fingerprint reading function, only use RS-485 protocol.
| Specifications | |
| System | |
| Main Processor | 8-Bit |
| Unlock Mode | IC Card, Fingerprint, Combination |
| Audible Indicator | Buzzer, Tamper Alarm |
| Card Reader | |
| Format | 13.56 MHz MIFARE |
| Range | 0 cm to 5.0 cm (0 in. to 1.97 in.) |
| Response Time | 0.1 s |
| Fingerprint Reader | |
| Sensor | Optical |
| Capacity | 3,000 |
| Response Time | 1.0 s |
| Recognition Time | 1.5 s |
| Verification Mode | 1:N |
| Interface | |
| Controller Comptability | One (1) RS-485 Channe |
| Certifications | |
| Electromagnetic Compatability (EMC) | CFR 47 FCC Part 15 subpart B ANSI C63.4-2014 |
| Electrical | |
| Power Supply | 9 VDC to 15 VDC, 100mA |
| Power Consumption | ≤ 0.9 W (Standby), ≤ 1 W (Working) |
| Environmental | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 0%–95% (RH), non-condensing |
| Construction | |
| Casing | PC, Acrylic Panel |
| Product Dimensions (L × W × H) | 165.5 mm × 56.6 mm × 29 mm (6.52 in. × 2.23 in. × 1.14 in.) |
| Packaging Dimensions (L × W × H) | 192 mm × 130 mm × 56 mm (7.56 in. × 5.12 in. × 2.2 in.) |
| Net Weight | 0.25 kg (0.55 lb) |
| Gross Weight | 0.35 kg (0.77 lb) |
| Installation Method | Surface Mount |
| Accessory - IC Card | |
| Model Number | IC-S50 |
| Standard | MIFARE S50, 13.56 MHz |
| Compatability | ISO/IEC 14443A |
| Range | Approximately 10.0 cm (3.94 in.) |
| Dimensions | 86.0 mm x 54.0 mm x 0.80 mm (3.39 in. x 2.13 in. x 0.03 in.) |
| Weight | 0.006 kg (0.013 lb) |
| Manufacturer/Brand | Dahua |
| Accessory - IC Key Fob | |
| Model Number | IC-S50 |
| Standard | MIFARE S50, 13.56 MHz |
| Compatability | ISO/IEC 14443A |
| Range | Approximately 10.0 cm (3.94 in.) |
| Manufacturer/Brand | Dahua |
