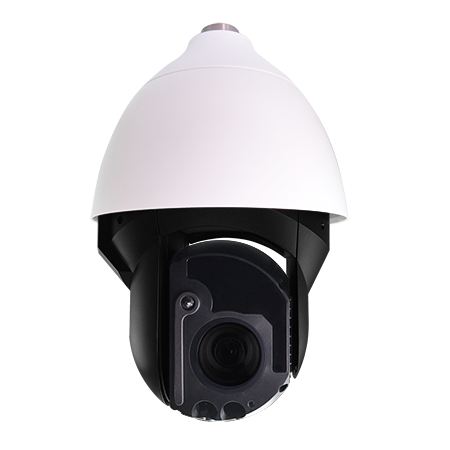

Acti - A951 - 8MP Outdoor Speed Dome, Day / Night, Adaptive IR, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics, 31x optical
Part number:
A951
Price:
8MP Outdoor Speed Dome with D/N, Adaptive IR, Extreme WDR, ELLS, 31x Zoom lens, f6.5-202mm/F1.55, P-Iris, Auto Focus with Laser module, H.265/H.264, 2D+3D DNR, Audio, MicroSD/MicroSDHC/MicroSDXC, UPoE/AC24V, IP66, DI/DO
Features:
- 8 Megapixel with 4K Ultra HD
- Day & Night with Extreme Low Light Sensitivity and Adaptive IR LED
- Extreme WDR
- Endless Pan & Tilt
- H.265 Compression
- Event trigger, response and notification
| Device | |
| Product Type | Speed Dome |
| Maximum Resolution | 8MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/1.8 " |
| Effective Pixels | 3864(H) X 2180(V) (8.42 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED |
| IR Working Distance | 100m |
| Lens |
| Focal Length | Zoom, f6.5-202mm |
| Aperture | F1.55 |
| Zoom Ratio | 31x optical |
| Iris | P-Iris |
| Focus | Auto focus on fast-moving objects with built-in Laser module |
| Focus Distance | Laser: 100m (25x) ISP: 150m (31x) |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 63.4° - 2.3° |
| Vertical Viewing Angle | 37.8° - 1.4° |
| PTZ |
| Manual Panning / Tilting Speed | 0.1° - 90°/second, 0.1° - 55°/second |
| Preset Panning / Tilting Speed | 300°/second, 300°/second |
| Panning Range | 360° endless |
| Tilting Range | -10°~100° |
| PTZ Control | PTZ Control, Speed Control, Auto scan, 256 preset points |
| Video |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 3840 x 2160 (4K Ultra HD) 30 fps at 1280 x 720 |
| Multi-Streaming | Quad streams based on video configurations |
| Wide Dynamic Range | Extreme WDR |
| Image Enhancement | Gyro-based Image Stabilizer |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | Yes |
| Text Overlay | Yes |
| Built-in Analytics | Object Based Motion Detection, Tampering Detection, Face Detection, Face Tracking, Face Recognition, ピープルカウント, People Detection, Car Detection |
| Audio |
| Audio Type | 2-way, Line-in, Line-out |
| Audio Compression | G.711, G.726, AAC, PCM |
| Network |
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x Ethernet (1000 Base-T), RJ-45 connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, IEEE 802.1X network access control |
| Event |
| Event Trigger | Video motion detection, External device through digital input, Sound detection |
| Event Response | Send E-mail Notification, Save video to local storage, Upload snapshot to FTP server, Activate external device through digital output |
| Integration |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile Q, Profile T |
| Interface |
| Local Storage | MicroSD, MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 4/2 |
| General |
| Power Source | AC 24V, UPoE |
| Power Consumption | 55 W (AC), 51 W (PoE) |
| Weight | 8900g (19.62lb) |
| Dimensions | (Ø x H): 284mm x 431mm (11.18" x 16.97") |
| Environmental Casing | Weatherproof (IP66) |
| Heater | Yes |
| Operating Temperature | -40°C ~60°C (-40°F ~ 140°F) heater on |
| Operating Humidity | 10% - 90% RH |
| Approvals | CE, FCC, LVD, IP66 |
| Material | Metal Plastic |
