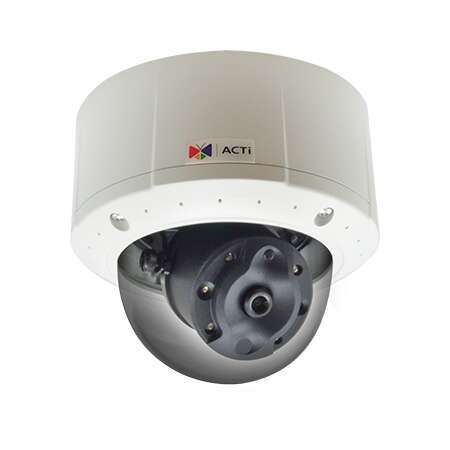

Acti - B71 - 3MP Outdoor Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens
Part number:
B71
Price:
3MP Video Analytics Outdoor Dome with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed lens, f3.6mm/F1.2 (HOV:81.7°), H.264, 1080p/60fps, 2D+3D DNR, Built-in Microphone, MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10, IEC60571, DI/DO, Built-in Analytics
Features:
- 3 Megapixel
- Day & Night with Superior Low Light Sensitivity and Adaptive IR LED
- Fixed Lens with f3.6mm/F1.2
- Extreme WDR
- Wide Angle
- Built-in Analytics
- Event trigger, response and notification
Device
| Product Type | Dome |
| Maximum Resolution | 3MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 2065(H) X 1553(V) (3.21 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.1 lux at F1.2 (30 IRE, 2400 K); B/W: 0 lux at F1.2 (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR Sensitivity Range | 700-1100nm |
| IR LED | Adaptive IR LED x 6 (850 nm) |
| IR Working Distance | 40m |
| Electronic Shutter | 1/5-1/16000 second (manual mode); 1/5-1/16000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1300 TVL |
| S/N Ratio | 56 dB |
Lens
| Focal Length | Fixed focal, f3.6mm |
| Aperture | F1.2 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 81.7° |
| Vertical Viewing Angle | 59.6° |
| Viewing Angle Adjustment | Pan: -175°-175°, Tilt: 5°-175°, Rotation: -175°-175° |
Video
| Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2048 x 1536 60 fps at 1920 x 1080 60 fps at 1280 x 720 30 fps at 800 x 600 30 fps at 640 x 480 30 fps at 320 x 240 |
| Multi-Streaming | Simultaneous triple streams based on three configurations |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (145 dB) |
| Image Enhancement | White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Object Based Motion Detection, Tampering Detection, Shock Detection, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Object Loitering Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation* |
| IVS performance | Certain algorithms may require more computing power, which may limit the number of algorithms that can be concurrently used in the camera. Please test the actual performance before using in a project. |
Audio
| Audio Type | 2-way, Built-in Microphone, Mic-in, Line-in, Line-out |
| Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1 x RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Video Analytics
| Analysis Source Type | Video |
| Metadata Accuracy | Standard |
Event
| Event Trigger | Video motion detection (10 included and excluded polygons regions), External device through digital input, Sound detection, Intelligent event detection, |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Save video or snapshot to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output |
Integration
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile Q |
| GB28181 Compliant | Yes |
| Web Browser | IE 11 |
| Auto Firmware Upgrade | Yes |
Interface
| Local Storage | MicroSDHC, MicroSDXC memory card slot (card not included) |
| Digital Input/Output | 2/2 |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 11.1 W (PoE, IR on), 10.68 W (DC, IR on) |
| Weight | 1455g (3.208lb) |
| Environmental Casing | Weatherproof (IP68), Vandal proof (IK10), Vibration proof (IEC60571), Built-in dehumidifier |
| Mount Type | Surface, Wall Mount, Pendant, Flush, Corner Mount, Pole Mount, Gang Box |
| Dehumidifier | Yes |
| Starting Temperature | -40°C ~ 55°C (-40°F ~ 131°F) |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) |
