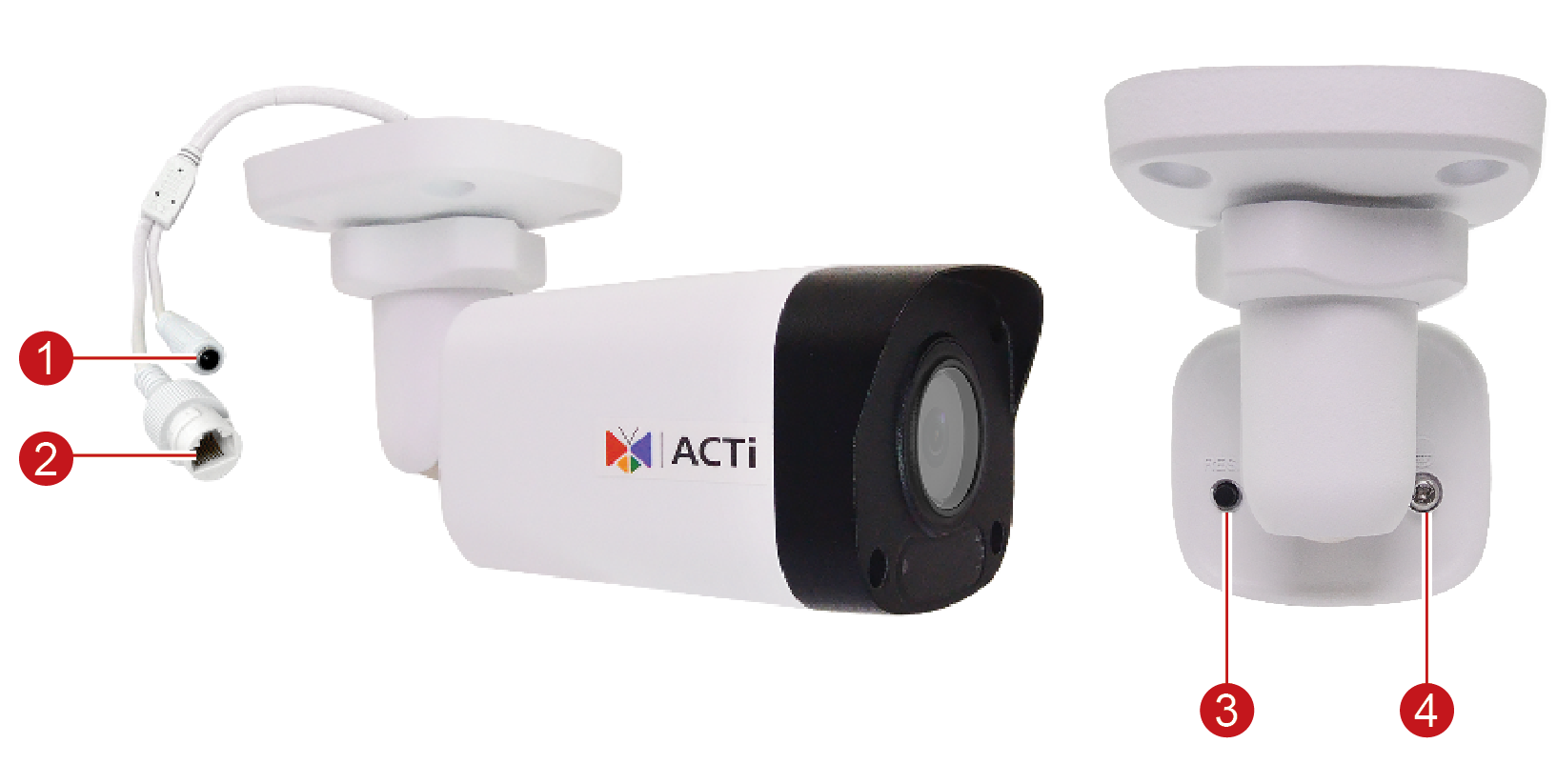

Acti - Z34 - 4MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Part number:
Z34
Price:
4MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Features:
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and
- Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Superior WDR
- H.265 Compression
- Wide Angle
- Event trigger, response and notification
| Product Type | Mini Bullet |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Effective Pixels | 2688(H) X 1520(V) (4.09 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.03 lux; B/W: 0 lux (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED x 1 (850 nm) |
| IR Working Distance | 40m (1.0 lux) |
| Electronic Shutter | 1-1/100000 second (manual mode); 1-1/100000 second (auto mode) |
| S/N Ratio | 52 dB |
Lens
| Aperture | F2.0 |
| Iris | Fixed iris |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 99.8° |
| Vertical Viewing Angle | 56° |
Video
| Compression | H.265, H.264 (Baseline/ Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 20 fps at 2592 x 1520 20 fps at 2048 x 1520 20 fps at 1920 x 1080 20 fps at 1280 x 720 20 fps at 640 x 360 20 fps at 704 x 576 20 fps at 704 x 288 20 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection, Intrusion Detection (Forbidden Area Detection)* |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror |
Network
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, QoS, SSL/TLS |
| Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level |
Event
| Event Trigger | Video motion detection (4 regions), Intelligent event detection. |
Event Response Integration | E-mail notification with snapshots, Upload snapshot to FTP server |
| ONVIF Compliant | Yes, Profile S, Profile T |
Web Browser Interface | IE 11 |
| Operating Button | Reset Button |
| General | |
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6.4 W (PoE) |
| Weight | 450g (0.99lb) |
| Dimensions | (W x H x D): 62.67mm x 62.48mm x 160.65mm (2.5" x 2.5" x 6.3") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Approvals | CE, FCC, EAC, IP68, NEMA 4X, IK10 (metal casing) |
| Material | Camera with Integrated Bracket: Metal Sunshield: Plastic |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
