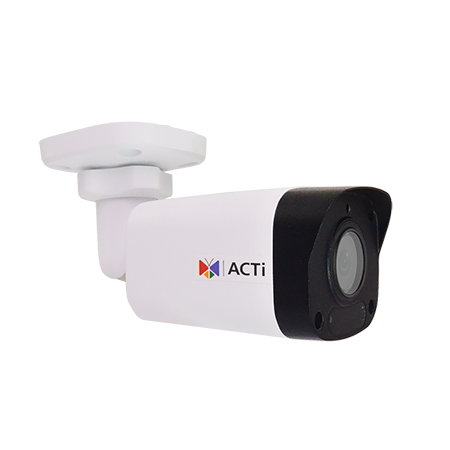

Acti - Z36 - 4MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Part number:
Z36
Price:
4MP Mini Bullet with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens
Features:
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and
- Adaptive IR LED
- Fixed Lens with f2.8mm/F2.0
- Superior WDR
- H.265 Compression
- Wide Angle
- Event trigger, response and notification
| Product Type | Mini Bullet |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/3 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.01 lux at F2.0 (AGC on); B/W: 0 lux at F2.0 (IR LED on) |
| Mechanical IR Cut Filter | Yes |
| IR LED | Adaptive IR LED (850 nm) |
| IR Working Distance | 40m |
| Electronic Shutter | 1-1/100000 second (auto mode) |
| S/N Ratio | 56 dB |
Lens
| Iris | Fixed iris |
| Focus | Fixed focus |
| Horizontal Viewing Angle | 94.7° |
| Vertical Viewing Angle | 52.8° |
| Viewing Angle Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
Video
| Compression | H.265, H.264 (Baseline/ Main profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520 30 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 704 x 576 30 fps at 352 x 288 |
| Multi-Streaming | Simultaneous triple streams |
| Wide Dynamic Range | Superior WDR (120 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control, Defogging |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection, Intrusion Detection (Forbidden Area Detection) |
| Image Orientation | Flip, Mirror |
Audio
| Audio Type | 1-way, Built-in Microphone |
Audio Compression Network | G.711 |
| Network Protocol & Service | IPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, SSL |
Ethernet Port Event | 1 x Ethernet (10/100 Base-T), RJ-45 connector |
| Event Trigger | Video motion detection (4 regions), Sound detection |
Event Response Integration | E-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage |
| ONVIF Compliant | Yes, Profile S, Profile G |
| Interface | |
| Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB) |
Operating Button No
General
| Power Source | DC 12V, PoE Class 2 (IEEE802.3af) |
| Power Consumption | 6.4 W (PoE) |
| Weight | 450g (0.99lb) |
| Dimensions | (L x W x H):165mm x 63.1mm x 62.5mm (6.5" x 2.5" x 2.5") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Operating Temperature | -30°C ~ 50°C (-22°F ~ 122°F) |
| Operating Humidity | 10% - 95% RH |
| Approvals | CE Class B, FCC Class B, IP68, IK10 (metal casing) |
| Warranty | 2 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
