Alarm Lock - AL-IME2 - 2Nd Gen Ethernet Gateway
Part number:
AL-IME2
Price:

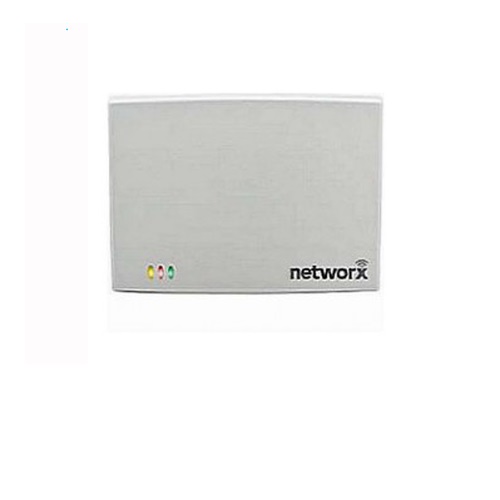

The Trilogy Networx AL Generation Gateway, interfaces Networx locks with a PC network via a hardwire Ethernet connection. It is very similar in function to the original hardwired Networx Gateway Modules, but is enhanced with additional extended potential range, supporting up to seven (7) Expanders (model AL-IME2-EXP Expanders). Each Expander can extend the AL-IME2 Gateway’s coverage area by approximately 100 feet. Also both Gen. 2 Gateways and matching Expanders have a new modern styling, and three LED indicators, blending into any décor.

Dimensions4.5 (H) x 6.0 (W) x 1.94 (D) in.
EnvironmentalOperating Temperature: -4˚ to 140˚F (-20˚ to 60˚C)
Storage Temperature Range-40° to 185°F (-40° to 85°C)
Network Interface100Base-TX (Using RJ-45 Jack), 10Base-T, Ethernet
Wireless Protocol900MHz, DHCP, TCP/IP, UDP/IP
Power5 – 6 volts AC
Current650 mA
ManufacturerAlarm Lock
BrandTrilogy Networx
Weight0.5 lbs
Name
Description
Size
Downloads
File
Datasheet
1mb
