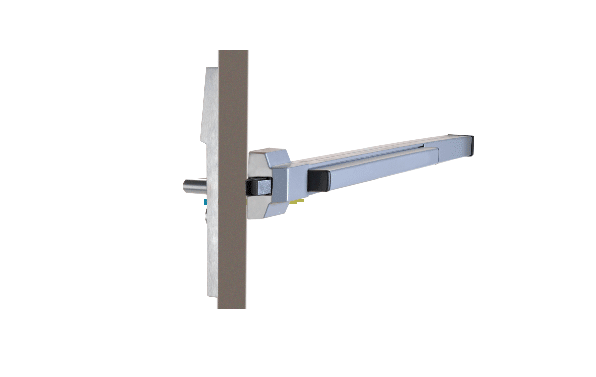

Alarm Lock - DL1300ETNW/26D - Networx Narrow Stile Exit Trim
Part number:
DL1300ETNW/26D
Price:
Alarm Lock's new Trilogy narrow stile exit device trim locks
- For use with Jackson, Dor-O-Matic, Von Duprin, Dorma, Arrow, DCI& Corbin panic ‡NOTE: Must use P/DL1350NWET or P/DL1325NWET with Dor-O-Matic, 2090, Jackson 1095 & Dorma 5300 as they require more than 85˚ rotation. Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob; must purchase separate tailpeice assembly
| Model & Feature | DL1300ETNW/26D |
| Lock Type | Narrow stile (also PDL1300NWET series for use w/ exit device) |
| User Codes | 5000 |
| Code Length | 3-6 digits |
| Programming | Keypad / PC |
| Vandal-Proof Keypad | All metal, 12 button |
| Trim w/Rugged Clutch | Straight or curved lever |
| Audit Trail Events | 35000 |
| Scheduled Events | 500 |
| Reader/Credential Support | PDL1300NW for HID Prox |
| Lockdown (Privacy) | Global lockdown via lock, server or optional keyfob |
Weather-Proof -31 to 151˚ F | Standard |
| Handing | Non-handed, fully field reversible |
| Door Thickness | 1-3/4” |
| Backset | 31/32, 1-1/8 & 1-1/2”; Stile Thickness 1-3/4” |
| Cylinder | 1-1/4” mortise cylinder, supplied; for Best, Falcon, Arrow prep cam and housing available (cylinder not incldd.) |
| Relay Options | No |
| Battery/Cycles Typical | 4AA; 100,000 or up to 3 - 4 years |
| Ratings | 3 Hour fire rated UL |
| Architectural Finishes | US26D, US10B |
