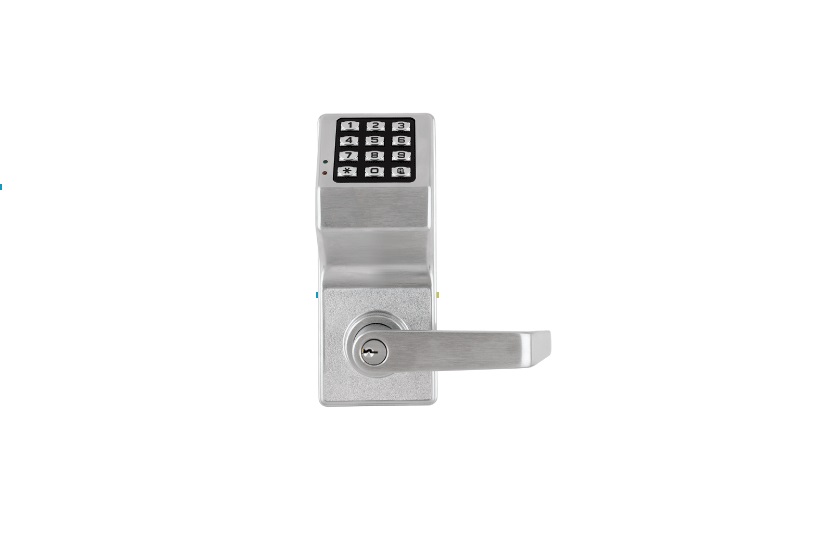

Alarm Lock - DL2775IC/26D-S - TRILOGY LOCKSET SCHLAGE IC
Part number:
DL2775IC/26D-S
Price:

Trilogy T2 DL2700: Trilogy standalone digital cylindrical keyless door locks. Our most popular keypad door lock – now with more codes and power!



  • More codes: up to 100 3-6 digit codes: 1 master, 10 managers, 90 basic users, 3 one-time service codes
  • 5AA battery operated; 5 years battery life or 200,000 cycles, typ.
  • For outdoors, specify WP Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)



OPERATION: Clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress



DOOR THICKNESS: 1 5/8" to 1 7/8." Other thicknesses.Please consult Alarm Lock



BACKSET: 2 3/4" Standard. 2 3/8" backset also available



KEYPAD: All metal, 12 button programmable for multi-level access functions including group or individual user codes, master and management codes, passage and emergency or service code, lockout and remote override capability and allowable entry time from 5 to 20 se



STANDARD KEY OVERRIDE CYLINDERS: Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/ Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders



INTERCHANGEABLE CORE MODELS: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included



LATCHBOLT: UL Listed, fire rated, 3 hours, 1/2” throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors



STRIKE: 1 1/8” x 2 3/4” T strike & 1 1/4” x 4 7/8” ASA strike included. With screws for wood or metal jambs



LATCH FRONT: 1 1/8” x 2 1/4” wrought brass or stainless steel



HANDING: Non-handed



FINISHES: US3 polished brass, US26D satin chrome, 10B Duronodic



POWER: 5 AA alkaline batteries are now rated at 200,000 cycles, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor



DOOR PREP: Standard ANSI 161 Series Prep, modified by adding additional through-bolt holes



COMPLIANCES: Grade 1, heavy duty cylindrical lockset, UL listed and FCC certified. ADA compliant leversets



Features:

  • Grade 1 Durability: Dependable lockset with rugged clutch mechanism, plus vandal-proof all metal keypad.
  • Multi-level user codes: Master, 10 managers, 90 users, 3 service codes
  • Up to 100 different user codes (3-6 digits)
  • 100% keypad programmable with a fingertip
  • Individual, group or total user lockout codes
  • Easy passage mode by manager and/or master
  • Easy to install in about an hour, retrofits cylindrical knobsets and digital locks using slightly modified ANSI 161 Series Prep
  • Standalone battery operated; 5 AA batteries rated at 200,000 cycles
  • Non-handed for easy installation and versatility
  • 2-wire remote override
  • Visual and audible entry indicators
  • WP Models for weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C)
Model & FeatureDL2775IC/26D-S
Lock TypeCylindrical
User Codes**100 +3 +1
Code Length3-6 digits
ProgrammingKeypad only
Vandal-Proof Keypad

All metal, 12 button

For Double-Sided Keypads: Model DL5200

Trim w/Rugged ClutchStraight or curved lever
Dimensions, Outside3-1/4”W x 8”H, 6-3/8” at lever
Privacy/Lockout
Special Model OrderingOption - Double Sided Keypad Access, DL5200

Weather-Proof

-31 to 151˚ F

WP version
HandingNonhanded
Door Thickness1-5/8 to 1-7/8” (others on request.)
Backset2-3/4” (included); 2-3/8”option.
CylinderLarge key-in-knob, incld -or- IC Prep for Best/Falcon/Arrow (w/o cyld.)
Special Order CylindersYale, Medeco, Sargent, Corbin/ Russwin, Schlage
Relay Optionsyes
Battery/Cycles Typical5AA; 200000 or up to 5 years
RatingsBHMA Grade 1 Lockset; 3hr. Fire Rated UL
Architectural FinishesUS26D, US3, 10B
