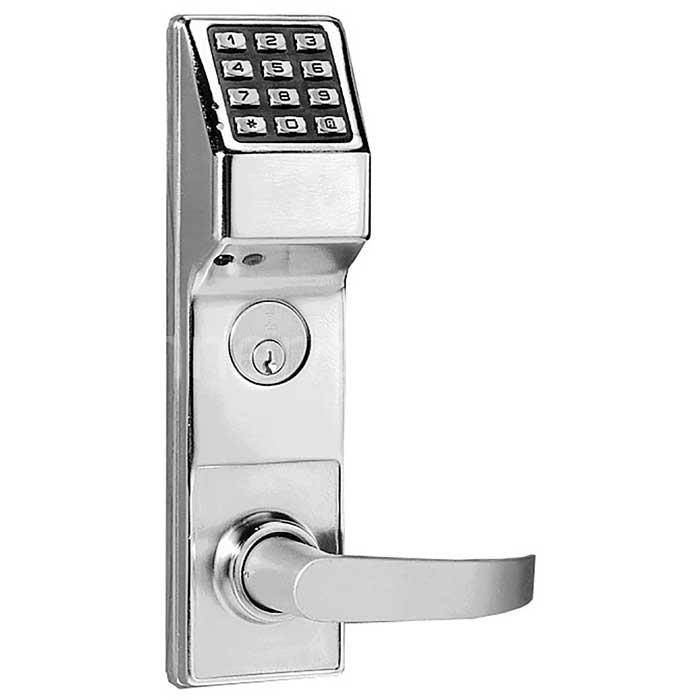

Alarm Lock - DL3500CRL/10B - Trilogy Lockset Classrm Lefthd
Part number:
DL3500CRL/10B
Price:
Trilogy high security mortise locks with and without prox. Trilogy Lockset Classrm Lefthd
Features:
- 300 User codes: Master, manager, supervisor & basic users
- Fingertip or Windows PC-programmable
- Real time clock enables up to 500 scheduled events and holiday schedules
- 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
- Long-life battery pak for 80,000 cycles, typ. and low-battery alert
- Choose either classroom or deadbolt versions and left or right handing (If reverse hand is required, lock is field reversible.)
- 1 3/8” (3.5 cm) mortise cylinder supplied card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
- 40,000 event audit trail log
- 500 scheduled events, e.g., lock or unlock
- PC programming/reporting
- Quick passage mode (without being in program mode)
- Program data transferred to lock via AL-PCI2 or AL-DTMIII
- 5AA battery-pak operated; 75,000 cycles, typ.
- 5 Architectural finishes
- Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
Specifications:
Door Thickness:
- Fits 1 5/8" to 1 7/8"
Backset:
- 2 3/4" standard
Strike:
- 1 1/4" x 4 7/8" strike included
Handing:
- Specify RH or LH when ordering. Lock is reversible in the field.
Power:
- 5 AA alkaline batteries (included)
Keypad:
- All metal, 12 button. All functions programmed through keypad
Door Prep:
- Standard ANSI A115 mortise prep, modified by adding additional through-bolt holes
Compliances:
- Steelcase lock body meets BHMA specifications for Grade 1 locks UL Listend 10C Positive Pressure Specification. FCC Certified ADA compliant levers
Functions:
- Classroom function features stainless steel latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt function features stainless steel deadbolt with 1" (2.55cm) projection, latch bolt with 3/4" (1.91cm) projection and deadlocking latch. Deadbolt may be projected from key cylinder from outside door or turn-piece from inside door.
Cylinder:
- 1 3/8" (3.5cm) mortise cylinder supplied. Will accept 1 3/8" to 1 1/2" (3.5 - 3.8cm) mortise cylinder.
Cams:
- Classroom function supplied with straight cam. Deadbolt function supplied with cloverleaf cam. Cams for other manufacturer's cylinder are available.
Finishes:
- 26D - Satin Chrome
- 10B - Oil Rubbed Dark Bronze
