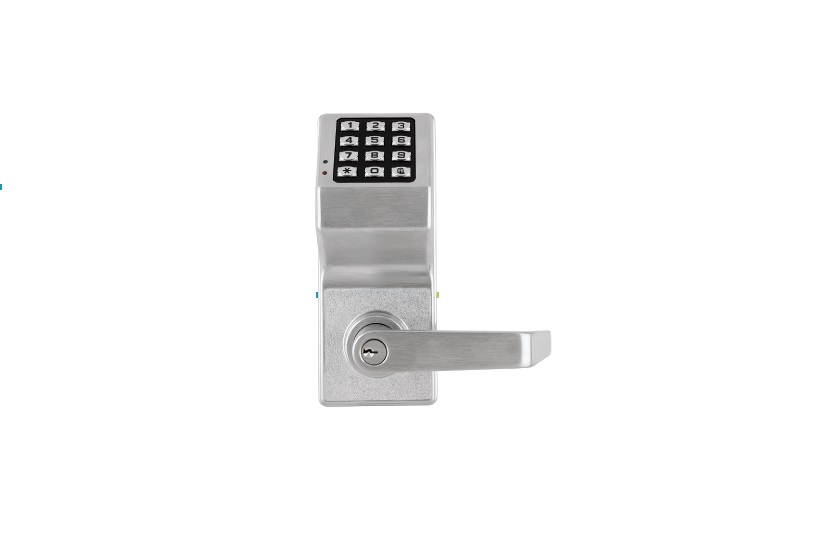

Alarm Lock - ETDL27R1G26DV99 - DL27 ET STR STD VON DPRN V99
Part number:
ETDL27R1G26DV99
Price:
2700 Series – Trusted By More Leading Retailers, Firms, Schools, Hospitals and Airports.
Features:
- Grade 1 Durability - BHMA Grade 1 lockset with rugged clutch plus vandal-proof all metal keypad
- 100% fingertip programmable - easy installation in less than an hour
- Supports standard and IC core prep cylinders
- Up to 100 codes + 3 service codes + 1 master**
- Multi-level user capability: Master, manager, user, service codes
- Individual, group or total user lockout codes
- Passage mode • 2-wire remote override or key bypass capability
- Weatherproof models for exterior use -31 to 151˚F (-35 to 66˚C)
- Long-life battery operated
| Lock Type | Exit Trim for use w/ Panic Device |
| User Codes** | 100 +3 +1 |
| Code Length | 3-6 digits |
| Programming | Keypad |
| Vandal-Proof Keypad | All metal 12-button |
| Trim w/Rugged Clutch | Straight or curved lever |
| Dimensions, Outside | 3”W x 11-1/16”H, 6-3/16” at lever |
| Privacy/Lockout | |
| Special Model Ordering | |
Weather-Proof -31 to 151˚ F | Standard |
| Handing | Nonhanded |
| Door Thickness | 1-5/8 - 1-7/8” (others on request) |
| Backset | |
| Cylinder | Generic Rim cylinder, supplied. Other mfrs. - Cylinder Adapters must be ordered separately. |
| Special Order Cylinders | |
| Relay Options | yes |
| Battery/Cycles Typical | 5AA; 60000 |
| Ratings | |
| Architectural Finishes | US26D, US3, 10B |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Extended Trilogy T2 Family Datasheet
0.5mb
