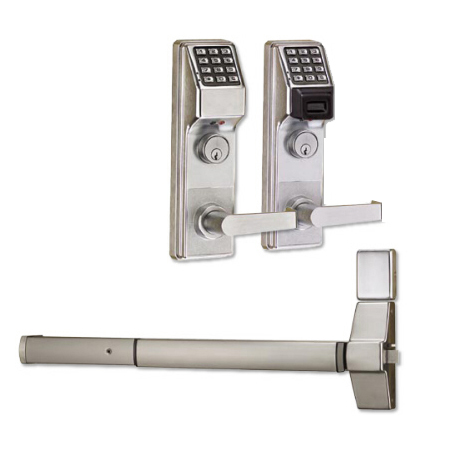

Alarm Lock - ETPDLS1G/10BC50 - Extrm Prox Str Std Corbin
Part number:
ETPDLS1G/10BC50
Price:
Add Trilogy convenience, programming, flexibility and audit trail to panic exit mortise locks from most major manufacturers
Features:
- Clutch mechanism insures long life and durability
- Fingertip and/or Windows Programmable
- 2000 User Codes: Master, manager, supervisor and users
- Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
- Up to 500 Lock/Unlock Schedules (with Time Zone Support)
- Rugged 12-Button Metal Keypad
- Non-Handed; Fully Field Reversible
- Adaptable to most major manufacturers of standard RIM and IC RIM Cylinders
- Battery operated; uses 5 AA batteries
| Model & Feature | ETDLN, ETPDN |
| Lock Type | For use with exit device |
| User Codes | 5000 |
| Code Length | 3-6 digits |
| Programming | Keypad / PC |
| Vandal-Proof Keypad | All metal, 12 button |
| Trim w/Rugged Clutch | Straight or curved lever |
| Audit Trail Events | 40000 |
| Scheduled Events | 500 |
| Reader/Credential Support | ETPDLN for HID Prox; ETPDNI for iClass support |
| Lockdown (Privacy) | Global lockdown via lock, server or optional keyfob |
| Door Position Switch † | |
| Request to Exit † | ETPDN-RX; ETPDNI-RX with iClass support |
Weather-Proof -31 to 151˚ F | Standard |
| Handing | Non-handed, fully field reversible |
| Door Thickness | 1-5/8 to 1-7/8” (others on request) |
| Backset | |
| Cylinder | Generic rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately |
| Special Order Cylinders | |
| Relay Options | Yes |
| Battery/Cycles Typical | 4 C cells; 500,000 or up to 5 years |
| Ratings | 3 Hour fire rated UL |
| Architectural Finishes | US26D, US10B |
