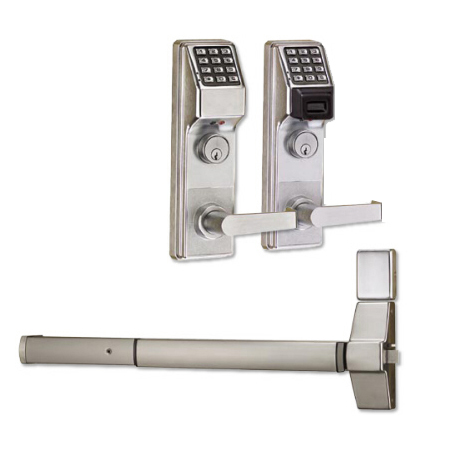

Alarm Lock - ETPLS1G/26DV99 - PROX ONLY,STR LVR,SCHL C,F/VON
Part number:
ETPLS1G/26DV99
Price:

Add Trilogy convenience, programming, flexibility and audit trail to panic exit mortise locks from most major manufacturers



Features:

  • In an hour, add dependable wireless access control, one door at a time—easily retrofit standard knobsets
  • Support 100 to 2000 PIN codes (3-5 or 6 digits); some with built-in HID prox readers for use with access ID cards/fobs
  • Multi-level user codes & one-time service codes. Free passage, group- or total lock-out modes, too
  • All are fingertip programmable at vandalproof all-metal keypad
  • PC programmable models also feature printable audit trail, auto-lock/unlock scheduling saving guard/manpower costs
  • Long-life battery operation (cylindrical models use 5AA off-the-shelf batteries); low battery alert
  • Key override, standard core (supplied) or interchangeable core prep
  • Non-handed cylindrical models
  • Programmable relay functions
  • Durable BHMA Grade 1 Lockset
  • Weatherproof models -31˚ to +151˚F (-35˚ to +66˚C)
  • Curved Regal handle option
  • 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic)
Lock TypeFor use with exit device
User Codes5000
Code Length3-6 digits
ProgrammingKeypad / PC
Vandal-Proof KeypadAll metal, 12 button
Trim w/Rugged ClutchStraight or curved lever
Audit Trail Events40000
Scheduled Events500
Reader/Credential Support

ETPDLN for HID Prox; ETPDNI

for iClass support

Lockdown (Privacy)Global lockdown via lock, server or optional keyfob
Request to Exit †

ETPDN-RX; ETPDNI-RX with

iClass support

Weather-Proof

-31 to 151˚ F

Standard
HandingNon-handed, fully field reversible
Door Thickness1-5/8 to 1-7/8” (others on request)
CylinderGeneric rim cylinder supplied. For other manufacturers’ cylinders, adapters can be ordered separately
Relay OptionsYes
Battery/Cycles Typical4 C cells; 500,000 or up to 5 years
Ratings3 Hour fire rated UL
Architectural FinishesUS26D, US10B
Name
Description
Size
Downloads
File
Datasheet
1mb
