Alarm Lock - NETHIDNSPAK - Networx Panel W/Cicr2364P
Part number:
NETHIDNSPAK
Price:

NETWORX PANEL W/ CICR2364P



Features:

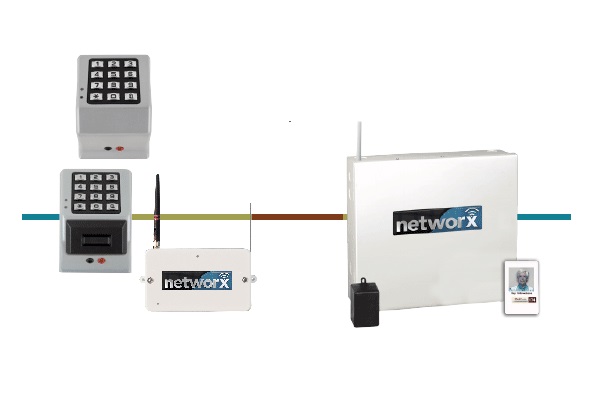

  • Networx NetPanel supports up to 2 Networx wireless keypads and/or Wiegand-output readers and communicates wirelessly via Ethernet or 802.11B/G for a comprehensive wireless networked door access control system, eliminating door-to-door programming and audit trail retrieval and providing all standalone Trilogy lock functionality plus new network-wide global emergency lockdown/unlock commands
  • Networx Keypads support up to 5000 users with 3-6 digit numeric PIN codes and NETPDK-Series also support prox ID card users (virtually all HID format proximity technology ID cards, fobs, credentials.)
  • System-wide free-passage enable or disable, can be activated from the keypad or the Networx PC
  • On demand, in seconds, wirelessly change keypad users, schedules, features or retrieve 35,000 events from any networked PC.
  • Ideal for use with mag locks, strikes and electrified exit /panic devices (EL-devices/electrified latch retraction devices.)
  • Free Alarm Lock DL-WINDOWS software doesn't require a dedicated computer or a special computer network or costly server software licenses,
  • simply runs as a secure Microsoft Windows-based application, on any computer system (as basic as desktop or laptop PC), a wired or wireless router, and a gateway module or on a an internal LAN with static IP address (recommended). MS XP and Vista supported (v4.01 or higher).
  • Up to 2000 NetPanels can be used per account to further expand system capabilities.
Housing Dimensions (H x W x D)10.5 x 8.5 x 3 in.(26.6 x 21.6 x 7.6 cm)
Operating Temperature14-120F (10-49C)
Input Power16.5VAC via Class 2 Plug-In 50VATransformer(supplied model TRF-14)
Maximum Lock Power Output Current1.5A@12VDC
Maximum Wiegand Power Output Current250mA @ 12VDC
Maximum Wiegand Red and Green LED Current20mA each output
Maximum Sounder Current100mA
Maximum Keypad Power Output Current200mA@ 12VDC
Primary and Secondary RelaysSPDT Form C,N/O, N/C 8A @ 30VAC or VDC
Supplied Backup BatterySealed Lead Acid 4AH
Battery Backup TimeApproximately 2 hours at full load
