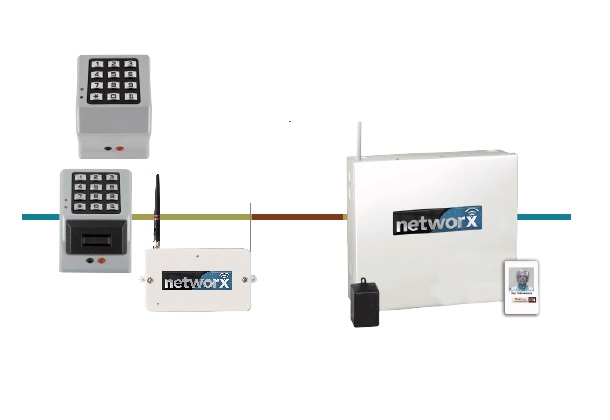

Introducing Trilogy Networx Wireless Keypads with NetPanel 2-Door Access Controller

Based on Trilogy, the #1 electronic standalone access locks, NetworxLocking Products are networked to save staff labor, eliminating door-todoor programming and audit trail retrieval, by communicating wirelessly via Ethernet or 802.11B/G, all while providing the ultra dependability, functionality & long battery life, original Trilogys are known for. The expanded Networx line, for every type of door, combines to provide a quick, easy, economical access system for up to 2000 doors and 5000 users, with advanced features & functions, e.g., automatic schedules, event logs. But, with no wires to run, and no access panels or power supplies to buy or install, it can be a great time and budget saver for buildings, campuses or office suites. At its simplest, it’s one Grade 1 wireless lock per door, installed in about an hour, all communicating to a single Gateway (your choice of gateways controls up to 63 locks), networked to any non-dedicated Windowsbased PC. In addition to Wireless Trilogy Networx’ unsurpassed battery-life, exceeding 5 years, they feature new network-wide capabilities, executed from any lock or the network’s PC, including emergency priority global lockdown deployed in seconds, and you can activate (non-priority) system-wide freepassage or locking modes from the PC. For existing Trilogy installations, original standalone and new Trilogy Networx locks can seamlessly share one common database hosted on free Alarm Lock DL-WINDOWS software. For real-time access applications, Networx Locks offer enterprise network integration with several leading platforms.



Features:

  • 5000 users with 3-6 digit PINs or HID ID cards
  • Save manpower - Bidirectional 802.11/ethernet network communications updates, users, time-schedules and audit trail queries — without ever going to the keypads
  • Versatile for indoors and outside; ideal for education, healthcare, government, airports, courts & retail
  • Familiar Trilogy operation, programming and ruggedness
  • NetPanel Controller supports 2 Networx keypads and/or 2 Wiegand output readers /devices
  • Key features: Global lockdown and passage from keypad or PC, schedules, 35K event log, request-to-exit, door ajar/kick-in, remote release options.
Lock TypeKeypad
User Codes5000
Code Length3-6 digits
ProgrammingKeypad / PC
Vandal-Proof KeypadAll metal 12-button
Audit Trail Events35000
Scheduled Events500
Reader/Credential SupportNETPDK for HID Prox
Lockdown (Privacy)Global lockdown via lock, server or optional keyfob

Weather-Proof

-31 to 151˚ F

Standard
Relay OptionsYes
Battery/Cycles Typical4 C cells; 500,000 or up to 5 years
Architectural FinishesUS26D, US10B
