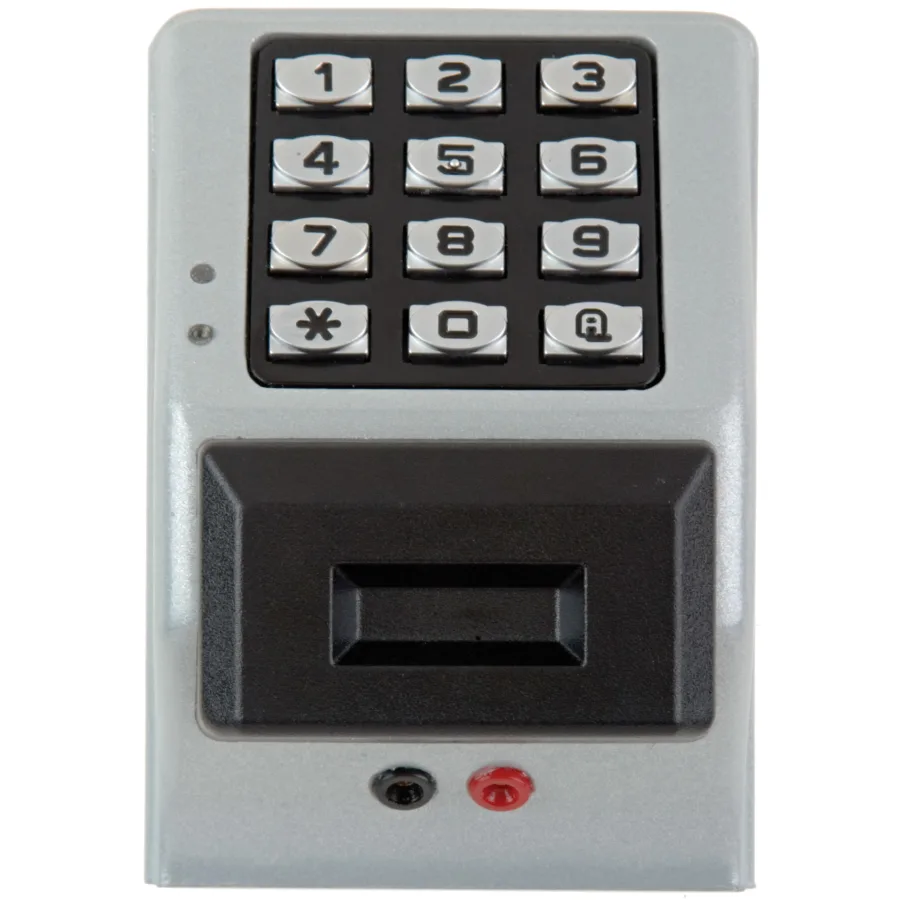

Trilogy® Weatherproof Keypads: 12/24VAC/DC digital access keypads with PC programming & audit trail

Features:

• 2000 PIN user codes, multilevel security
• Ideal for use with 12V or 24V (AC or DC) electric door strikes, mag locks or Alarm Lock Remote Release Mag Lock Kit (adjacent page)
• Wall mount or single gang box
• 2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by real time schedule
• Vandal-resistant, all metal 12-button keypad
• Keypad or PC programmable
• 40,000 Event audit trail report/print to PC or hand held printer or DTMIII Data Module
• Timed Egress Input – Selectable door open times 3, 10 or 15 seconds
• 500 Scheduled events & real time clock
• Tamper supervised (reportable to alarm system)
• Remote release feature; request-to-exit input
• Weatherproof -31˚ to 151˚F (-35˚ to +66˚C)

• Built-in HID proximity reader
• Accepts up to 2000 PIN codes and/or HID cards and keyfobs
