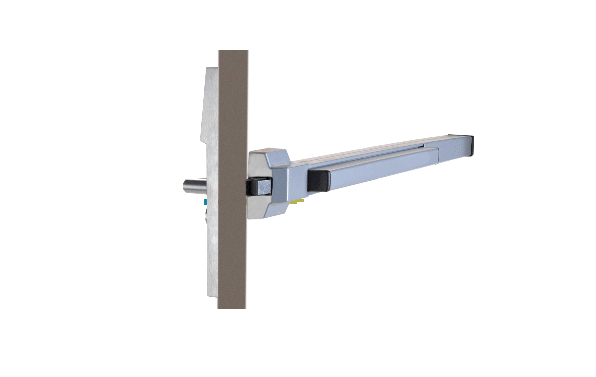

Alarm Lock - PDL1350ETNW/26D - PDL1350 Networx Narrow Stile Exit Trim 26D
Part number:
PDL1350ETNW/26D
Price:
Alarm Lock's new Trilogy narrow stile exit device trim locks.
Features:
- 2000 Users (PIN code or prox ID on PDL model)
- Architectural finishes: US26D and US10B
- NOTE: Must use DL1225/DL1250 with Dor-O-Matic, 2090, Jackson 1095 & Dorma 5300 as it requires more than 85 degrees rotation. Dor-O-Matic, Jackson and Dorma devices require thumb-turn or knob Note: Must purchase separate TP assembly – See price book)
- Must order seperate tailpiece for specific ET being installed.
| Model & Feature | PDL1300ETNW/26D |
| Lock Type | Narrow stile (also PDL1300NWET series for use w/ exit device) |
| User Codes | 5000 |
| Code Length | 3-6 digits |
| Programming | Keypad / PC |
| Vandal-Proof Keypad | All metal, 12 button |
| Trim w/Rugged Clutch | Straight or curved lever |
| Audit Trail Events | 35000 |
| Scheduled Events | 500 |
| Reader/Credential Support | PDL1300NW for HID Prox |
| Lockdown (Privacy) | Global lockdown via lock, server or optional keyfob |
Weather-Proof -31 to 151˚ F | Standard |
| Handing | Non-handed, fully field reversible |
| Door Thickness | 1-3/4” |
| Backset | 31/32, 1-1/8 & 1-1/2”; Stile Thickness 1-3/4” |
| Cylinder | 1-1/4” mortise cylinder, supplied; for Best, Falcon, Arrow prep cam and housing available (cylinder not incldd.) |
| Relay Options | No |
| Battery/Cycles Typical | 4AA; 100,000 or up to 3 - 4 years |
| Ratings | 3 Hour fire rated UL |
| Architectural Finishes | US26D, US10B |
Name
Description
Size
Downloads
File
Datasheet
1mb
