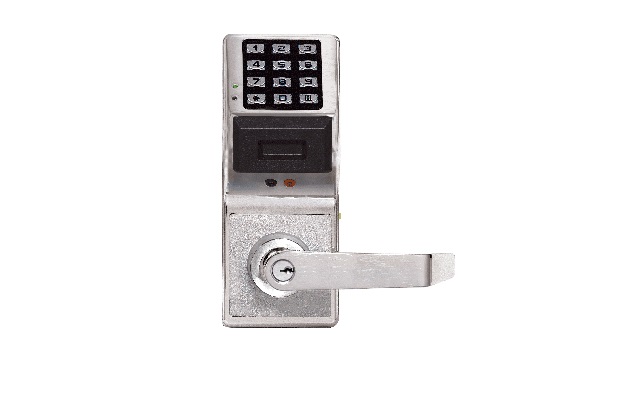

ALARM LOCK - PDL3075IC/10B-S - TRILOGY PROX LOCK W/KEYPAD
Part number:
PDL3075IC/10B-S
Price:

Alarm Lock's standalone Trilogy Locks provide safe, convenient keyfob-activated classroom lock-down, from safely inside the classroom, with a typical range of up to 100'. A favorite in K-12s, colleges and universities for their easy deployment and dependable, affordability, field-proven Trilogy locks are both advanced and rugged Grade 1. Starting with the cylindrical DL3200 or PDL3000, and Mortise P/DL3500 Series, each lock can support up to 50 tiny keyfobs, used with the Trilogy Remote Release Kit. This great feature-set can be incorporated within any new installation, replacing any standard lockset, or they can be easily field-retrofit to existing Trilogy PIN and/or Prox ID Locks.



Features:

  • 2000 user codes (3-6 digits) and/or accepts HID prox cards and keyfobs
  • Multilevel security - Master; manager; supervisor; basic users
  • Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC –also- downloadable from PC or enroller tool
  • 40,000 event audit trail log
  • 150 scheduled events
  • PC programming/reporting
  • Quick passage mode (without being in program mode)
  • Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
  • 5AA Battery operated; 60,000 cycles, typ.
  • Keypad - Weatherproof, all metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan.
  •
  • HID Proximity Reader - Built-in, weather-sealed HID reader supports virtually all HID cards and HID fob credential formats.
  •
  • Door Thickness - 1 5/8" to 1 7/8" standard. For 1 3/8" doors use HW567 & HW569 spacers. For other other thicknesses, please consult factory.
  •
  • Backset - 2 3/4" Standard. 2 3/8" Backset also available.
  •
  • Audit Trail - Lock's activity log can be extracted by using the AL-DTMIII (data transfer module), the AL-PCI2 (PC interface) and/or can be on-site printed using the AL-IR1 hand-held infrared printer)
  •
  • Strike - 1-1/8" x 2-3/4" T Strike standard. With screws for wood or metal jambs. 1 1/4" x 4 7/8". ASA Strike also included.
  •
  • Finishes - US3 polished brass, US4 satin brass, US26D satin chrome, US26 polished chrome, US5 antique brass, US10 satin bronze and US10B durondic.
  •
  • Door Prep - Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.
  •
  • Compliances - BHMA Certified Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification. Latchbolt is UL listed and 3-hour fire rated, FCC certified. ADA compliant levers.
  •
  • Standard Key Override Cylinder - Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway, furnished in all K.O. models. Tailpieces for Schlage (HW580) & Lori (HW620) cylinders (furnished).
  •
  • Power - 5AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, 60,000 cycles typical.
  •
  • Programming - Locking modes, event schedules, group, individual, master, management, passage, emergency service codes. Lockout, remote override capability and allowable entry time (3, 10 or 15 seconds), are programmable through the Keypad, AL-DTMIII or Alarm Lock's DL-Windows PC Software.
