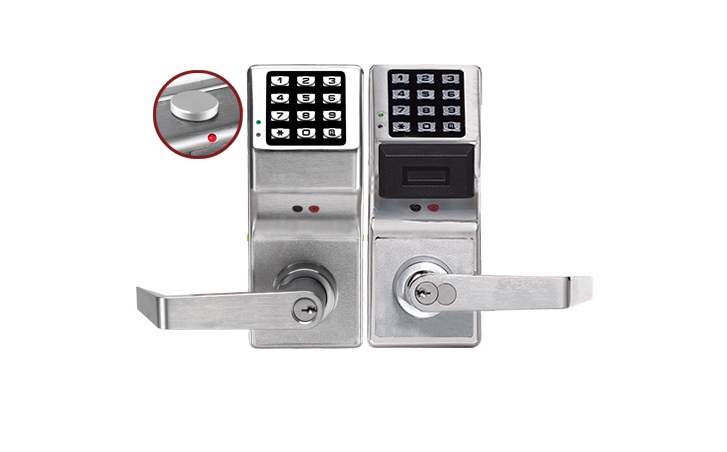

Ideal for School & Campus Security

Features:

• 2000 PIN or PIN/Prox user codes; 500 scheduled events; 40,000 audit trail
• Privacy Pushbutton – Push button on inside door to temporarily lock-out keypad codes (programmable option)
• Occupied and multi-status LED indicator, flashes when privacy session is active
• Self-stick instructional signage, supplied (bilingual)
• Keypad or PC programming/reporting
• Right- or left-hand, classroom or deadbolt function models
• 1-3/8" mortise cylinder & ASA strike, matching function, supplied.
• 5AA battery-pak operated; 60,000 cycles, typ.
• 5 Architectural finishes (US3 polished brass, 26 polished chrome, 26D satin chrome, 5 antique brass, 10B duronodic)
• Weatherproof -31˚ to +151˚F (-35˚ to +66˚C)
• Operation - Authorized digital code or prox technology ID allows lever to retract latch. Inside lever is always in passage mode and permits instant egress.
• Operating Temperature - Weather proof lock with operating range from -31 degrees below to 151 degrees F.
• Keypad - Weather proof, all-metal, 12-button programmable formulti-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan .
• Programming - Locking modes, event schedules, group or individual user codes, master and management codes, passageand emergency or service code, lockout and remote over ride capability and allow able entry time (3, 10 or 15 seconds), etc. are programmable through the keypad, the AL-DTM (data transfermodule) or Alarm Lock DL – Windows PC Software.
• Audit Trail - Lock's activity log can be extracted by using the ALDTM(data transfer module), the AL-PCI (PC interface) and/or canbe on-site printed using the AL-IR1 (hand-held infrared printer)
• Power - 5AA alkaline batteries, furnished. Audible low battery alert,visual and audible entry indicators; 60,000 cycles, typical.
• Door Thickness - 1 5/8" to 1 7/8" standard. For 1 3/8" doors useS6072 spacers. For other thickness', please consult factory.
• Backset - 2 3/4" standard. 2 3/8" backset also available.
• Door Prep - Standard ANSI A115 Series Prep modified by adding additional through-bolt holes.
• Cylinder - Solid brass 6 pin tumbler cylinder keyed 5, SCI keyway,furnished in all K.O. models. Tailpieces for Schlage (HW580) & LoriHW620) cylinders (furnished). Standard IC core models accept Arrow , Best . Falcon , KSP and Kaba Peaks 6 or 7 pin IC corec ylinders (not furnished). Alarm Lock tailpiece for use with IC core cylinders is furnished. IC core models prepped for Yale , Medeco ,Corbin-Russwin , Sargent and Schlage also available.
• Strike - 1 1/8" x 2 3/4" T strikestandard. With screws for woodor metal jambs. 1 1/4" x 4 7/8".ASA strike also included.
• Finishes - US3 polished brass,US26D satin chrome, US26polished chrome, US5antique brass, plus specialorder finishes (including Durondic US1OB).
