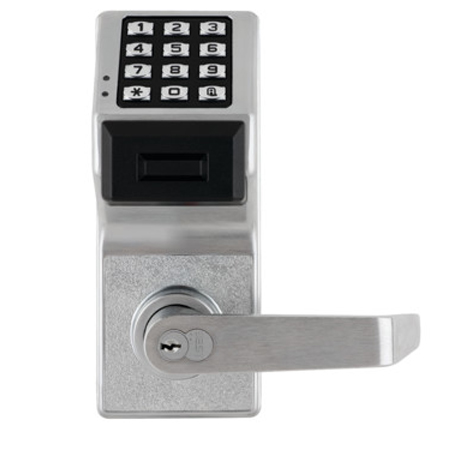

Alarm Lock - PDL8200IC/26D-S - Wireless Iclass W/RX & Dps
Part number:
PDL8200IC/26D-S
Price:

Trilogy Networx Locks eliminate door-to-door programming and audit trail retrieval by communicating wirelessly via Ethernet or 802.11B/G, while providing all original Trilogy standalone lock’s functionality. Plus, the new PDL8200 Series features a built in HID iClass Reader, to accept 13.56MHz Smart Cards, including smart chip for transactional info, ideal for campuses and universities seeking a one-card solution. These powerful Networx locks also provide a quick, easy, economical access system with advanced features & functions, like automatic schedules, event logs and support for 2000 doors and 5000 existing iClass Prox. ID Cards/Badges, but with no wires to run, and no access panels or power supplies to buy or install. At its simplest, it’s one Grade 1 durable wireless lock per door, installed in about an hour, all communicating to a single Gateway (each gateway controls up to 63 locks), networked to any non-dedicated Windows-based PC. In addition to Wireless Trilogy Networx’ unsurpassed battery-life, exceeding 5 years, they feature new network-wide capabilities, executed from any lock or the network’s PC, including emergency priority global lockdown or unlock deployed in seconds, and you can activate (non-priority) system-wide free-passage or locking modes from the PC. For existing Trilogy installations, original standalone and new Trilogy Networx locks can seamlessly share one common database hosted on free Alarm Lock DL-WINDOWS software.



Features:

  • Locks support up to 5000 iClass HID card users and/or 3-6 digit numeric PIN codes
  • Tap & Add ID Card Enrollment right at lock (individually or batch) or via PC
  • Trilogy Networx Locks communicate wirelessly via Ethernet or 802.11B/G for a comprehensive wireless networked door access control system, eliminating door-to-door programming and audit trail retrieval and providing all standalone Trilogy lock functionality plus network-wide global emergency lockdown/unlock commands
  • Unsurpassed 5-year+ battery life, typical, using 4 C-cell batteries (supplied)**. (Automatic battery status reports at the PC; visual and audible low-battery status indicators at lock(s)
  • Trilogy Networx and gateway modules have an integral transceiver for highly-efficient 900MHz bidirectional communications, for longer range and less interference than with more common 2.4GHz spread spectrum devices. Alarm Lock devices require NO wiring; NO splitters or repeaters; NO hardwiring to the host/server; NO extra power supplies; and NO access controller/panels
  • Contains REX (Request to Exit) and DPS (Door Position Switch) features. Real time when integrated with Continental Access, Lenel, Stanely BASIS
  •

    • In 10 seconds, activate emergency global lockdown/unlock from the Networx PC or any Networx lock activated from any lock, with or without the PC online by any authorized user with global permissions (If desired, locks may be selectively programmed to be excluded from emergency global functions, i.e., they will ignore the lock/unlock command)
    • System-wide free-passage enable or disable, can likewise be activated from the Networx PC



    • On demand, in seconds, wirelessly change users, schedules, lock features or retrieve audit trails of up to 35,000 events/lock from any networked PC. (Note: Transaction processing time is dependent upon system capacity, the more locks/gateways and the more data to be up/downloaded, the longer the time.)
    • Unattended programming updates or

    event log retrievals can be scheduled to run automatically, saving manpower and productive time.

Name
Description
Size
Downloads
File
Datasheet
1.7mb
