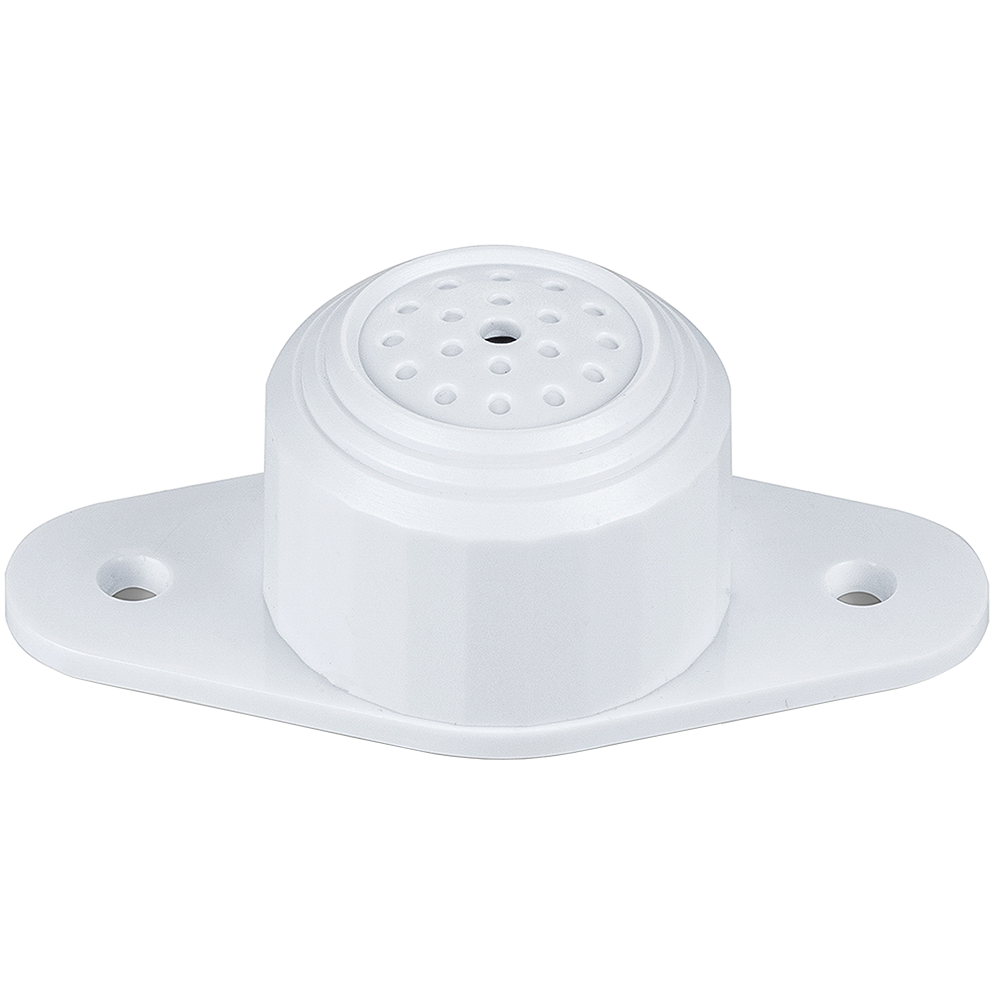

Audio Pickup
Features:
- Omni-directional, High-fidelity Condenser Microphone
- Pinhole Design for discreet installation
- 30 KV Air Contact ESD with Built-in Lightning Protection
- Power Supply Polarity Reversal and Electrostatic Protection
- Best Fit for Spaces Between 5 m² (16.40 ft²) to 40 m² (121.23 ft²)
| Technical Specifications | |
| Scope | 5.0 m² (16.40 ft²) to 40.0 m² (121.23 ft²) |
| Sensitivity | –40 dB, (–45 dB to –20 dB, adjustable) |
| Frequency Response | 20 Hz to 20 KHz |
| Directional Characteristics | Omni-directional |
| SNR | 70 dB (1 m 40 dB Sound Source SPL) |
| Dynamic Range | 104 dB (1 KHz at Maximum dB SPL) |
Maximum Sustainable Sound Pressure | 120 dB SPL (1 KHz, THD 1%) |
| Output Impedance | 600 Ω (non-equilibrium) |
| Output Signal Amplitude | 2.5 Vpp / –25 dB |
| Working Voltage | 12 VDC (9 VDC to 15 VDC) |
| Working Current | 60 mA (50 mA to 100 mA) |
| Working Temperature | –30° C to +70° C (–22° F to 158° F) |
| Interface | Audio Out: RCA Power In: DC Connector |
| Color | White |
| Outer Shell | PC Plastic |
| Dimensions | 63.0 mm x 30.0 mm x 22.0 mm (2.48 in. x 1.18 in. x 0.87 in.) |
| Weight | 0.034 kg (0.08 lb) |
| Certifications | CE FCC |
