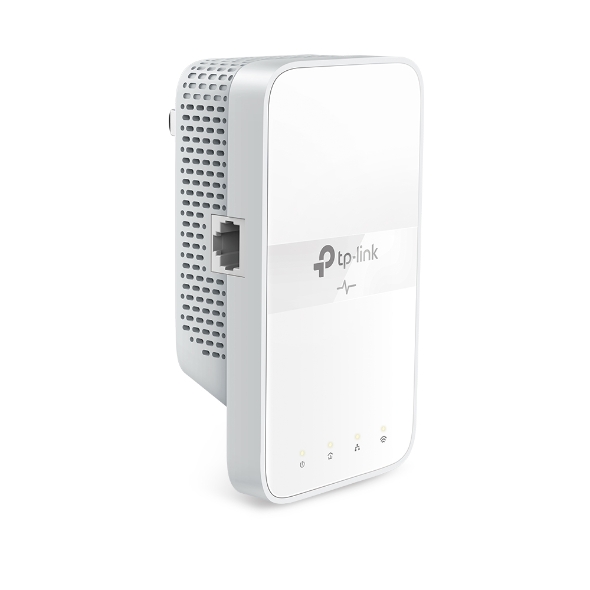

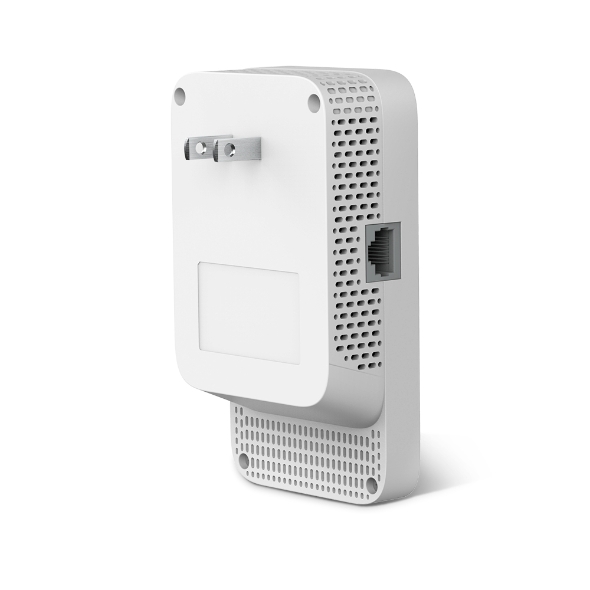

TP-Link - TL-WPA7617 - AV1000 GIGABIT POWERLINE AC PERP WI-FI EXTENDER
Part number:
TL-WPA7617
Price:
AV1000 Gigabit Passthrough Powerline ac Wi-Fi Kit
Features:

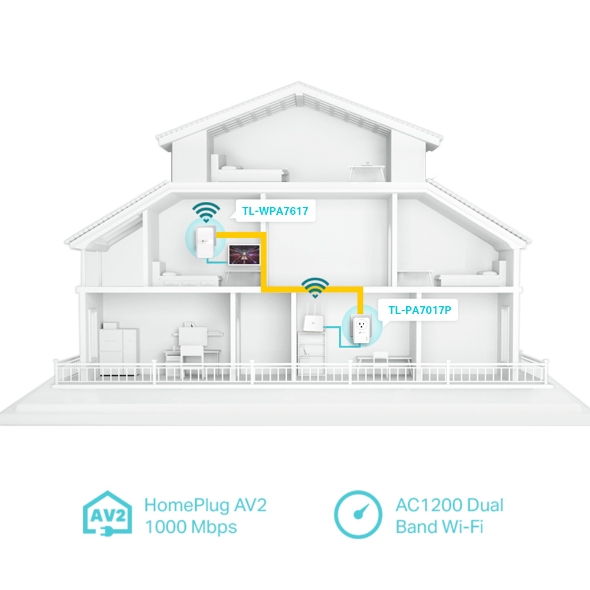

- Homeplug AV2 standard compliant - Provides users with stable, high-speed data transfer rates of up to 1000 Mbps on a line length of up to 300 meters
- Dual band 802.11ac Wi-Fi - AC1200 dual band Wi-Fi (867Mbps on 5GHz & 300Mbps on 2.4GHz) allows streaming, gaming, emailing, browsing and posting on your wireless devices, throughout your home
- Wi-Fi Auto-Sync - Simply copy your router‘s Wi-Fi settings and apply any changes across the secure powerline network with Wi-Fi Clone and Wi-Fi Move

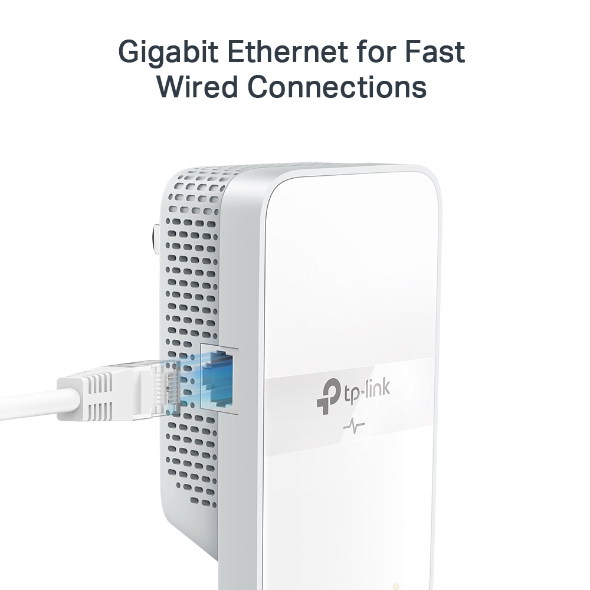

- Gigabit Ethernet Port - Provide reliable high-speed wired connections for game consoles, smart TVs, and NAS
- Plug, Pair and Play - Quickly set up a secured Powerline network
| HARDWARE FEATURES | |
| Plug Type | EU |
| Standards and Protocols | HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, |
| IEEE 802.3ab, IEEE 802.11b/g/n (2.4GHz), IEEE 802.11a/n/ac (5GHz) | |
| Interface | 1 Ethernet Port; |
| Button | Pair, Reset, Wi-Fi Clone, LED On/Off |
| Power Consumption | Maximum: 11W, Typical: 6.5W |
| LED Indicator | Power, Powerline, Ethernet, Wi-Fi |
| Dimensions ( W x D x H ) | 2.7 × 1.4 × 4.9 in. (69.5 × 35 × 124.1 mm) |
| Range | Up to 300 meters/1000 feet over existing electrical wiring |
| Compatibility | Compatible with all HomePlug AV & AV2 standard powerline adapters |
| Transmission Speeds | Powerline: Up to 1000 Mbps |
| Ethernet: 10/100/1000 Mbps | |
| WIRELESS FEATURES | |
| Wireless Speeds | Up to 1200 Mbps |
| Wireless Security | Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions |
| SOFTWARE FEATURES | |
| Management | tpPLC: Scan the QR code to download TP-Link tpPLC App. |
| Or download new tpPLC Utility on PCs: www.tp-link.com. | |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline: 128-bit AES Encryption |
| Wireless: WPA-PSK / WPA2-PSK, WEP Encrptions | |
| OTHERS | |
| Certification | CE, RoHS |
| Package Contents | TL-WPA7617 |
| Ethernet Cable | |
| Quick Installation Guide | |
| System Requirements | Windows 10/8.1/8/7/Vista/XP, Mac OS, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F~104°F) |
| Operating Humidity: 10%~90% non-condensing | |
Name
Description
Size
Downloads
File
Datasheet
1mb
File
Quick Installation Guide
0.9mb
