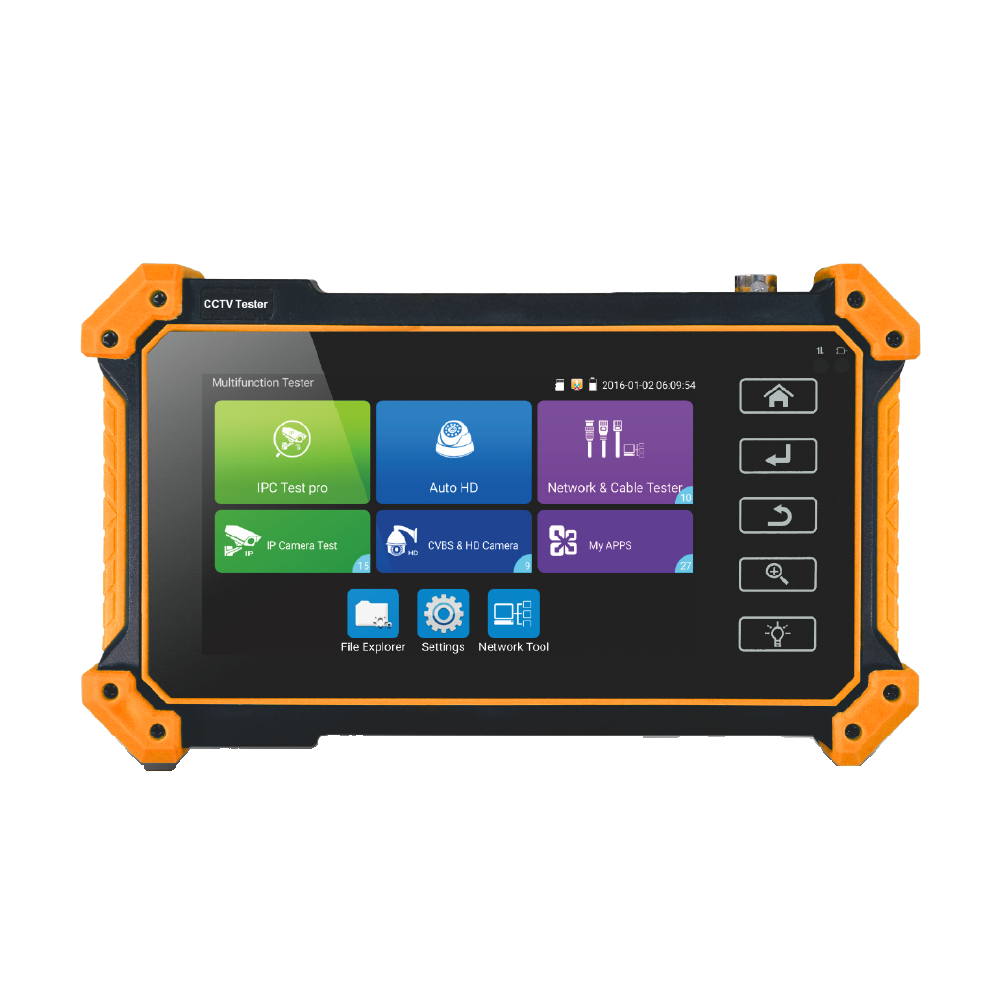

AVYCON - AIVO-54T4K - 5.4" H.265 All-in-One Tester for CCTV Installation and Troubleshooting
Part number:
AIVO-54T4K
Price:
5.4" ALL-IN-ONE Network Compact Tester, TVI & Analog Compatible, 8MP TVI, 4K IP support, PoE Power, 4K HDMI In/Out, Touch Screen, WiFi, Compact Wristband Style.
Features:
- 5.4” Touch Screen with 1920 x 1152 resolution
- Supports up to 8MP(4K) HD-CVI/HD-TVI/AHD for HD Analog testing and CoC/UTC control
- Will automatically recognize HD-CVI/HD-TVI/AHD formats/resolutions for testing
- Supports H.265/H.264 decoding up to 4K resolution for IPC testing
- HDMI Input with support for up to 4K / 30fps
- VGA input with support for up to 1920 x 1200 / 60 fps
- DC12V @ 3A, 802.3at/af (up to 25.5 W) PoE power output
- Support for WiFi connection and also ability to create a WiFi Hotspot
- Includes ONVIF testing tool, which can modify IPC settings & generate reports
- Ethernet Cable & RJ-45 Termination testing
- Digital cable tracer, cable search and UTP cable testing (customizable)
| GENERAL | |
| Display | IPS 5.4” Touch Screen with 1920x1152 resolution |
| Supported On-Screen Languages | English, Spanish, Korean, Italian, French, Polish, Portuguese, Japanese, Turkish, German, Russian, Serbian, Czech, and Vietnamese |
| Network Port | Single RJ45 10/100/1000M port |
| WiFi | Built in WiFi with speeds of up to 150Mb/s; Ability to create WiFi hotspot for IPC testing |
| IPC Formats | H.265/H.264 decoding up to 4K resolution |
| IP Discovery | Can scan entire network for ONVIF IPCs |
| Rapid ONVIF | Quick ONVIF Camera Search with ability to log in to cameras automatically and display live stream from cameras |
| Supported IP Cameras | Cameras with ONVIF Support, Dahua, Hikvision, Samsung, Tiandy, Axis and many other brands |
| Included IP Tools | Dahua, Hikvision, Uniview: Batch Activation Support, Modification of IP address and credentials |
| Analog Video Inputs | 1 channel BNC Input with NTSC/PAL Autodetection |
| Analog Video Outputs | 1 channel BNC Output with configurable NTSC/PAL output |
| Local Media Capture | Ability to record still images from connected cameras in JPG format and live videos in MP4 format; Included Media Player will allow you to review saved snapshots and video |
| HDMI Input | Supports the following resolutions: 4K (3840x2160p) @ 30fps, 720x480P/60fps, 720x576P/60fps, 800x600P/60fps, 1280x720P/25/30/50/60fps, 1024x768P/60fps, 1280x1024P/60fps, 1920x1080P/25/30/50/60fps, 1920x1080P/50/60fps |
| HDMI Output | N/A |
| VGA Input | Supports the following resolutions: 1920x1200P 60fps, 1920x1080P 60fps, 1792x1344P 60fps, 1680x1050P 60fps,1600x1200/900P 60fps1440x900P 60fps, 1360x768P 60FPS, 1280x1024/960/800/768/720P 60fps, 1152x870P 60fps,1024x768P 60fps, 800x600P 60fps, 640x480P 60fps |
| Direct Currect (DC) Power Output | DC12V at maximum 3,000mA Output |
| USB 5V Power Output | N/A |
| PoE Power Output | 802.3af/at Output, maximum current of 25.5W |
| PoE/PSE Voltage Test | N/A |
| Drop Down Shortcut Menu | N/A |
| Audio Testing | 1 Channel Audio Signal Input |
| PTZ Control | Supports RS-485 and CoC/UTC serial communication, with baud rate of 600 - 115200bps. Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. |
| Color Bar Generator | N/A |
| RTSP Streaming | Can configure device to support access to screen display via RTSP (H.264) |
| RJ45 Cable TDR Testing | N/A |
| UTP (Unshielded Twisted Pair) Cable Testing | Digital cable tracer, cable search and UTP cable testing (customizable) |
| RS-485 Data Monitoring | Can capture/analyze and send RS-485 data from compatible devices. Can also send data in hexadecimal format. |
| Advanced Networking Tools | N/A |
| HD ANALOG | |
| Formats | Will automatically recognize HD-CVI / HD-TVI / AHD formats & resolutions for testing. Supports CoC / UTC for PTZ and OSD Menu Control |
| HD-TVI Video Signal | BNC Input, supporting resolutions of up to 8MP/4K: 3840x2160P @ 12.5/15fps, 2592x1944P @ 12.5/20fps, 2688x1520P @ 15fps, 2560x1440P @ 18/25/30fps, 2048x1536P @ 18/25/30fps, 1920x1080P @ 25/30fps, 1280x720P @ 25/30/50/60fps |
| HD-CVI Video Signal | BNC Input, supporting resolutions of up to 8MP/4K: 3840x2160P @ 12.5/15fps, 2880x1920P @ 20fps, 2592x1944P @ 20fps, 2560x1440P @ 25/30fps, 1920x1080P @ 25/30fps, 1280x720P @ 25/30/50/60fps |
| AHD Video Signal | BNC Input, supporting resolutions of up to 8MP/4K: 3840x2160P @ 15fps, 2592x1944P @ 12.5/20fps, 2560x1440P @ 18/25/30fps, 2048x1536P @ 18/25/30fps, 1920x1080P @ 25/30fps, 1280x720P @ 25/30/50/60fps |
| Digital Multi-Meter | N/A |
| POWER | |
| External Power Supply | DC 12V @ 1A |
| Battery | Built-in 7.4V Lithium ion battery, 3350 mAh |
| Typical Battery Life | 5-6 Hours in full operation (typical 3-4 hour charging time needed) |
| Power Saving | Configurable Auto-Power Off function from 1 - 30 mins. |
| MECHANICAL/ELECTRICAL | |
| Working Temperature | 14°F (-10°C) - 122°F (50°C) |
| Working Humidity | 30% - 90% Relative Humidity |
| Dimension/Weight | 7.20in (183mm) x 4.33in (110mm) x 1.44in (36.5mm) / 11.2oz (320g) |
