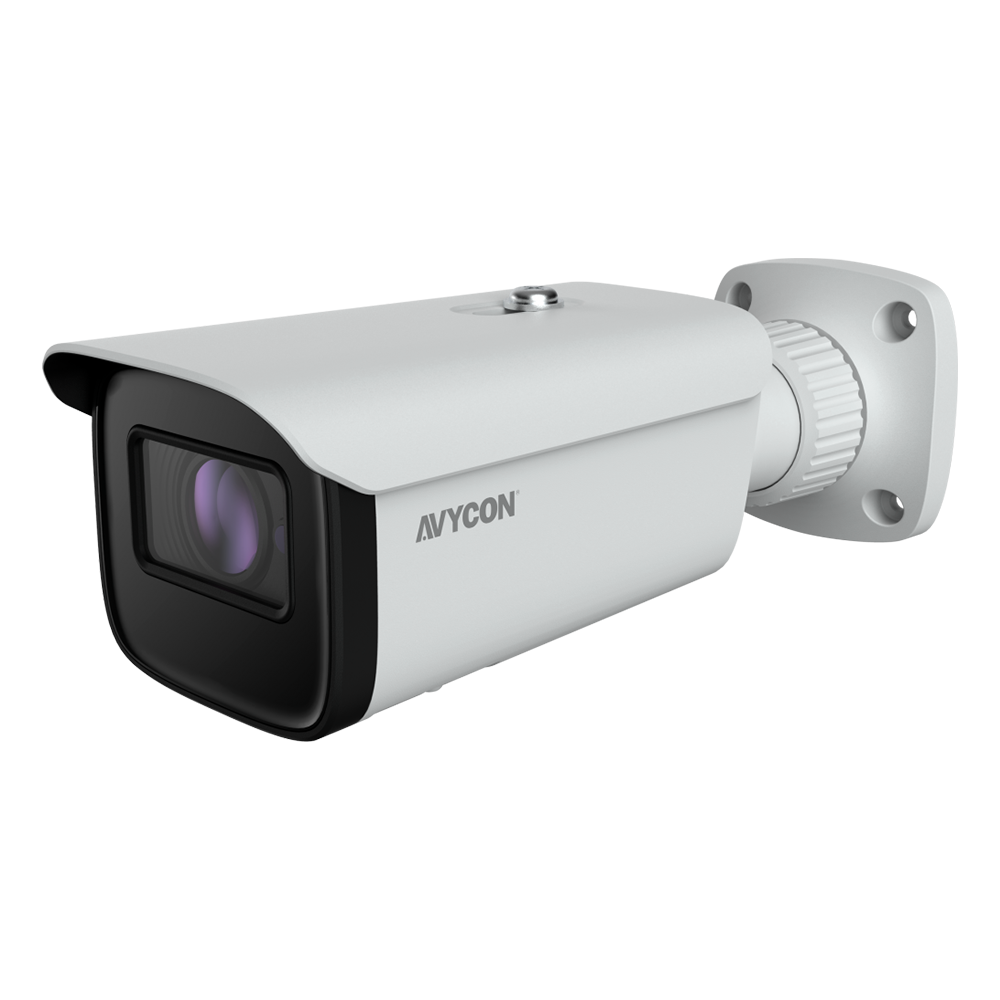

AVYCON - AVC-BLN41AVT - 4MP H.265 IR Water-proof Bullet Network Camera
Part number:
AVC-BLN41AVT
Price:
The AVC-BLN41AVT is our 4MP H.265 Network IR Bullet Camera with a 2.8mm~12mm motorized lens and featuring our newest generation of video analytics. This camera supports True Day/Night mode, True WDR capabilities and also includes a microSD memory card slot for standalone recording applications. The AVC-BLN41AVT can be powered by both PoE (802.3af) and DC12V and also includes a hardware reset button.
Features:
- H.265 /H.264/MJPEG coding
- Max.resolution: 4MP (2560 x 1440)
- True Day / Night Operation with ICR Automatic Switching
- 3D DNR, WDR, HLC, BLC, Smart IR, and etc.
- ROI encoding
- Supports image distortion correction
- Up to 165 ft IR Night View Distance
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- DC12V/PoE power supply
- IP67 ingress protection
- Support three streams
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Intelligent Analytics
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Image Size | 2560 x 1440 |
| Shutter Speed | 1/2s to 1/100,000s |
| Iris Type | Fixed Iris |
| Min. Illumination | 0.005 lux@F1.6, AGC ON; 0 lux with IR |
| IR Distance | Up to 164ft |
| Lens | Motorized 2.8 - 12 mm @ F1.4 Horizontal FoV: 92° ~ 31° Vertical FoV: 48° ~ 17.2° Diagonal FoV: 112° ~ 35.6°° |
| Focus | Varifocal (Manual/Motorized) |
| Lens Mount | Ø14 |
| Days & Night | ICR |
| Wide Dynamic Range | 120 dB |
| Digital NR | Yes |
| Backlight Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Defog | No |
| Angle Adjustment | Pan: 0˚ ~ 360˚; Tilt: 0˚ ~ 90˚; Rotation: 0˚ ~ 360˚ |
| VIDEO IMAGE | |
| Video Compression | Main stream: H.265 / H.264 |
| Sub/third stream: H.265 /H.264 / MJPEG | |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 4MP ( 2560 x 1440 ), 3MP ( 2304 x 1296 ), 1080P ( 1920 x 1080 ), 720P (1280 x 720), D1, 480 x 240, CIF |
| Main Stream | 60Hz: 4MP/3MP/1080P/720P(1~30fps); 50Hz: 4MP/3MP/1080P/720P(1~25fps) |
| Sub Stream | 60Hz: 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) |
| Third Stream | 60Hz: D1/480x240/CIF (1~30fps); 50Hz: D1/480x240/CIF (1~25fps) |
| Video Bit Rate | 64 Kbps ~ 8 Mbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image |
| Mirror, Image Flip, NR, etc. (Adjustable through Software or Browser) | |
| ROI | Each ROI to be configured separately |
| NETWORK / INTERFACE | |
| Network | 1 x RJ45 10M / 100M Self-Adaptive Ethernet port |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Web Browser | IE (Plug-in required) / Google Chrome / Edge / Firefox / Safari |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Video Output | No |
| Audio | 1CH audio input |
| Alarm | N/A |
| Hardware Reset | Yes |
| DORI DISTANCE | |
| Lens | 2.8 ~ 12mm (W) / 2.8 ~ 12mm (T) |
| Detect | 209.94ft (63.99m) / 618.93ft (188.65m) |
| Observe | 83.98ft (25.60m) / 247.57ft (75.46m) |
| Recognize | 41.99ft (12.80m) / 123.78ft (37.73m) |
| Identify | 20.99ft (6.40m) / 61.87ft (18.86m) |
| FUNCTIONS | |
| Remote Monitoring | Web Browser Interface, Mobile App, AVYCON CVMS 2.0 |
| Smart Alarm | IE (plug-in required)/Google Chrome/Edge/Firefox/Safari |
| Smart Analytics | Video Exception (scene change, video blurr and video cast detection), line crossing detection and region intrusion detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern |
| GENERAL | |
| Power Supply | DC12V/PoE |
| Power Consumption | <8W |
| Operating Environment | -30°C ~ 60°C (-22°F ~ 140°F) Humidity: less than 95% (non-condensing) |
| Storage Environment | -30°C ~ 65°C (-22°F ~ 149°F) Humidity: less than 95% (non-condensing) |
| Dimensions (in) | 8.6 x 3.1 x 2.8 |
| Weight (lb) | Approx. 1.48 lbs |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
Quick Installation Guide
1.1mb
