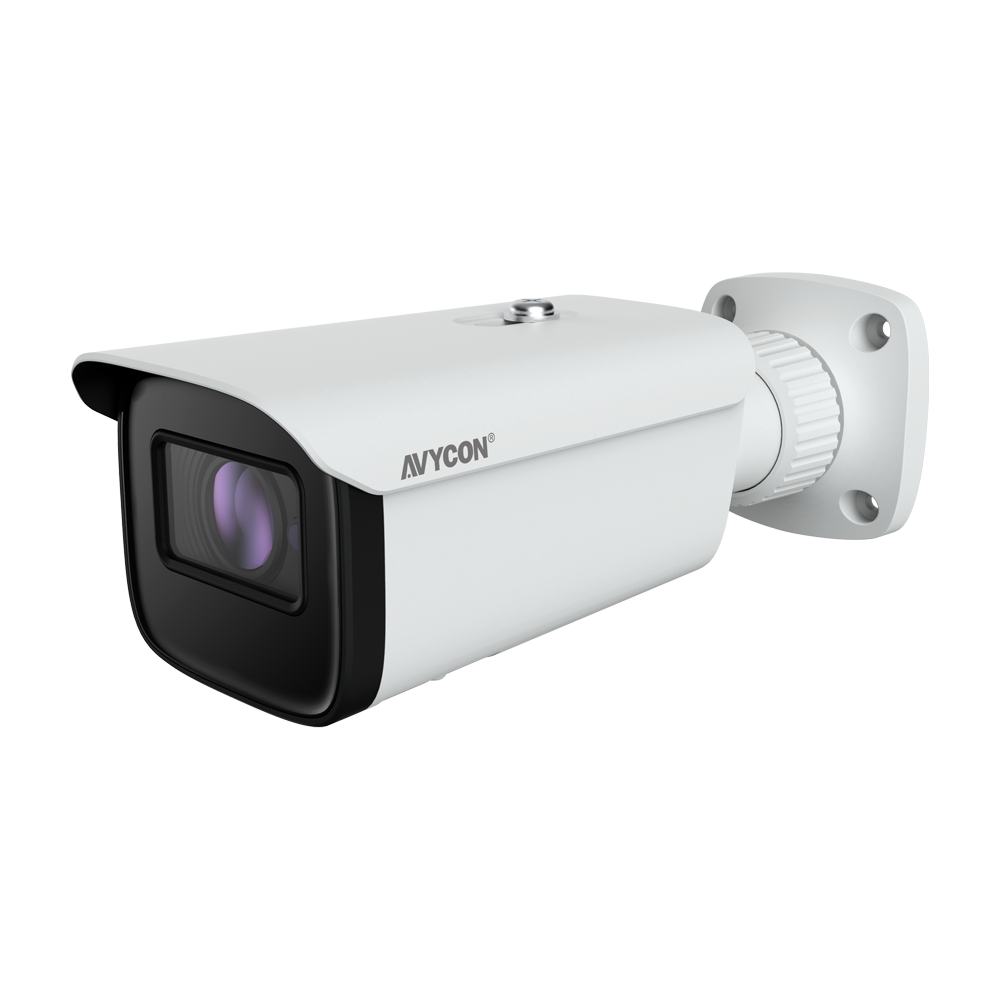

AVYCON - AVC-BNN81FT/2.8 - 8MP H.265 HD AI Bullet Network Camera
Part number:
AVC-BNN81FT/2.8
Price:
The AVYCON AVC-BNN81FT/2.8 camera is an 8MP H.265 HD AI Bullet Network Camera with Smart Features. This 8MP IP camera supports True Day and Night mode, PoE, and up to 164 ft. of IR night view distance. This camera includes a Fixed 2.8mm Lens with Auto-focus capabilities that can be controlled through a DVR. The AVC- BNN81FT/2.8 features a Audio Input, a built-in microSD slot (256GB max capacity), and is ONVIF compliant. Also standard with this series is 3D Digital NR, ROI, HLC, True WDR, and BLC capabilities along with IP67 outdoor rating. Optional accessories for this camera include a Junction Box Mount, a Pole Mount Bracket, and a Corner Mount Bracket.
Features:
- 8MP ( 3840 x 2160 )
- Max. Resolution: 3840 x 2160
- Supports Smart H.265/H.265 Encoding
- True Day & Night ICR
- Up to 164 ft. IR Illumination
- Fixed 2.8mm Lens
- 3D DNR, True WDR, HLC, BLC and ROI Encoding
- Supports Triple Streams
- Supports 1 CH. Audio Input
- Optional P2P function
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- Supports Remote Access with Windows, macOS, iOS and Android
- IP67 Ingress Protection
- Operating Temperature: -22°F - 140°F(-30°- 60° C)
- DC12V / PoE (802.3af)
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1 / 2.8" Progressive Scan CMOS |
| Image Size | 3840 x 2160 |
| Shutter Speed | 1/3s to 1/100,000s |
| Iris Type | Fixed Iris |
| Min. Illumination | Color: 0.02 lux @ F1.6 (AGC ON); BW: 0 lux with IR |
| IR Distance | Up to 164ft |
| Len | Fixed 2.8 @ F1.6 Horizontal FoV: 104° Vertical FoV: 55° Diagonal FoV: 125° |
| Focus | Fixed |
| Lens Mount | M12 |
| Day & Night | ICR |
| Wide Dynamic Range | 120dB |
| Digital NR | 3D DNR |
| Backlight Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Defog | Yes |
| S/N Ratio | ≥50dB |
| EIS | Yes |
| Angle Adjustment | Pan: 0°~360° ; Tilt: 0°~90° ; Rotation:0°~360° |
| VIDEO IMAGE | |
| Video Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| H.264 Compression Standard | Baseline Profile / Main Profile / High Profile |
| Resolution | 8MP ( 3840 × 2160 ), 6MP ( 3072 × 2048 ), 5MP ( 2592 × 1944), 4MP ( 2592 × 1520 ), 2K ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280× 720 ), D1, CIF, 480 × 240, VGA ( 640 × 480 ) |
| Main Stream | 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps);50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps);HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps) |
| Sub Stream | 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps);50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps);HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps) |
| Third Stream | 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps);50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps);HFR mode: 1080P/720P (60Hz: 1~60fps / 50Hz: 1~50fps) |
| Video Bit Rate | 64 Kbps ~ 12 Mbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser |
| ROI | Each ROI to be configured separately |
| NETWORK / INTERFACE | |
| Network | 1 x RJ45 10M / 100M Self-Adaptive Ethernet port |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS |
| Interface Protocol | ONVIF (Profile S, G, T, M) |
| Web Browser | IE 11 (Plug-in required) / Google Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+ |
| Online Connection | Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission |
| Security | Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP |
| Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Video Output | No |
| Audio | 1CH audio input |
| Audio Compression | G711A / U |
| Alarm | No |
| Hardware Reset | Yes |
| Lens | 2.8mm |
| Detect | 272ft (83m) |
| Observe | 108ft (33m) |
| Recognize | 56ft (17m) |
| Identify | 26ft (8m) |
| FUNCTIONS | |
| Remote Monitoring | Web Browser Interface, Mobile App, AVYCON CVMS 2.0 |
| Smart Alarm | Motion detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Smart Analytics | Line crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/missing object detection, Target counting by line/intrusion area/heat map, exception detection, face detection and face capture |
| Video Metadata | Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features and 1 non-motor vehicle feature |
| General Function | Watermark, video mask, heartbeat, image distortion correction, corridor pattern |
| GENERAL | |
| Power Supply | DC12V / PoE (IEEE802.3af) |
| Power Consumption | <9W |
| Operating Environment | -22°F ~ 140°F (-30°C ~ 60°C) Humidity: less than 95% (non-condensing) |
| Storage Environment | -22°F ~ 149°F (-30°C ~ 65°C) Humidity: less than 95% (non-condensing) |
| Dimensions (in) | 8.57 x 3.17 x 3.16 |
| Weight (lb) | Approx. 1.49 lbs |
