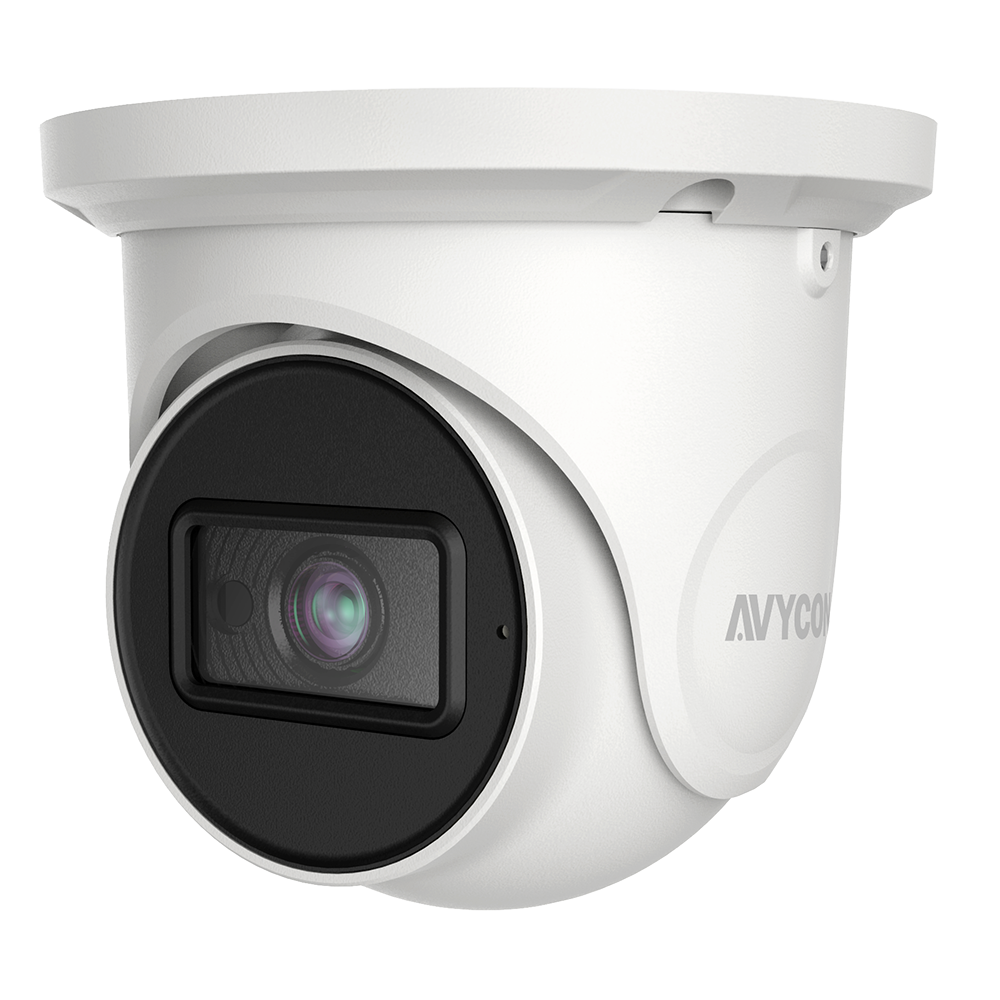

AVYCON - AVC-ELN81FT/2.8 - 8MP H.265 IR Water-proof Turret Network Camera
Part number:
AVC-ELN81FT/2.8
Price:
The AVC-ELN81FT/2.8 is our 8MP Network IR Eyeball Camera with a2.8mm fixed lens and features our newest generation of video analytics. This camera supports True Day/Night mode, and True WDR capabilities and also includes a microSD memory card slot for standalone recording applications. The AVC-ELN41FT_2.8 can be powered by both PoE(802.3af) and DC12V and also includes a hardware reset button.
Features:
- H.265 /H.264/MJPEG coding
- Max.resolution: 8MP (3840 x 2160)
- ICR Auto Switch, True day / Night Vision
- 3D DNR, WDR, HLC, BLC, Smart IR, etc.
- Up to 100ft IR Night View Distance
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- 1CH built-in MIC; 1CH audio input
- DC12V/PoE power supply
- IP 67 ingress protection
- Support three streams
- Support remote monitoring by smart phones & tablet PCs with iOS and Android OS
- Intelligent analytics
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Image Size | 3840 x 2160 |
| Electronic Shutter | 1/2s to 1/100,000s |
| Iris Type | Fixed Iris |
| Min. Illumination | Color: 0.005 lux @ F1.6(AGC ON); BW: 0 lux with IR |
| IR Distance | Up to 98ft |
| Lens | Fixed 2.8 @ F1.6 Horizontal FoV: 94° Vertical FoV: 50° Diagonal FoV: 115° |
| Focus | Fixed |
| Lens Mount | M12 |
| Days & Night | ICR |
| Wide Dynamic Range | 120 dB |
| Digital NR | Yes |
| Backlight Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°;Rotation: 0°~360° |
| VIDEO IMAGE | |
| Video Compression | Main stream: H.265 / H.264 Sub/third stream: H.265 / H.264 / MJPEG |
| H.265 Compression Standard | Main Profile@Leve4.1 High Tier |
| Resolution | 8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, 480 × 240, CIF |
| Main Stream | 60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps); HFR mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps) |
| Sub Stream | 60Hz: 720P/D1/CIF/VGA/480x240 (1~30fps); 50Hz: 720P/D1/CIF/VGA/480x240 (1~25fps) |
| Third Stream | 60Hz: 720P/D1/480x240/CIF (1~30fps); 50Hz: 720P/D1/480x240/CIF (1~25fps)) |
| Video Bit Rate | 64 Kbps ~ 12 Mbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image |
| Mirror, Image Flip, NR, etc. adjustable through client software or web browser | |
| ROI | Each ROI to be configured separately |
| NETWORK / INTERFACE | |
| Network | 1 x RJ45 10M / 100M Self-Adaption |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, 802.1x, SNMP, UPnP, HTTP, HTTPs, QoS |
| Interface Protocol | ONVIF |
| Web Browser | IE (Plug-in required) / Google Chrome / Edge / Firefox / Safari |
| Online Connection | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Video Output | No |
| Audio | 1CH audio input; 1CH built-in MIC |
| Alarm | N/A |
| Hardware Reset | Yes |
| DORI DISTANCE | |
| Lens | 2.8mm |
| Detect | 202.62ft(61.76m) |
| Observe | 81.03ft(24.70m) |
| Recognize | 40.51ft(12.35m) |
| Identify | 20.27ft(6.18m) |
| FUNCTIONS | |
| Remote Monitoring | Web Browser Interface, Mobile App, AVYCON CVMS 2.0 |
| Smart Alarm | Motion detection, SD card full, SD card error |
| Smart Analytics | Video Exception (scene change, video blurr and video cast detection), line crossing detection and region intrusion detection |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illigal login lock, corridor pattern |
| GENERAL | |
| Power Supply | DC12V/PoE |
| Power Consumption | < 5W |
| Operating Environment | - 30 °C ~ 60 °C (-22°F~140°F);Humidity: less than 95% (non-condensing) |
| Storage Environment | - 30 °C ~ 65°C (-22°F~149°F), Humidity: less than 95% (non-condensing) |
| Dimensions (in) | Ø 3.76 × 4.25 |
| Weight (lb) | Approx. 1.01 lbs |
| Ingress Protection | IP 67 |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
Quick Start Guide
1.2mb
