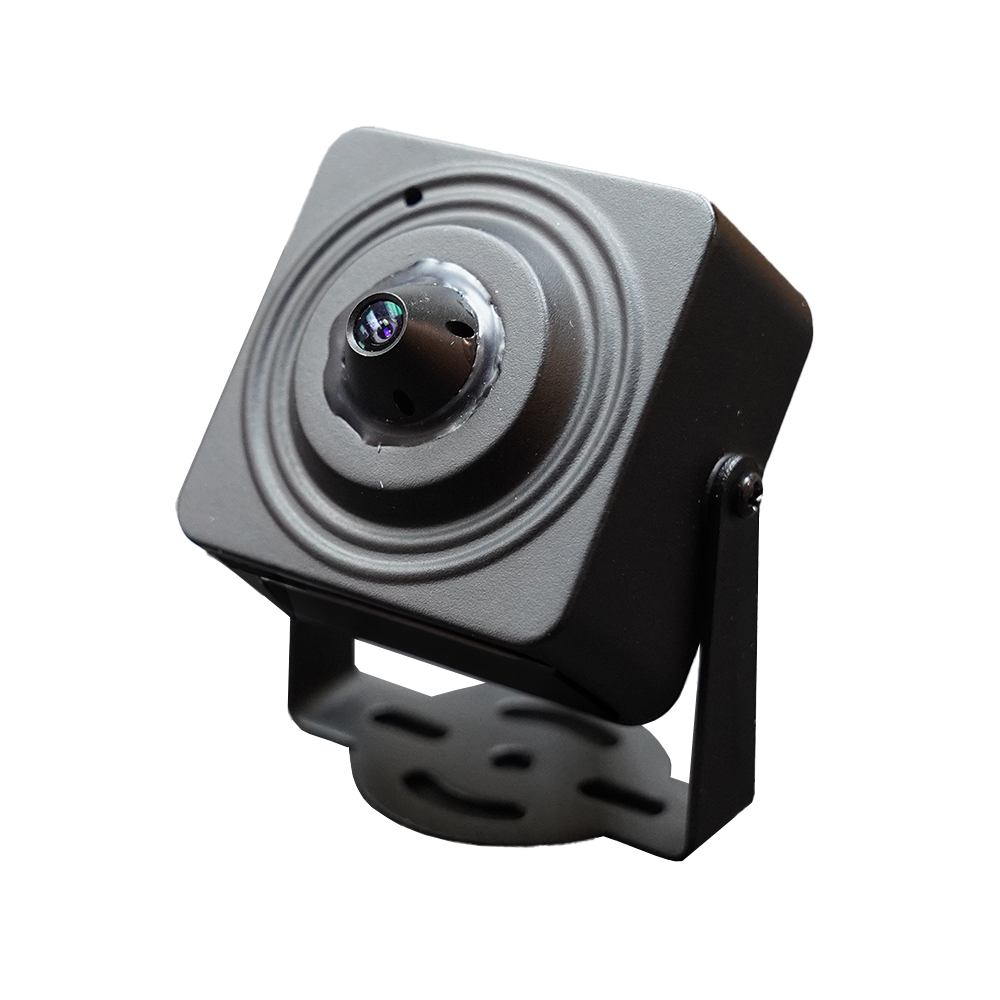

AVYCON - AVC-MT91FT - 2.1MP HD-TVI Pinhole Square Board Camera
Part number:
AVC-MT91FT
Price:
The AVYCON AVC-MT91FT camera is a 2.1MP HD-TVI Pinhole Lens Mini Square Board Camera. This camera includes a 3.7mm Pinhole Lens. Also standard with this series is the ability to control OSD Menu remotely, along with a dual video-out for HD-TVI / Analog.
Features:
- TVI Solution
- 1/2.8” Megapixel Sensor
- 0.15"(3.7mm) MP Pinhole Lens (ICR)
- Video Output: HD 1080P @ 30fps / 25fps
- Support UTC Function to Remote Control OSD Menu
- Dual Video-Out (HD-TVI / Analog)
- DC 12V
| GENERAL | |
| Image Sensor | 1/2.8" Megapixel Sensor |
| Image Resolution | 1920 x 1080 |
| Scanning System | 2.1 Megapixels |
| Video Output | 1 HD-TVI Output / 1.0Vp-p 75Ω |
| S/N Ratio | More than 50dB |
| Auto Gain Control (AGC) | Off |
| Lens | 0.15"(3.7mm) MP Pinhole Lens (ICR) |
| Electronic Shutter | 1/25 ~ 1/50000s |
| Backlight Compensation (BLC) | Yes |
| White Balance | ATW |
| Day & Night | TRUE |
| Privacy Masking | Off |
| DNR | Auto |
| BLC | Yes |
| Sens-Up | N/A |
| Motion Detection | N/A |
| WDR | TRUE |
| IR Led | N/A |
| Input Voltage | DC 12v (±10%) |
| Power Consumption | 80mA (Max.) |
| Operating Environment | -4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity |
| Storage Environment | -4°F ~ 140°F (-20°C ~ 60°C) / 10% ~ 90% Relative Humidity |
