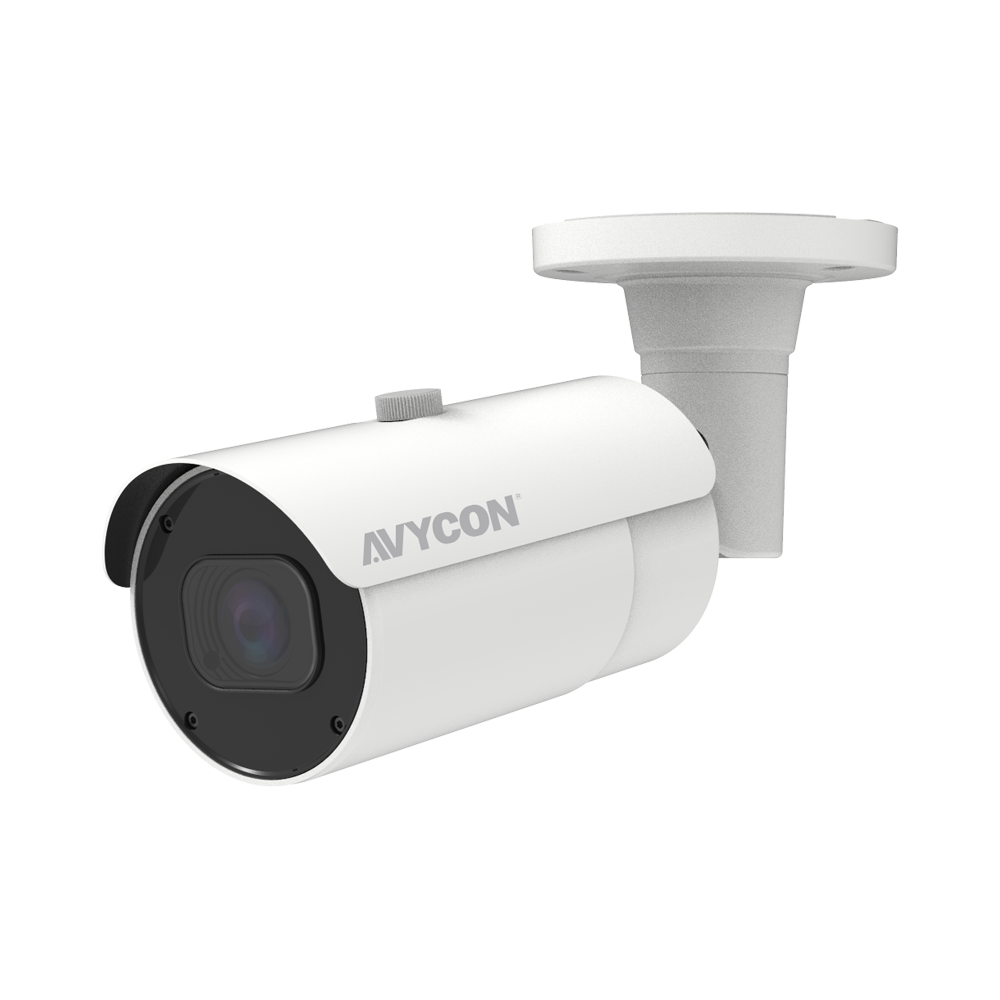

5MP (2592x1944), H.265+ Bullet LPR IP Camera, InfiniteStar, True WDR, AI, 5MP@30FPS, Triple Stream, 2.7-13.5mm Motorized A/F Lens, 147ft Smart IR's, Audio In/Out, Alarm In/Out, MicroSD, Onvif, DC12V / PoE, IP67, White, Made in Korea (TAA)
The AVYCON AVC-NKB51M50 camera is a 5MP H.265 Bullet Network Camera. This 5MP IP camera supports True Day and Night mode, PoE, up to 165ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Motorized 5mm- 50mm Lens with Auto-focus capabilities that can be controlled through a NVR. The AVC-NKB51M50 features Alarm Input/Output connections, Audio Input/Output, a microSD slot (128GB max capacity), and is ONVIF compliant. Also standard with this series is Digital NR, ROI, HLC, True WDR, and BLC capabilities along with IP67 outdoor rating. Optional accessories for this camera include a Junction Box Mount. Includes a MicroSD memory card slot for standalone recording applications.
Features:
- 5MP ( 2592 x 1944 ) @ 30fps
- Max. Resolution: 2592 x 1944
- Supports Smart H.265/H.264 Encoding
- True Day & Night ICR
- IP67 Ingress Protection
- Up to 165 ft. IR Illumination
- Motorized 5mm - 50mm Lens
- 3D DNR, True WDR, HLC, BLC and ROI Encoding
- Supports Triple Streams
- Supports Audio Input and Output
- Supports Alarm Output and Input
- Supports Remote Access with Windows, macOS, iOS and Android
- Operating Temperature: -22°F - 131°F
- DC12V / PoE (802.3af)
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- Built-in Reset Button
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1/5" Progressive Scan CMOS |
| Resolution | 5MP |
| Image Size | 2592 x 1944 |
| Min. Illumination | Color: 0.05lux @ F1.2(AGC ON) BW: 0lux w IR ON |
| Shutter Speed | 1/20,000s ~ 1/5s |
| Slow Shutter | Supported |
| IR Distance | Up to 165ft. (50m) |
| Lens | Motorized 5 - 50 mm |
| Field of View | Horizontal: 101~ 32°, Vertical: 71 ~ 23°, Diagonal: 129 ~ 40° |
| WDR | 120dB |
| VIDEO STREAM | |
| Max. Image Resolution | 2592 x 1944 @ 30fps |
| Supported Resolutions | 2592 x 1944, 1920 x 1080, 1280 × 720, 640 x 480, 320 x 240 |
| Main Stream | 2592 x 1944, 1920 x 1080, 1280 × 720 |
| Sub Stream | 720P(1280x720), VGA(640x480), QVGA(320x240) |
| Mobile Stream | VGA(640x480), QVGA(320x240) |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | 128 Kbps ~ 8 Mbps (CBR / VBR Adjustable) |
| Max. Framerate | 50Hz: 25fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| NETWORK | |
| Ethernet | 1 x RJ45 10M / 100M Ethernet Port |
| ONVIF | ONVIF Profile S / G |
| Protocol | HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP |
| Security | IP Address Filter; Complicated Password; Authenticated Username and Password |
| IMAGE | |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Schedule) |
| True WDR | Yes |
| Digital NR | Yes (3D DNR) |
| Backlight Compensation (BLC) | Off/On (5 Zone) |
| Motion Detection | Off/On (8 Level) |
| Gain Control | Auto |
| White Balance | Auto/Manual/Indoor |
| Privacy Mask | Off/On (4 Zone, Rectangle) |
| Flip / Mirror | Flip/Rotation |
| Sharpness | Yes |
| Image Setting | Yes |
| Language | Support for English and Korean |
| VIDEO ANALYTICS | |
| Supported Recorders | Diversity Series |
| On-Board Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Alarm/Audio | 1 input, 1 output / 1 input (RCA), 1 output (RCA) |
| Hardware Reset | Yes |
| Smart Feature | PID,LCD,PD/VD,FD |
| Smart Events | Human Detection, Face Detection, Vehicle Detection |
| Alarm Link Events | Motion Detection, Sensor Alarm |
| GENERAL | |
| Angle Adjustment | Any Angle |
| Input Voltage | DC 12V / PoE (802.3af) |
| Power Consumption | ≤6W |
| Ingress Protection | IP67 |
| Weight | 0.7lbs |
| Working Temperature | -22°~131° F (-30°~55° Celcius) |
| Dimensions | 11.79" x 4.25" (299.5mm x 108.0mm) |
