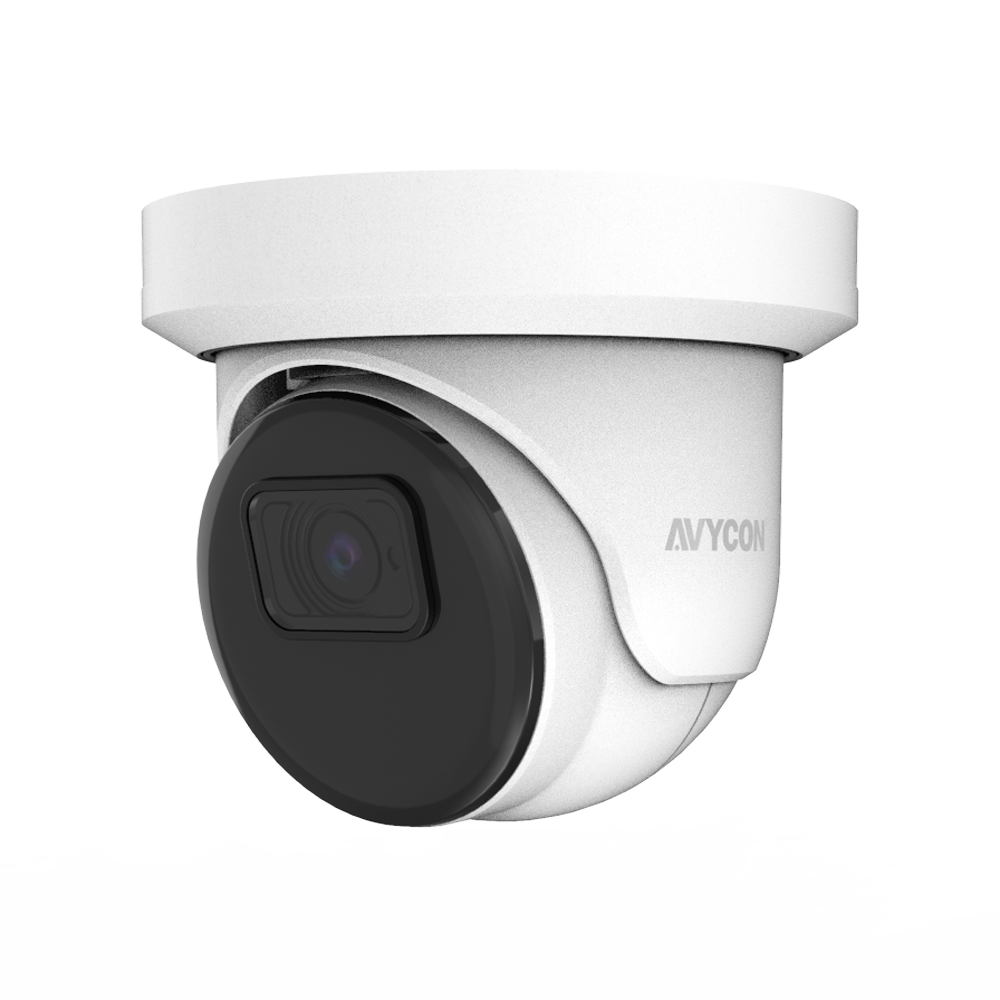

AVYCON - AVC-NPE51F36 - 5MP H.265 Fixed Eyeball Network Camera
Part number:
AVC-NPE51F36
Price:
5MP (2592x1944), H.265+ Turret IP Camera, InfiniteStar™, True WDR, AI, 5MP@30FPS, Triple Stream, 3.6mm Lens, 66ft Smart IR's, Audio In/Out, Built-in MIC, MicroSD, Onvif, DC12V / PoE, IP67, White.
Features:
- 5MP (2880x1620) @ 30fps
- Max. Resolution: 2880x1620
- H.265+/H.265, H.264+/H.264 Encoding
- True Day & Night ICR
- Up to 98 ft. IR Illumination
- Fixed 3.6mm Lens
- 3D DNR, True WDR, HLC, BLC and ROI Encoding
- Supports Triple Streams
- Built-in MIC
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- IP67 Ingress Protection
- DC12V/PoE (802.3af, ≤6W)
- Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 5MP |
| Image Size | 2880x1620 |
| Min. Illumination | Color: 0.05 lux @ F1.2 (AGC ON) BW: 0 lux w IR ON |
| Shutter Speed | 1/20,000s ~ 1/5s |
| Slow Shutter | Supported |
| IR Distance | Up to 98ft. (30m) |
| Lens | Fixed 3.6mm |
| Field of View | 87.4° |
| WDR | 120dB |
| VIDEO STREAM | |
| Max. Image Resolution | 2880x1620 @ 30fps |
| Main Stream | 2880x1620, 2560x1440, 2304x1296, 1920x1080, 1280x720 |
| Sub Stream | 720P (1280x720), VGA (640x480), QVGA (320x240) |
| Mobile Stream | VGA (640x480), QVGA (320x240） |
| Video Compression | H.265+/H.265, H.264+/H.264 |
| Video Bit Rate | 128 Kbps~8 Mbps (CBR / VBR Adjustable) |
| Max. Framerate | 50Hz: 25fps @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA 60Hz: 30fps @ 5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| NETWORK | |
| Ethernet | 1 x RJ45 10M/100M (Base-T) |
| ONVIF | ONVIF (Profile S/G/T,20.06) |
| Protocol | HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP |
| Security | IP Address Filter; Complicated Password; Authenticated Username and Password |
| IMAGE | |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Schedule) |
| True WDR | Yes |
| Digital NR | Yes (3D DNR) |
| Backlight Compensation (BLC) | Off/On (5 Zone) |
| Motion Detection | Off/On (8 Level) |
| Gain Control | Auto |
| White Balance | Auto / Manual / Indoor |
| Privacy Mask | Off/On (4 Zone, Rectangle) |
| Flip / Mirror | Flip / Corridor / Rotation |
| Sharpness | Yes |
| Image Setting | Yes |
| Language | Support for English and Korean |
| VIDEO ANALYTICS | |
| On-Board Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Alarm/Audio | No / Built-in Microphone |
| Hardware Reset | Yes |
| Smart Feature | Face Detection (FD), Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Tripwire Counting (TC), Stationary Object Detection (OBJ), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD), License Plate Detection (LPR), Rare Sound Detection (RSD) |
| Smart Events | Motion, Sound Detection |
| Alarm Link Events | Motion Detection |
| GENERAL | |
| Angle Adjustment | Manual Adjustment |
| Input Voltage | DC 12V/PoE (802.3af) |
| Power Consumption | ≤6W |
| Ingress Protection | IP67 |
| Working Temperature | -22°~131°F (-30°~55°C) |
| Dimensions | 3.92x3.32in (100.5x85.2mm) |
