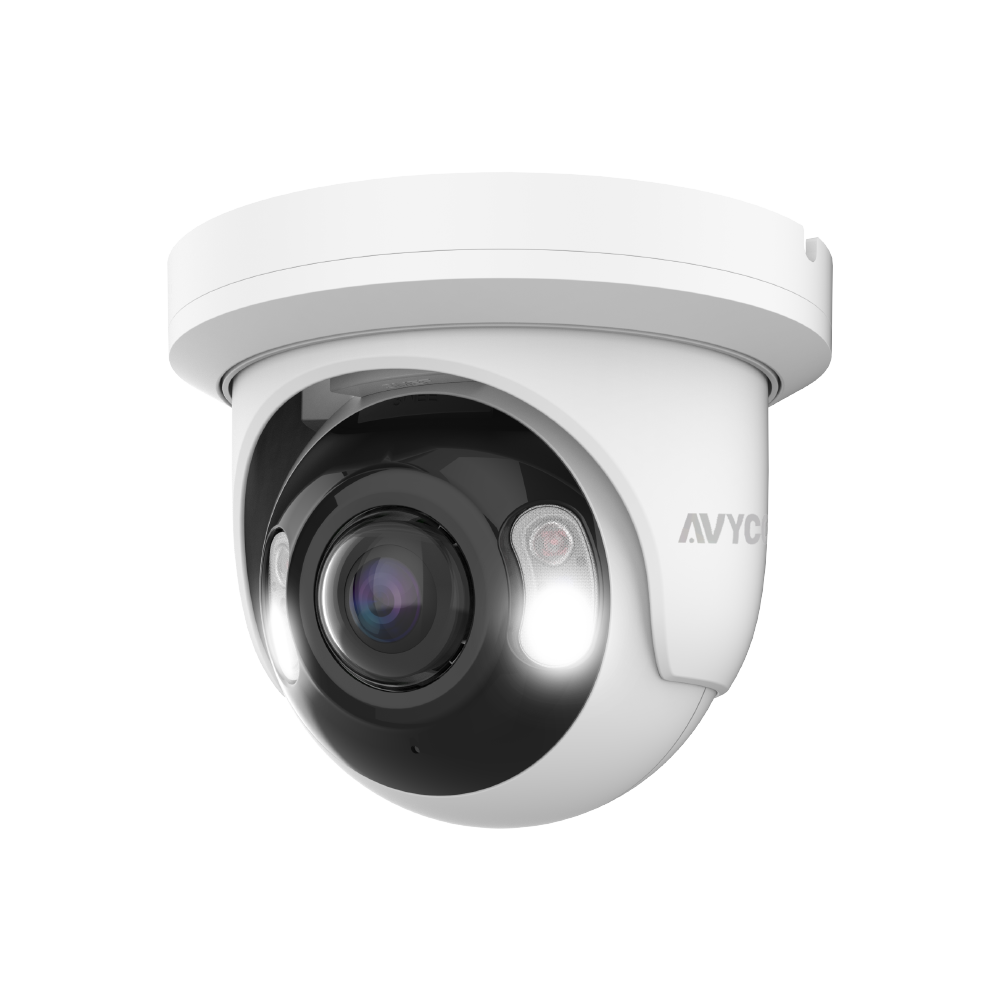

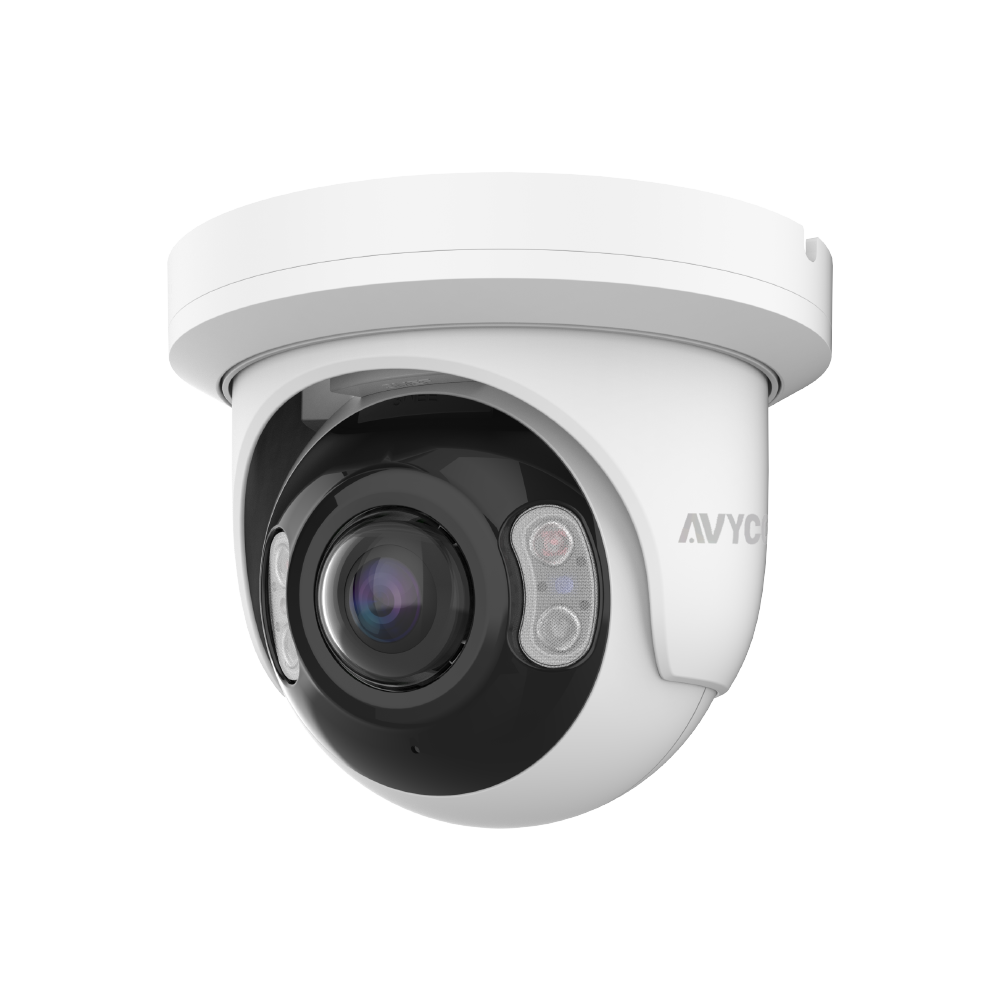

AVYCON - AVC-NPE81F180 - 8MP H.265 Panoramic Turret Network Camera
AVYCON - AVC-NPE81F180 - 8MP H.265 Panoramic Turret Network Camera
Part number:
AVC-NPE81F180
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

8MP (4K), H.265+ InfiniteColor, Panoramic Turret AI Diversity IP Camera, True WDR, 8MP@20FPS, Full Color (white light), Built-in Mic, Speaker (2-way), Siren, 180 Panoramic Lens, MicroSD, Onvif, DC12V / PoE, IP67, White.



Features:

  • 8MP (3840x2160) H.265+, H.265, H.264+, H.264, MJPEG
  • Max. resolution: 3840×2160
  • Full Color / Active Deterrence Camera
  • 2.0mm Fixed Lens (F2.4)
  • 3D DNR, WDR, HLC, BLC, ROI encoding
  • Intelligent Analytics

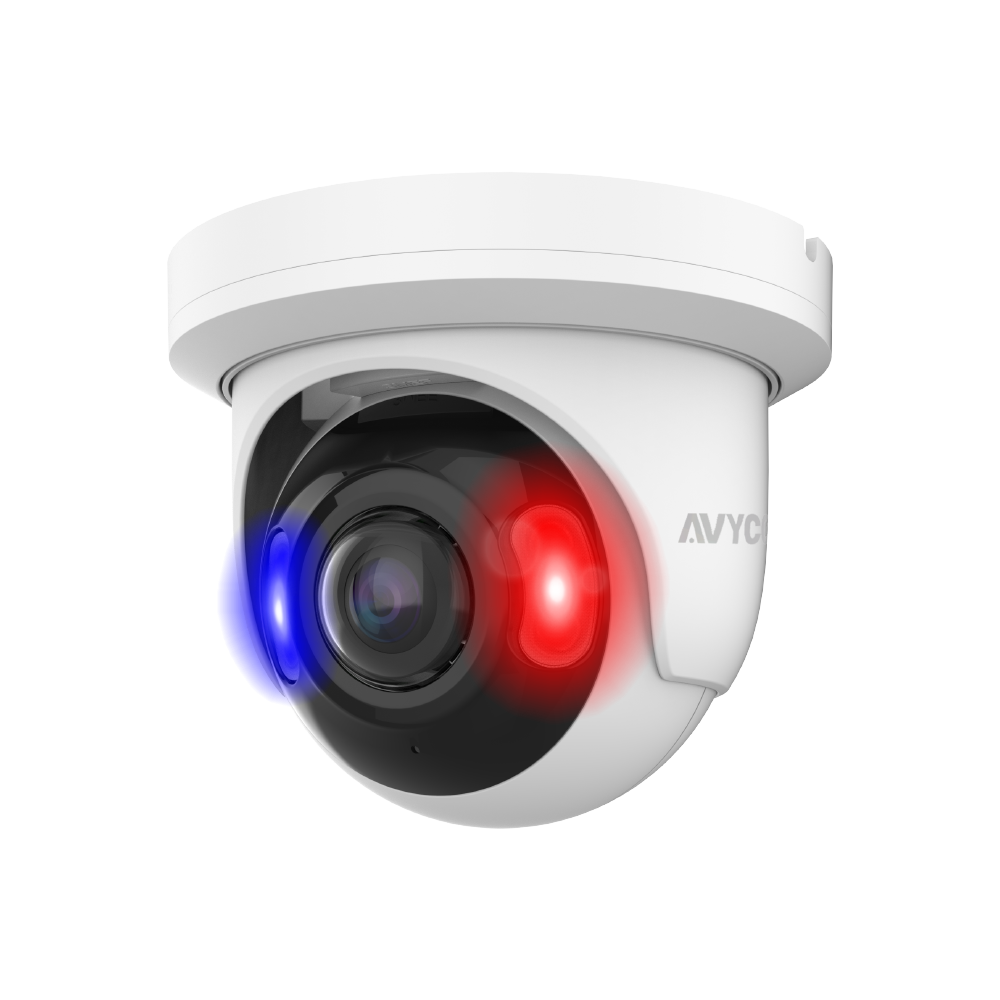

  • White Light LED / Strobe (Blue & Red) Light
  • Built-in MIC / Speaker
  • Built-in micro SD card slot with video and still image capture function (up to 256GB)
  • IP67 ingress protection
  • DC12V/PoE power supply
  • Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)
VIDEO
Imaging Device1/2.8" Progressive CMOS
ResolutionMain Stream: 8MP (3840x2160), 5MP (2592x1944), 5MP (3072x1728), 4MP (2592x1520), 3MP (2304x1296),1080P (1920x1080),
960P (1280x960), 720P (1280x720)
Sub Stream: 720P (1280x720), VGA (640x480)
Mobile Stream: VGA (640x480)
Max. FramerateMain Stream: Max. 20fps (60Hz/50Hz)
Sub Stream: Max. 20fps (60Hz/50Hz)
Mobile Stream: Max. 20fps (60Hz/50Hz)
Min. IlluminationColor: 0.007 lux @ F1.0 (AGC on)
B/W: 0 lux (IR LED on)
CompressionVideo: H.265+/H.265 Main Profile, H.264+/H.264 High Profile, MJPEG (Sub Stream Only)
Audio: G.711a / G.711u
Bitrate ControlCBR or VBR (256Kbps ~ 16Mbps)
LENS
Focal Length (Zoom Ratio)2.0mm Fixed
Max. Aperture RatioF2.4
Angular Field of ViewHorizontal: 180°, Vertical: 91°, Diagonal: 180°
Min. Object Distance1.97ft (0.6M)
Focus ControlN/A
Lens TypeFixed (M12)
PAN / TILT / ROTATE
Pan / Tilt / Rotate AdjustmentManual Adjustment
OPERATIONAL
Camera TitleTitle displayed up to 32 characters
Day & NightAUTO (ICR) / Full Color Mode
Exposure CompensationBLC, HLC, WDR
Digital Noise Reduction3D DNR
Digital Image StabilizationN/A
Motion DetectionRectangle Grid (8 Levels of Sensitivity)
Privacy Masking4 Rectangle Zones
Gain ControlAUTO
White BalanceAUTO / MANUAL
LDCN/A
Eletronic Shutter SpeedAUTO / Manual (1/5 ~ 1/20000s)
Video RotationFlip / Mirror
AnalyticsPedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Tripwire Counting (TC),
Stationary Object Detection (OBJ), Heat Map (HM), Rare Sound Detection (RSD)
Alarm I/OBuilt-in Red & Blue Flashing Lights
Alarm TriggersMotion, Sound Detection
Alarm EventsNotification via E-mail, Image file upload via FTP, Video file upload via FTP, Image file upload to Cloud (Dropbox),
Video file upload to Cloud (Dropbox), Micro SD recording at event triggered, Event Push via HTTP / UDP
Audio InBuilt-in MIC
Audio OutBuilt-in Speaker
IR Viewable LengthMax. 91ft (25M) / White Light LED Max. 49ft (15M)
NETWORK
EthernetRJ45 (10/100BASE-T)
StreamingUnicast / Multicast
ProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
SecurityIP Address Filtering, Complicated Password, Authenticated Username and Password
Application Programming InterfaceONVIF Profile S/G/T
GENERAL
Webpage LanguageEnglish, Korean
Edge StorageMicro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
MemoryN/A
ENVIRONMENTAL & ELECTRICAL
Operating Temperature / Humidity-31°~140°F (-35°~+60°C) / less than ≤ 95% RH
Storage Temperature / Humidity
CertificationIP67
Input VoltagePoE (IEEE802.3at) / 12VDC
Power ConsumptionMax. 12W
MECHANICAL
Color / MaterialWhite / Metal
Product Dimensions / WeightØ4.59x3.85in (116.5x97.7mm) / TBD
DORI (EN62676-4 STANDARD)
Detect (25PPM / 8PPF)
Observe (63PPM / 19PPF)
Recognize (125PPM / 38PPF)
Identify (250PPM / 76PPF)
