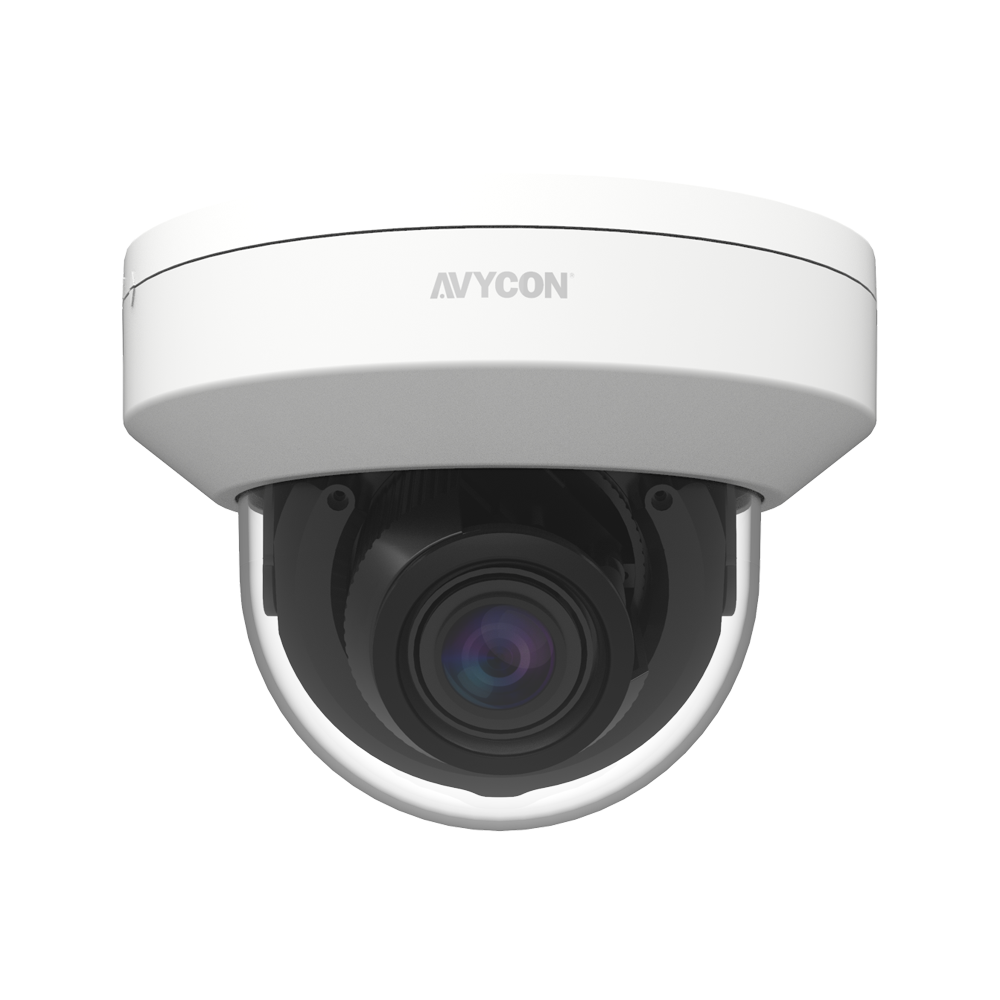

AVYCON - AVC-NSD51M - 5MP H.265 Motorized Lens Indoor Dome Network Camera
Part number:
AVC-NSD51M
Price:
The AVYCON AVC-NSD51M camera is a 5MP H.265 Indoor Dome Network Camera. This 5MP IP camera supports True Day and Night mode, PoE, up to 147ft. of Smart IR Illumination, and also incorporates an InfiniteStar sensor which allows viewing of video in the lowest of light environments, even in color. This camera includes a Motorized 2.7-13.5mm Lens with Auto-focus capabilities that can be controlled through a NVR. Also standard with this series is Digital NR, ROI, HLC, True WDR, and BLC capabilities. Optional accessories for this camera include a Junction Box Mount. Includes a MicroSD memory card slot for standalone recording applications.
Features:
- 5MP ( 2592 x 1944 ) @ 30fps
- Max. Resolution: 2592 x 1944
- Supports Smart H.265/H.264 Encoding
- True Day & Night ICR
- Up to 147 ft. IR Illumination
- Motorized 2.7-13.5mm A/F Lens
- 3D DNR, True WDR, HLC, BLC and ROI Encoding
- Supports Triple Streams
- Supports Remote Access with Windows, macOS, iOS and Android
- Operating Temperature: -22°F - 131°F(-30°- 55° C)
- DC12V / PoE (802.3af, < 6W)
- Built-in MicroSD Card Slot
- Built-in Reset Button
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 5MP |
| Image Size | 2592 x 1944 |
| Min. Illumination | Color: 0.05lux @ F1.2(AGC ON) BW: 0lux w IR ON |
| Shutter Speed | 1/20,000s ~ 1/5s |
| Slow Shutter | Supported |
| IR Distance | Up to 147ft |
| Lens | Motorized 2.7 - 13.5 mm |
| Field of View | Horizontal: 101 ~ 32°, Vertical: 71 ~ 23°, Diagonal: 129 ~ 40° |
| WDR | 120dB |
| VIDEO STREAM | |
| Max. Image Resolution | 2592 x 1944 @ 30fps |
| Supported Resolutions | 2592 x 1944, 1920 x 1080, 1280 × 720, 640 x 480, 320 x 240 |
| Main Stream | 2592 x 1944, 1920 x 1080, 1280 × 720 |
| Sub Stream | 1280 × 720, 640 x 480, 320 x 240 |
| Mobile Stream | 640 x 480, 320 x 240 |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | 128 Kbps ~ 8 Mbps (CBR / VBR Adjustable) |
| Max. Framerate | 50Hz: 25fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA, 60Hz: 30fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| NETWORK | |
| Ethernet | 1 x RJ45 10M / 100M(BASE-T) |
| ONVIF | ONVIF( Profile S/G/T, 20.06) |
| Protocol | HTTP, HTTPs, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, PPPoE, DHCP |
| Security | IP Address Filter; Complicated Password; Authenticated Username and Password |
| IMAGE | |
| Day & Night | IR cut filter with auto switch (Day/Night/Auto/Schedule) |
| True WDR | Yes |
| Digital NR | Yes (3D DNR) |
| Backlight Compensation (BLC) | Off/On (5 Zone) |
| Motion Detection | Off/On (8 Level) |
| Gain Control | Auto |
| White Balance | Auto/Manual/Indoor |
| Privacy Mask | Off/On (4 Zone, Rectangle) |
| Flip / Mirror | Flip/Rotation |
| Sharpness | Yes |
| Image Setting | Yes |
| Language | Support for English and Korean |
| VIDEO ANALYTICS | |
| Supported Recorders | Diversity Series |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm/Audio | 1 input, 1 output / 1 input (RCA), 1 output (RCA) |
| Hardware Reset | Yes |
| Smart Feature | PID,LCD,PD/VD,FD |
| Smart Events | Human Detection, Face Detection, Vehicle Detection |
| Alarm Link Events | Motion Detection, Sensor Alarm |
| GENERAL | |
| Angle Adjustment | Any Angle |
| Input Voltage | DC 12V / PoE (802.3af) |
| Power Consumption | ≤6W |
| Weight | 0.7lbs |
| Working Temperature | -22°~131° F (-30°~55° Celcius) |
| Dimensions | Ø4.41" x 5.91" |
