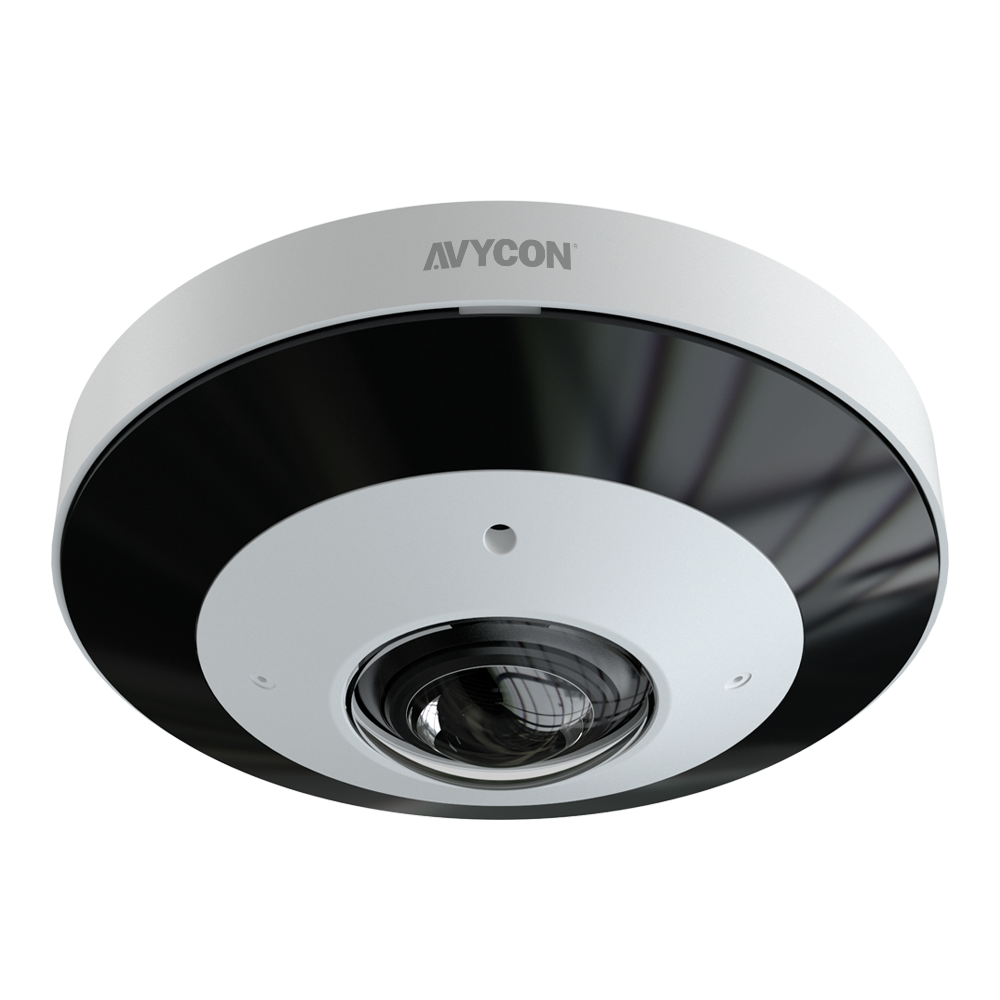

AVYCON - AVC-PNN61FLT - 6MP H.265 Weatherproof Fisheye IP Camera
Part number:
AVC-PNN61FLT
Price:
(NDAA) 6MP FishEye Camera, 180/360 support, 3 ePTZ support, Full Dewarp through AVR-HN516P16C model and higher, 3 IR LED's, 1 Audio in, Built-in MIC, DC12V, PoE Built-in.
Features:
- 6MP (2160x2160) @ 30fps
- Max. resolution: 2160x2160
- Supports H.265/H.264, MJPEG Video Compression
- 360° Fisheye Lens, Panoramic View, e-PTZ Function
- Smart IR Illumination Up to 100ft.
- True Day/Night ICR Auto Switch
- DNR, Digital WDR, 8 ROI Encoding, HLC & BLC
- Smart Alarm with Motion and Sensor Features
- Built-in micro SD card slot with video and still image capture function (up to 256GB)
- Built-in MIC
- IP67 ingress protection
- DC 12V(±10%) / PoE(802.3af) < 12W
- Support remote monitoring by AVYCON ONE
- (Mobile APP) and AVYCON CMSONE (CMS)
Compatible NVR Models:
- All Diversity Series NVR’s
- AVR-NSV04P4
- AVR-NSV08P8
- AVR-NSV16P16
- AVR-NSV32P16 (local dewarping support)
- AVR-NSV16E2N
- AVR-NSV32E2N (local dewarping support)
- AVR-NSV64E2N (local dewarping support)
- AVR-NSV256E2N (local dewarping support)
Plug & Play Series NVR’s:
- AVR-HN816P16C-FD (local dewarping support)
- AVR-NN832E2N-FD
- AVR-HN564E2NR (local dewarping support)
- AVR-HN5128E2N-FD (local dewarping support)
| CAMERA | |
| Image Device | 1/2.9" Progressive CMOS |
| Resolution | 6MP |
| Image Size | 2160x2160 |
| Electronic Shutter | 1/25s to 1/100,000s |
| Lens | PAL / NTSC |
| IR Distance | Up to 100ft. (30m) |
| Day & Night | TRUE |
| Wide Dynamic Range | Digital WDR |
| Digital NR | Yes |
| Backlight Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Sharpness | Yes |
| ROI | Yes |
| VIDEO STREAM | |
| Max. Image Resolution | 2160x2160 |
| Primary Stream | Fisheye (2160x2160) |
| Panorama (2160x2160) | |
| Fisheye + 3 PTZ Mode: (2160x2160, 1920x1920, 1440x1440) @ 30fps / (1920x1080) @ 30fps / (960x540) @ 30fps x 3 | |
| Panorama + 3 PTZ Mode: (2160x2160, 1920x1920, 1440x1440) @ 30fps / (1920x1080) @ 30fps / (960x540) @ 30fps x 3 | |
| Video Compression | H.265 / H.264 / MJPEG |
| Video Bit Rate | 256Kbps ~ 10240Kbps (CBR / VBR Adjustable) |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, etc. (Adjustable through Software or Browser) |
| NETWORK | |
| Ethernet | 1 x RJ45 10M / 100M Ethernet Port |
| Network Storage | Network Remote Storage |
| Remote Monitoring | Web Browser Interface, AVYCON CVMS / CVMS 2.0 |
| Online Connections | Supports Up to 10 Concurrent Users |
| Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| AUDIO | |
| Mirror Image | G.711A/U |
| Smart IR (Anti-SAT) | 8Kbps ~ 48Kbps |
| Image Setting | 1 channel audio input; 1 channel audio output; 1 channel built-in MIC |
| SYSTEM | |
| Alarm | Yes |
| Alarm I/O | 1 Input / 1 Output |
| Local Storage | Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function |
| Smart Alarm | Motion Alarm, Sensor Alarm |
| PoE | 802.3af, <12W |
| GENERAL | |
| Supported Protocols | ONVIF |
| Input Voltage | DC 12V(±10%) / PoE(802.3af) |
| Power Consumption | <12W |
| Ingress Protection | IP67 |
| Working Environment | -22°~122°F (-30°~50°C) |
| Working Humidity | 10~90% (Non-Condensing) |
| Weight | 0.95lbs |
| Dimensions | Ø5.14x1.82in (Ø130.6x46.3mm) |
