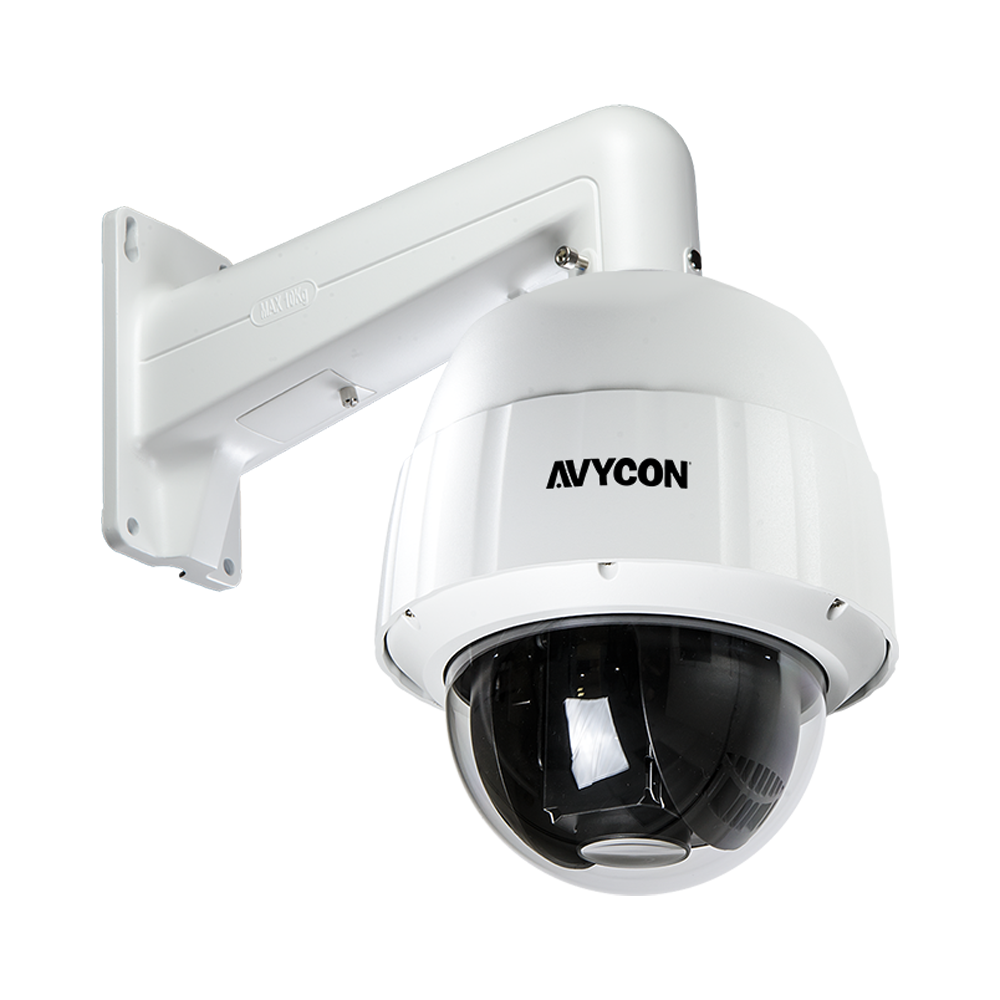

AVYCON - AVC-PT92X30C - HD-TVI IN/Outdoor 30x Ptz Camera Ceiling Mount
Part number:
AVC-PT92X30C
Price:
2.4MP, PTZ 1080P HD-TVI, 30X Optical 4~120mm A/F Zoom Lens, 16X Digital, WDR, UTC, OSD, AC24V, Ceiling Mount
Features:
- 0 Lux Minimum Illumination
- Ir Light Mtbf Reaching Up To 30,000 Hours
- 1/3” High Performance Cmos, Up To 1920x1080 Resolution
- ±0.1° Preset Accuracy
- Self-adaptive To Pelco-p/D Protocol
- 3d Intelligent Positioning Function
- Power-off Memory Function: Restore Ptz & Lens Status After Reboot
- Built-in Temperature Sensor, With Display Of Internal Temperature
- Lightning Protection, Surge Protection And Voltage Transient Protection
- Ip66 Standard (Outdoor Dome)
- Impact Protection: Iec60068-2-75 Test, Eh, 20j; En50102, Up To Ik10
- Rs-485 Communication Diagnosis
- Scheduled Ptz Movement
- Utc (Up The Coax) Function
- Auto Focus, Auto White Balance, Backlight Compensation And
- Auto/Manual Day & Night Switch
- Privacy Masks Programmable
- 3d Dnr, Digital Wdr
- 360° Endless Pan Range And -5°-90° Tilt Range
- 300°/S Pan Preset Speed And 200°/S Tilt Preset Speed
- 0.1°-250°/S Manual Pan Speed And 0.1°-150°/S Manual Tilt Speed
- 256 Presets Programmable; Preset Image Freezing Capability
- 8 Patrols, Up To 32 Presets Per Patrol
- 4 Patterns, With The Total Recording Time Not Less Than 10 Minutes
- Proportional Zoom Function
- Park Action: Auto Call Up Of Ptz Movement, After A Defined Time Of Inactivity
| GENERAL | |
| IMAGE SENSOR | 1/3" CMOS |
| MAX. IMAGE RESOLUTION | 1920 (H) × 1080 (V) = 2.07M |
| FRAME RATE | 50HZ:25FPS(1280X1080) / 60HZ:30FPS(1280X1080) |
| MIN.ILLUMINATION | COLOR: 0.02LUX@(F1.6,AGC ON), B/W: 0.002LUX@(F1.6,AGC ON), 0 LUX WITH IR |
| HD VIDEO OUTPUT | 1 HD-TVI OUT (UP TO 1200FT WITH RG59U 95%) |
| WHITE BALANCE | AUTO / MANUAL / ATW / INDOOR / OUTDOOR |
| S/N RATIO | 50dB |
| 3D DNR | SUPPORT |
| WDR | DIGITAL WDR |
| SHUTTER TIME | PAL: 1-1/10,000S, NTSC: 1-1/10,000S |
| DAY & NIGHT | IR CUT FILTER |
| OPTICAL ZOOM | 30X |
| DIGITAL ZOOM | 16X |
| PRIVACY MASK | 8 PRIVACY MASKS PROGRAMMABLE; A MAXIMUM OF 8 ZONES CAN BE MASKED |
| SIMULTANEOUSLY ON THE SAME VIDEO SCREEN | |
| FOCUS MODEL | AUTO / SEMIAUTOMATIC / MANUAL |
| FOCAL LENGTH | 4-120mm, 30X |
| ZOOM SPEED | APPROX.3.0S(OPTICAL WIDE-TELE) |
| ANGLE OF VIEW | 58-21.7 DEGREE(WIDE-TELE) |
| MIN. WORKING DISTANCE | 10-1500mm (WIDE-TELE) |
| APERTURE | F1.6-F4.4 |
| PAN RANGE | 360° ENDLESS |
| PAN SPEED | PAN MANUAL SPEED: 0.1°-160°/S, PAN PRESET SPEED: 240°/S |
| TILT RANGE | -15°-90° (AUTO FLIP ) |
| TILT SPEED | TILT MANUAL SPEED: 0.1°-120°/S, TILT PRESET SPEED: 200°/S |
| RS-485 COMMUNICATION DIAGNOSIS | PELCO-P, PELCO-D, OSD (UTC CONTROL) VIA DVR |
| PROPORTIONAL ZOOM | ROTATION SPEED CAN BE ADJUSTED AUTOMATICALLY ACCORDING TO ZOOM MULTIPLES |
| NUMBER OF PRESET | 256 |
| PATROL | 8 PATROLS, UP TO 32 PRESETS PER PATROL |
| PATTERN | 4 PATTERNS, WITH THE TOTAL RECORDING TIME NOT LESS THAN 10 MINUTES |
| POWER-OFF MEMORY | SUPPORT |
| PARK ACTION | PRESET / PATROL / PATTERN / PAN SCAN / TILT SCAN / FRAME SCAN / RANDOM SCAN |
| / PANORAMA SCAN | |
| PTZ POSITION DISPLAY | ON / OFF |
| PRESET FREEZING | SUPPORT |
| SCHEDULED TASK | PRESET / PATROL / PATTERN / PAN SCAN / TILT SCAN / FRAME SCAN / RANDOM |
| SCAN / PANORAMA SCAN | |
| MONITOR OUTPUT | 1 TURBO HD1080P OUTPUT, 1.0V[P-P] / 75Ω, NTSC (OR PAL) COMPOSITE, BNC |
| RS-485 INTERFACE | HALF-DUPLEX MODE, SELF-ADAPTIVE HIKVISION, PELCO-P, PELCO-D PROTOCOL |
| POWER | 24VAC(FOR –A MOEL), MAX. 30W(IR: 9W, HEATER: 6W) |
| WORKING TEMPERATURE / HUMIDITY | -30 °C-65°C(-22°F-149°F) 90% OR LESS |
| PROTECTION LEVEL | IP66 STANDARD |
| TVS 4,000V LIGHTNING PROTECTION, SURGE PROTECTION AND VOLTAGE | |
| TRANSIENT PROTECTION | |
| MOUNTING | VARIOUS MOUNTING MODES OPTIONAL |
| DIMENSIONS | Φ220×353.4mm (Φ8.66”×13.91”) |
| WEIGHT | 12.13LBS |
