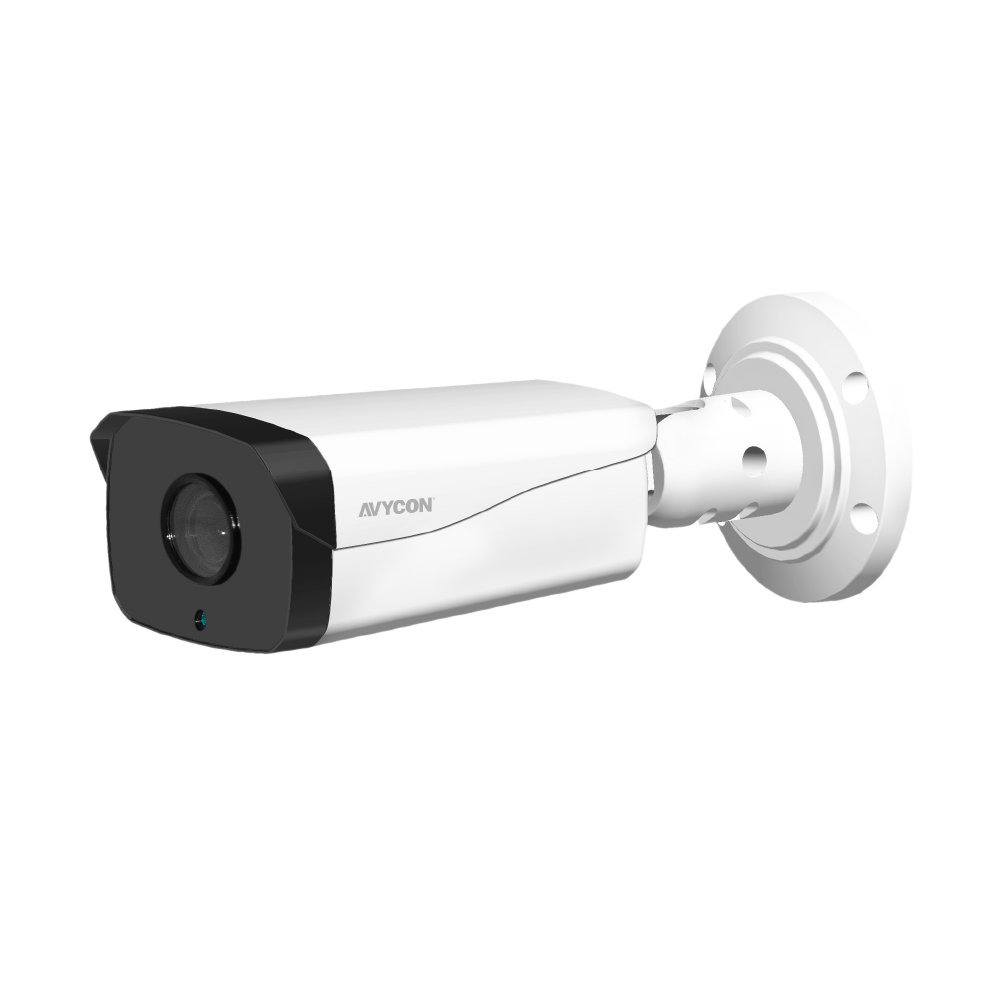

AVYCON - AVC-TBL52M50 - 5MP HD LPR Bullet Camera
Part number:
AVC-TBL52M50
Price:
5MP (2688x1944), Bullet LPR Camera, 4-in-1, HD-TVI (default), CVI, AHD, ANALOG (960H), 6.0-50mm Motorized A/F Lens, 150ft Smart IR's, WDR, UTC, OSD, HLC, DC12V/AC24V, IP67, White
Features:
- 1/2.8" 5M Progressive Scan Sony CMOS
- Supports four video singnal output (5MP TVI / 5MP AHD /
- 4MP CVI / 960H CVBS), default video output is TVI
- 12PCs Super High Power IR LEDs
- IR Range: Up to 150ft
- 6-50mm Motorized Varifocal IR Lens
- Support Dip switch for signal changes
- Features: Defog, BLC, HLC, WDR, DNR, SENS-UP,
- MOTION, MIRROR, PRIVACY, UTC, DC12V & AC24V
- IP67 Certification
- Product designed by AVYCON in California
| CAMERA | |
| Image Sensor | 1/2.8" 5M Progressive Scan Sony CMOS |
| Resolution | 5MP |
| Image Size | 2688x1944 |
| Video Output | HD-TVI (AHD / CVI / CVBS) |
| Image System | PAL: 50Hz / NTSC: 60Hz |
| S/N Ratio | ≥56dB |
| IR Distance | Up to 150ft |
| Min. Illumination | 0 Lux (with 12pcs high power LED on) |
| Lens | 6-50mm Motorized Varifocal IR Lens |
| Electronic Shutter | NTSC: 1/30-1/30,000SP |
| AL: 1/25-1/30,000S | |
| Filter | Removable IR Cut Filter |
| IMAGE | |
| Day & Night | AUTO / Color / BW / Ext |
| WDR | OFF/ON |
| DNR | OFF / LOW / MIDDLE / HIGH |
| Auto Gain Control ( AGC) | ON |
| White Balance | AUTO / AUTOext / PRESET / MANUAL |
| Backlight Compensation (BLC) | OFF/ON |
| Defog | OFF/ON |
| HLC | OFF/ON |
| MOTION | OFF/ON |
| MIRROR | OFF/ON |
| Gamma | 0.45 |
| GENERAL | |
| Scanning System | Progressive |
| Privacy | 16 region |
| MECHANICAL | |
| IP Rating | IP67 |
| Power Supply | DC12V & AC24V |
| Current Consumption | DC12V: 910mA (MAX), AC24V: 410mA (MAX) |
| Dimension | 10.6 x 4.4 x 4.2in (268.5 x 111 x 107mm) |
| Weight | 2.87lbs (1300g) |
| Storage Temperature | -22~+140°F (-30~+60°C) |
| Operating Temperature | -22~+104°F (-30~+40°C) |
