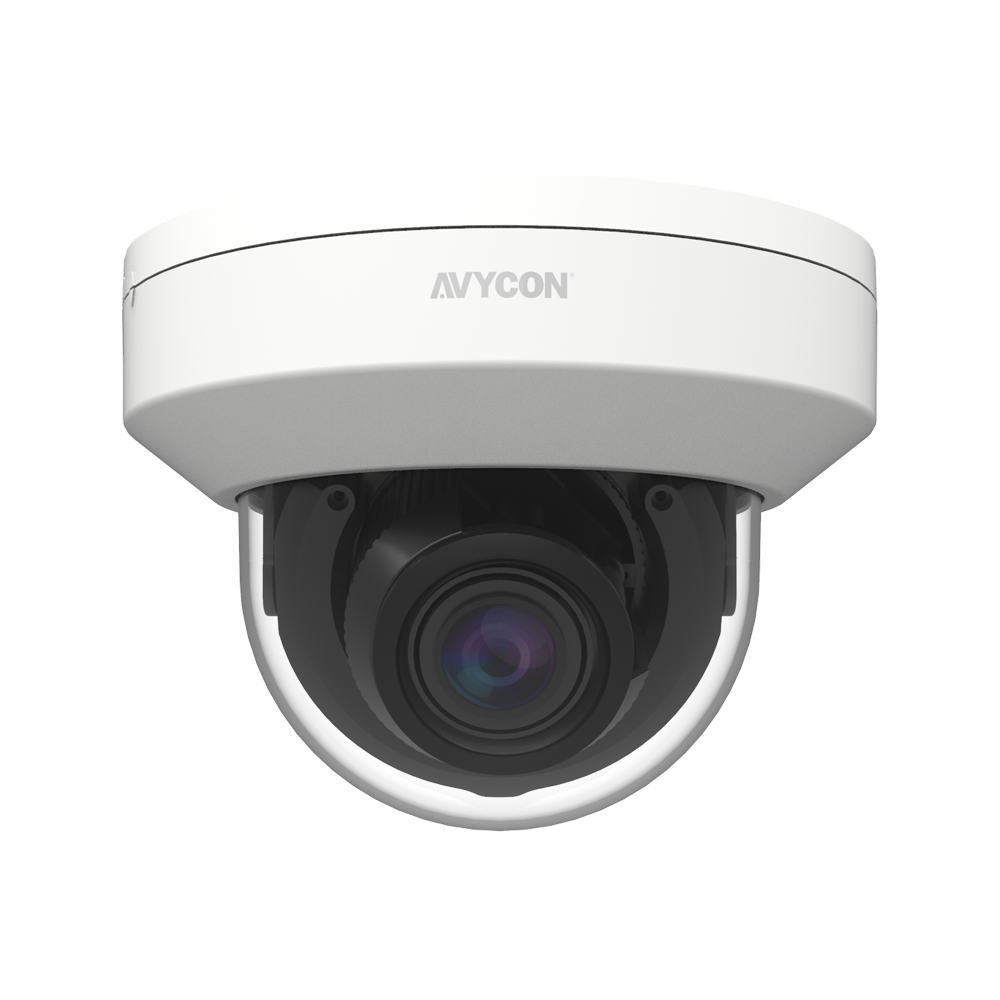

AVYCON - AVC-TD82M - 8MP HD-TVI Motorized Indoor Dome Camera
Part number:
AVC-TD82M
Price:
Our Second Generation HD-TVI Series continues providing the quality expected from the AVYCON brand. This 8MP camera includes an upgraded Smart IR LED array, new DIP switch design for easily changing video formats (HD-TVI, CVI, AHD and Analog). With the newest generation chipset and board design, we have also increased power efficiency with a possible 20% savings in consumption. Also standard with this series is Digital NR, AGC, DWDR, and BLC capabilities.
Features:
- 8MP HD-TVI (default), CVI, AHD, ANALOG (960H)
- Maximum Resolution: 3840 x 2160
- 2.7-13.5 mm, Motorized Lens
- Smart IR Illumination Up to 115 ft.
- True Day/Night
- Digital WDR
- Digital NR
- AGC
- BLC
- DIP Switch
- DC12V / AC24V
- 15 FPS
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 8MP |
| Image Size | 3840 x 2160 |
| Video Output | 1-channel BNC Video Output |
| Image System | PAL / NTSC |
| Electronic Shutter | 1/15s to 1/50,000s |
| IR Distance | Up to 115ft. |
| Video Formats | HD-TVI / AHD / CVI / CVBS (Analog) |
| Frame Rate | HD-TVI / AHD / CVI / CVBS (Analog): 15 FPS |
| Min. Illumination | 0.05luxF1.2 (AGC ON), 0Lux with IR ON |
| Lens | Motorized 2.7 - 13.5mm Lens |
| Lens Mount | φ14mm |
| Horizontal Field of View | 115.9° (W) -33.8° (T) |
| S/N Ratio | 39dB |
| Function Control | OSD, Control over Coax (UTC) |
| IMAGE | |
| Day & Night | EXT / Auto / Color / BW (Black and White) |
| Digital WDR | Yes |
| Digital NR | Yes (3D DNR) |
| Auto Gain Control (AGC) | Yes |
| Auto White Balance (AWB) | Yes |
| Backlight Compensation (BLC) | Yes |
| Edge Brightness Compensation | Yes |
| Defog | No |
| HLC | Yes |
| Sharpness | Yes |
| Mirror Image | Yes |
| Smart IR (Anti-SAT) | Yes |
| Image Setting | Yes |
| Defect Correction | Auto / Manual |
| GENERAL | |
| Angle Adjustment | Any Angle |
| Input Voltage | DC 12V / AC24V (±10%) |
| Power Consumption | Maximum 6W |
| Working Environment | -22°~122° F (-30°~50° Celcius) |
| Dimensions | Ø5.74” x 4.29" (Ø146mm x 109mm) |
