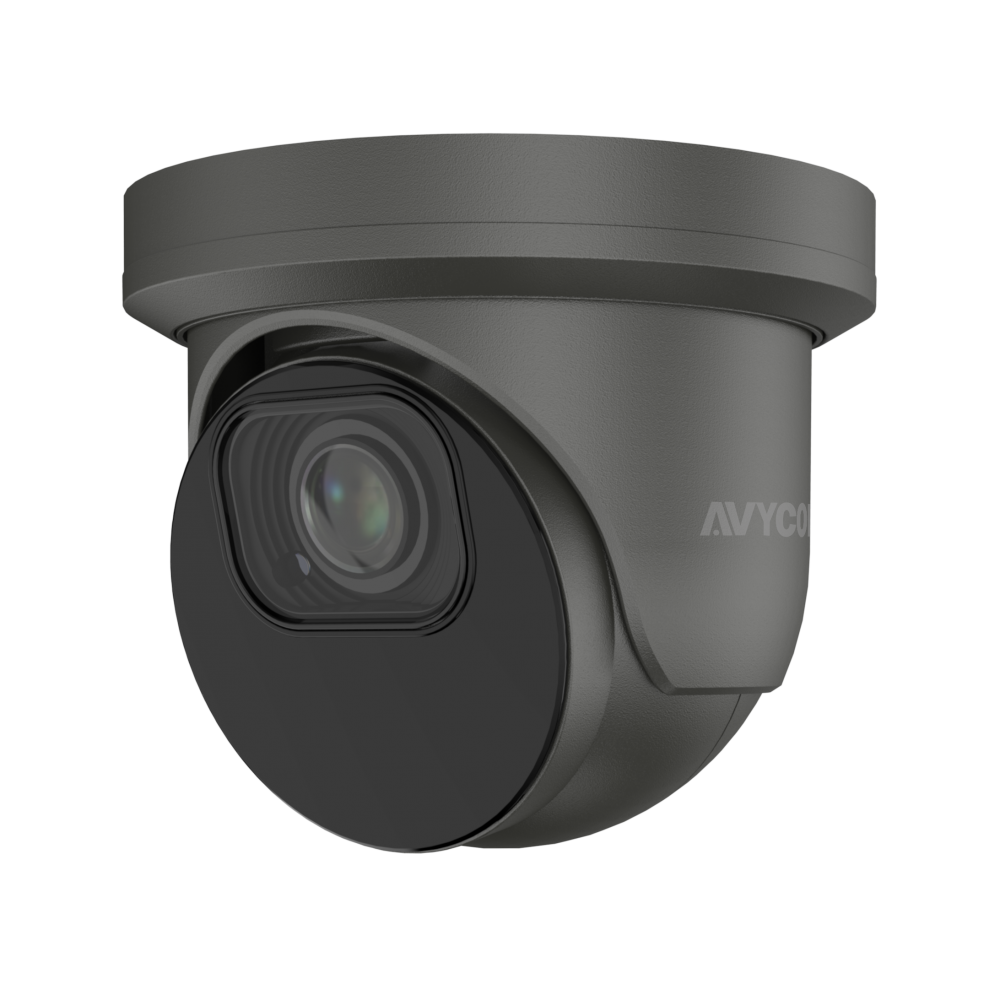

AVYCON - AVC-TE81M-G - 8MP HD-TVI Varifocal Turret Camera
Part number:
AVC-TE81M-G
Price:
8MP (3840x2160), 4K Eyeball Camera, 4-in-1, HD-TVI (default), CVI, AHD, ANALOG (960H), 2.7-13.5mm Motorized A/F Lens, 115ft Smart IR's, DWDR, CoC, OSD, BLC, DC12V, IP67, Gray
Features:
8MP (3840x2160)- HD-TVI / CVI / AHD / CVBS (Analog)
- True Day & Night ICR
- Motorized Varifocal 2.7-13.5mm Lens
- Easy-to-Use DIP Switch to Change Formats
- 2D DNR, 3D DNR, WDR, BLC
- Smart IR Illumination Up to 115ft
- IP67 ingress protection
- DC12V
| CAMERA | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Resolution | 8MP |
| Image Size | 3840x2160 |
| Video Output | 1-channel BNC Video Output |
| Image System | PAL / NTSC |
| Electronic Shutter | 1/15s to 1/50,000s |
| IR Distance | Up to 115ft. |
| Video Formats | HD-TVI / AHD / CVI / CVBS (Analog) |
| Frame Rate | HD-TVI / AHD / CVI / CVBS (Analog): 10 FPS |
| CVBS Analog: 30 FPS | |
| Min. Illumination | 0.05 lux @ F1.2 (AGC ON), 0 lux with IR ON |
| Lens | Motorized 2.7-13.5mm Lens |
| Lens Mount | ɸ14mm |
| Horizontal Field of View | 115.9°(W)~33.8°(T) |
| S/N Ratio | 36dB |
| Function Control | OSD, Control over Coax (UTC) |
| IMAGE | |
| Day & Night | EXT / Color / BW (Black and White) |
| WDR | Yes |
| Digital NR | Yes (2D DNR / 3D DNR) |
| Auto Gain Control ( AGC) | Yes |
| Auto White Balance (AWB) | Yes |
| Backlight Compensation (BLC) | Yes |
| Edge Brightness Compensation | Yes |
| Defog | No |
| HLC | No |
| Sharpness | Yes |
| Mirror Image | Yes |
| Smart IR (Anti-SAT) | Yes |
| Image Setting | Yes |
| Defect Correction | Auto / Manual |
| GENERAL | |
| Angle Adjustment | Manual Adjustment |
| Input Voltage | DC 12V (±10%) |
| Power Consumption | Maximum 6W |
| Ingress Protection | IP67 |
| Working Environment | -22°~131°F (-30°~55°C) |
| Dimensions | Ø4.96x3.15in (Ø126.0x80.0mm) |
Name
Description
Size
Downloads
File
Data Sheets
0.5mb
File
Diversity HD Analog Quick Start Guide
0.5mb
File
HD Analog Fixed Turret Camera Quick Start Guide
1.7mb
