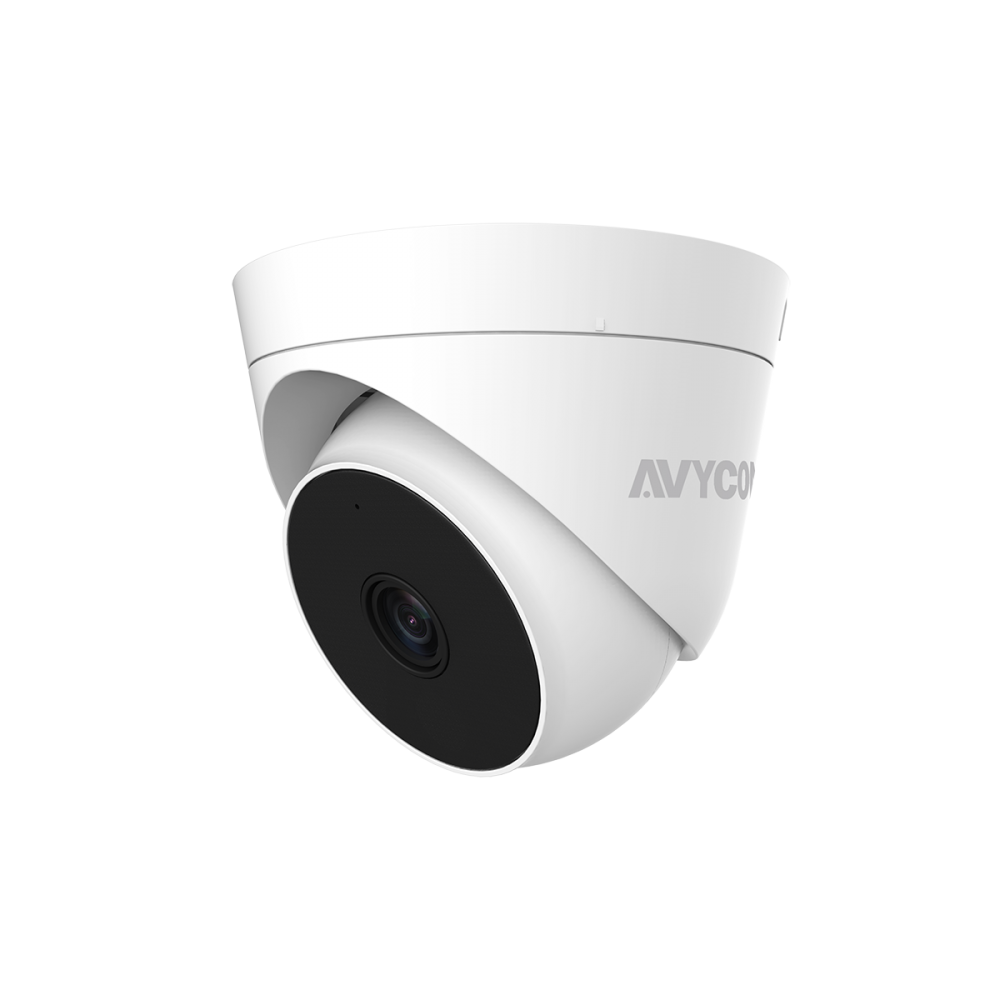

AVYCON - AVC-TLE51F28 - 5MP EVO Series Indoor Fixed Turret Camera
Part number:
AVC-TLE51F28
Price:
The AVYCON AVC-TLE51F28 camera is a 5MP Indoor Fixed Turret Camera. This camera includes a fixed 2.8 lens.
Features:
5MP (2592 x 1944) @ 20fps- Max. Resolution: 2592 x 1944
- Min. Illumination:
- Color: 0.03 lux@F2.0, AGC ON; B/W: 0 lux with IR
- Lens: Fixed 2.8mm
- Infrared Distance: 65ft (20m)
- DC12V±10%, 500mA
- NDAA Compliant
| CAMERA | |
| Image Sensor | 1/3" CMOS Sensor |
| Image Resolution | 5M: 2592 x 1944, 4M: 2560 x 1440, 2M: 1920 x 1080 |
| TV System | PAL/NTSC |
| Electronic Shutter | Auto |
| Minimun Illumination | Color: 0.03 lux@F2.0, AGC ON; B/W: 0 lux with IR |
| Scanning System | Progressive Scan |
| LENS | |
| Focus Length | 2.8mm |
| Focus Control | Fixed |
| Lens Type | Fixed |
| NIGHT VISION | |
| IR Cut Filter | YES |
| Infrared LED | 42µ x 1PCS |
| Infrared Distance | 65ft |
| IR Status | AGC |
| CAMERA FEATURES | |
| Starlight | N/A |
| Day/Night | YES/NO |
| OSD Menu | YES |
| WDR | DWDR |
| UTC | YES |
| Noise Reduction | DNR |
| Coaxial Audio | N/A |
| White Balance | AUTO / MANUAL |
| Gain Control | AUTO |
| GENERAL | |
| Housing | Plastic |
| Bracket | NO |
| Operation Temperature | 14°F ~ 140°F (-10°C ~ +60°C RH95% Max) |
| Storage Temperature | -4 °F ~ 140°F (-20°C ~ +60°C RH95% Max) |
| Power Source | DC12V±10%, 500mA |
| Dimension | 83.9* 68.8mm |
| Weight | 156.2g |
