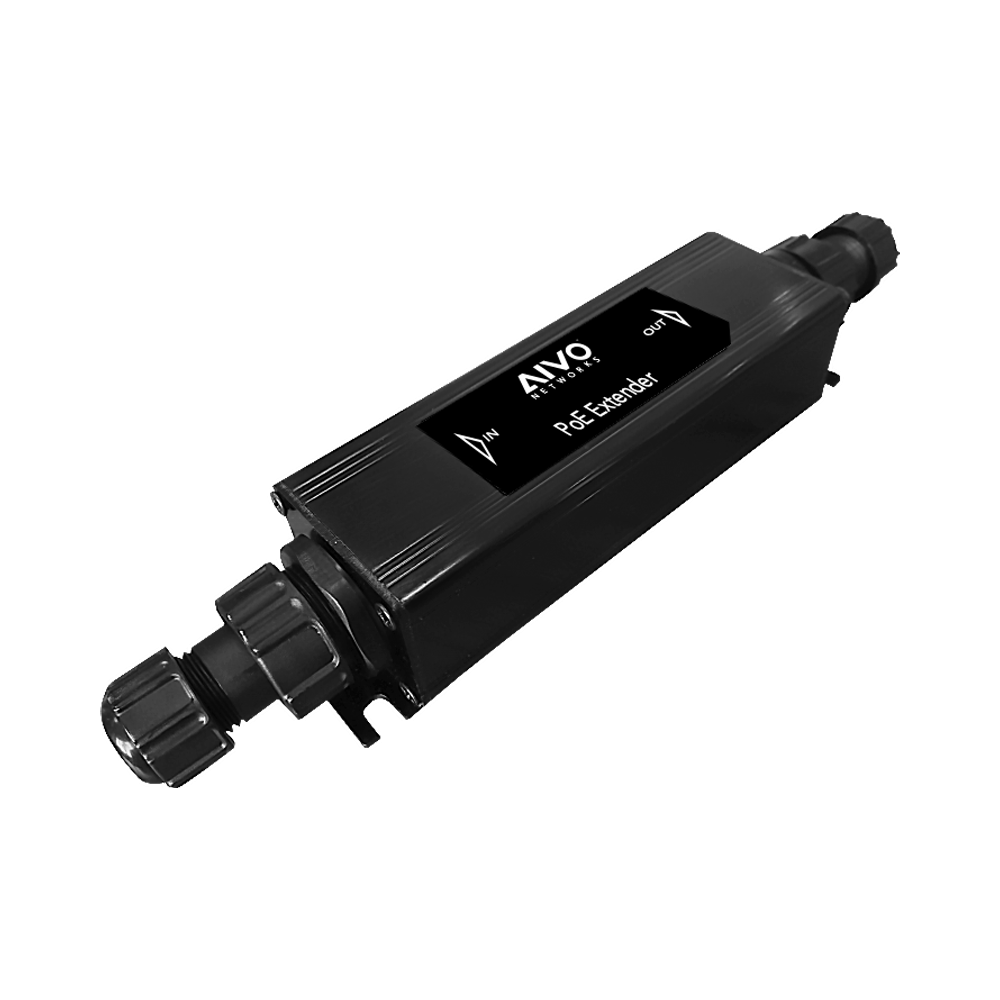

AVYCON - AVN-PO-EXT22G - 22W PoE Outdoor Extender (IEEE802.3 At Standard)
Part number:
AVN-PO-EXT22G
Price:
A quality product for PoE network point-to-point up to 500m. Works with PoE standards IEEE802.3af and IEEE802.3at. This device serves as a data switch port that is powered by PoE and transmits it 100m further together with the data. Depending on the amount of power consumption, it may use up to 4 PoE Extenders in the same chain, thereby increasing transmission distance up to 500m (IEEE802.3af class 1).
Features:
- Mini-size, wall mounting
- Requires no external power supply
- Low power consumption, only 2W
- Auto-sensing PoE devices
- Compatibility with 802.3af and 802.3at
| GENERAL | |
| Number of Channels | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps half/full duplex |
| Power over Ethernet Input | Pin Assignment and Polarity: Both 1/2 (-), 3/6 (+) and 7/8 (-), 4/5 (+) |
| Power over Ethernet | Pin Assignment and Polarity: 1/2 (-), 3/6 (+) |
| Output | Output Power: up to 22W |
| Connectors | Shielded RJ-45, EIA 568A and 568B |
| Network Cables | Shielded category 5 (or higher) |
| Dimensions | 140mm x 40mm x 30mm (W x D x H) |
| Mounting | Wall |
| Environment | Outdoor IP65 |
| Environmental Conditions | Operating Ambient Temperature: -40°C to 75°C Operating Humidity: Maximum 90%, Non-condensing Storage Temperature: -40°C to 75°C Storage Humidity: Maximum 95%, Non-condensing |
| Regulatory Compliance | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) RoHS Compliant, CE, FCC |
| Electromagnetic | FCC Part15, Class B |
