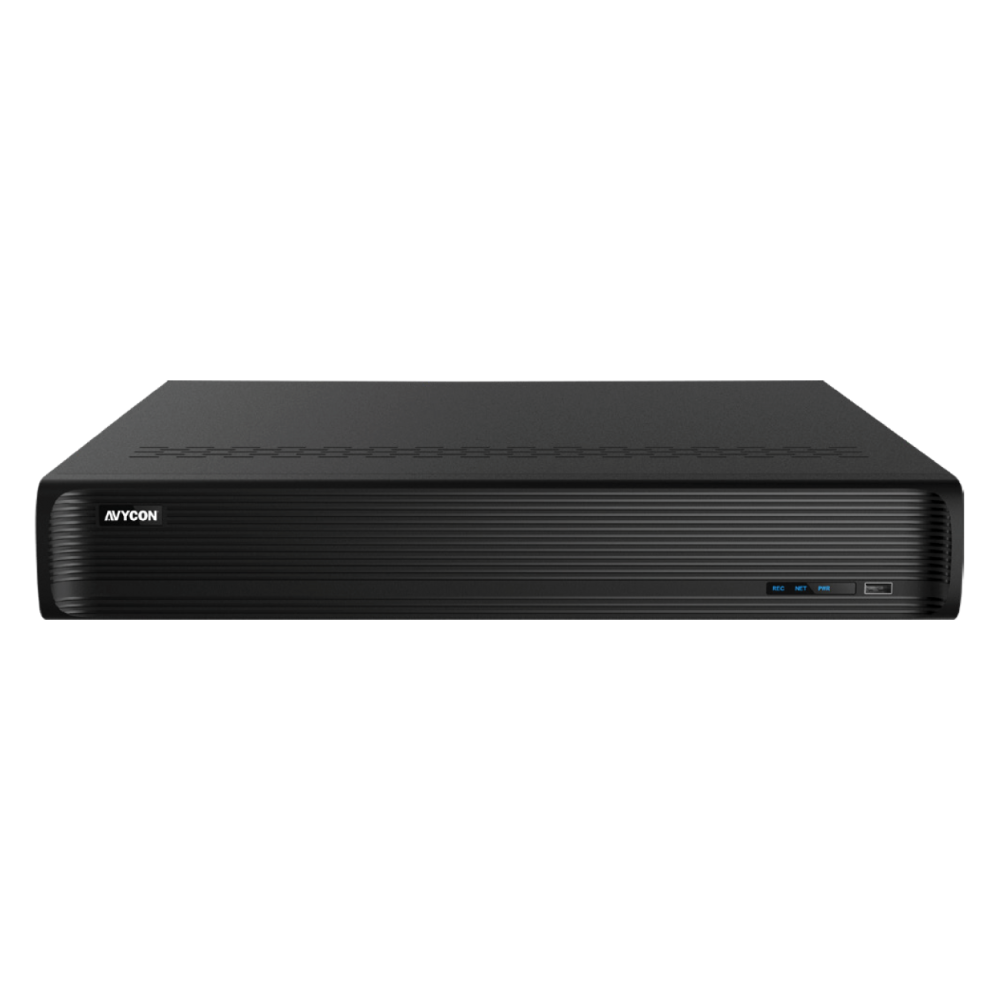

AVYCON - AVR-NN816P16C-FD-1T - 32 CH 4K UHD Network Video Recorder, 1TB HDD Installed
Part number:
AVR-NN816P16C-FD-1T
Price:
H.265, 32CH 4K NVR with 16CH Built-in PoE, Plug & Play, 30FPS@4K per ch, 256Mbps, ONVIF, 4K HDMI, Smart AI, Fisheye Dewarping, 1TB HDD Installed
Features:
- Supports up to 32 Channels 12MP / 8MP / 6MP / 5MP / 4MP/ 3MP / 1080P 960P / 720P IP Camera video input
- Supports H.265 High Profile Compression with Up to 50% Savings in bandwidth over H.264
- IFS (Inactive Frame Shaving)
- Intuitive and User-Friendly Graphic User Interface (GUI)
- True 4K HDMI Output Display & VGA 1080P High Definition Display
- Multi-Mode Recording: Manual / Scheduled / Motion & Sensor
- Playback: 16 Channels Simultaneous Playback
- Search: Time Slice, Time, Event, and Tag Search
- Quick and Easy Backup via USB, Network and Mobile App PTZ, and System Configuration
- Pentaplex Operation: Live View, Record, Playback, Backup and Remote Access
- Supports DHCP, DDNS, PPPoE and various other Network Protocols
- Remote Access via Web Interface or AVYCON CVMS: Live Playback, Backup, Quality Video for Mobile and Remote Access
- 16 Integrated PoE Ports provide power to 16 IP Cameras / PoE Devices Backup, PTZ, and System Configuration
- Dual Stream Technology allows for High Quality Local Recordings and Standard
- Allows Simultaneous Online Users to Access Device
- Support PTZ Preset and Auto-Cruise, with Up to 255 Presets and 8 Cruise Paths
- Support NAT Function and QR Code Scanning Mobile Apps, Eliminating the Need to Configure Port Forwarding
- Supports Smart Analytics with xHN Series Cameras (available features depend on camera model)
- NDAA Compliant
| VIDEO | |
| IP Video Input | 32 Channels |
| Output | HDMI 1: 3840 x 2160, 1920 x 1080, 1280 x 1024 VGA x 1: 1920 x 1080 / 1280 x 1024 |
| IP Video Input Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Incoming Bandwidth (Mbps) | 192Mps |
| Outgoing Bandwidth (Mbps) | 192Mps |
| Video Compression | Standard H.265 |
| AUDIO | |
| Audio Network Input | 16 Channel IPC Audio Input |
| Local Output | RCA x 1 |
| 2-Way Audio | RCA x 1 |
| RECORD / PLAYBACK / DECODING CAPABILITY | |
| Record Stream | Dual Stream Recording |
| Resolution | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P |
| Frame Rate | 25fps(PAL) / 30fps(NTSC) |
| Mode | Manual, Timer, Motion, Sensor |
| Simultaneous Playback | Max 16 Channels |
| Search | Time slice / Time / Event / Tag Search |
| Smart Search | Recorded Events are Color-Coded to Reflect the Specific Type of Event that was Recorded (Scheduled, Motion, Alarm, Etc.) |
| ALARM | |
| Alarm Mode | 16 Channels Local Alarm Input; 32 Channels IPC Alarm Input Supported |
| Alarm Output | 4 Channels |
| Mode | Manual, Sensor, Motion, Exception |
| SYSTEM / STORAGE / BACKUP / PORT | |
| HDD Interface | SATA x 4, Max 18TB per HDD |
| Local Backup | USB Flash Drive, USB Mobile HDD |
| Network Backup | Yes |
| USB | USB 2.0 x 2, USB 3.0 x 1 |
| Remote Controller | Optional |
| NETWORK | |
| Interface | RJ45 10/ 100 / 1,000 Mbps x 1 |
| PoE Port | RJ45 x 16 |
| Protocol | TCP/ IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP |
| AI | |
| Smart Analytics | Support with xHN Series Cameras (available features depend on camera model) |
| Smart Events | People/Vehicle Detection, Line Crossing, Object Abandonment, People Counting, Region Entrance, Crowd Density |
| License Plate Recognition | Supported on v1.4.4 (used with the AVC-NBL21M-L1 & AVC-NBL41M-L1) |
| Fisheye Dewarping | Supported (used with the AVC-PNN61FLT) |
| Facial Recognition | Supported (used with the latest xHN Series Cameras) |
| GENERAL | |
| Power Supply | ATX |
| Power Consumption | 30W (Without HDD) |
| Working Environment | -14°~122°F (-10°~50° Celcius) |
| Working Humidity | 10%~90% (Non-Condensing) |
| Dimensions | 17.32" x 15.35" x 2.76" (440mm x 390mm x 70mm) |
