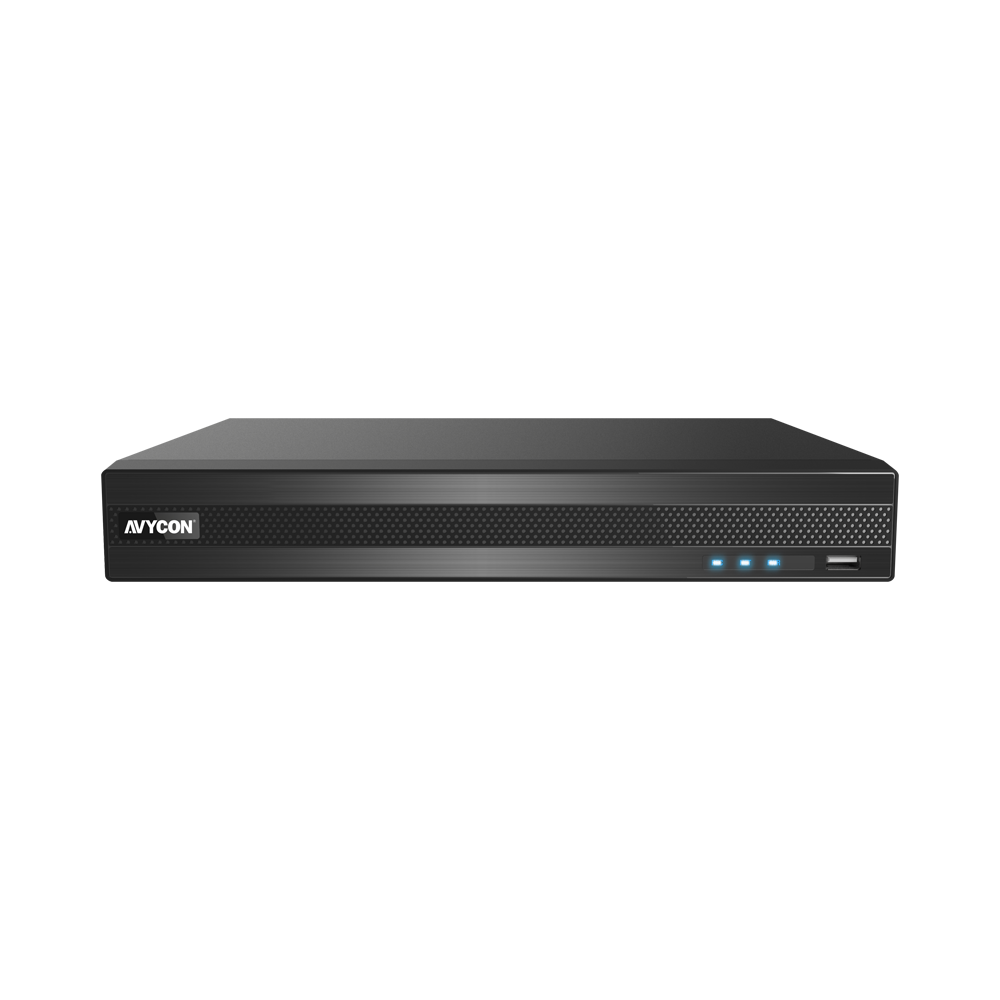

AVYCON - AVR-NU804P4-3T - 4 CH 4K Network Video Recorder, 3TB HDD Installed
Part number:
AVR-NU804P4-3T
Price:
(NDAA) H.265, 4CH 4K NVR with 4CH Built-in PoE, Plug & Play, 30FPS@4K per ch, 40Mbps, ONVIF, 4K HDMI, Smart AI, 3TB HDD Installed
Features:
- Plug & Play (8MP/ 6MP / 5MP / 4MP / 3MP / 1080P / 1280×1024 / 960P / 720P / 960H / DI/ CIF) IP Network Cameras
- H.265 High Profile Compression for High Megapixel on Low Bit Rate
- Intuitive and user-friendly Graphical User Interface ( GUI ), Windows Operation by Mouse
- Multi-Mode Recording: Manual / Timer / Motion / Sensor/ POS / AI Recording
- Playback : 4 CH Simultaneous Playback
- Search : Time Slice, Time, Event, Tag, Smart Search
- Support Multiple VCA (Video Content Analytics) Events, Such as Object
- Abandoned/Missing, Region Intrusion, Tripwire, Video Exception, etc.
- Support POS Information Overlay on Live View and Playback
- Express and Flexible Backup via USB, Network and so on
- Pentaplex : Preview, Record, Playback, Backup and Remote Access
- DHCP, DDNS, PPPoE Network Protocol
- Remote Control via Web Client or CMS : Preview, Playback, Backup, PTZ and Configuration
- 4 PoE Network Ports, Support IPC Direct Connection to NVR; Support PoE Power Supply
- Dual Stream Technology for Local Storage with High Definition, Remote Network Transmission and Remote Surveillance with Mobile Device
- Support Multi-User Online Simultaneously
- Authorization Management, Log View and Device Status View
- 1080P Output, True High Resolution Display
- Support NAT function and QRCode scanning with mobile phones
- Professional HD Mobile Surveillance App for iOS and Android
- NDAA Compliant
| VIDEO | |
| IP Video Input | 4 Channels IPC |
| Output | HDMI1: 1920 x 1080 / 1280 x 1024 / 1024 × 768 VGA x 1: 1920 x 1080 / 1280 x 1024 / 1024 × 768 |
| IP Video Input Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1280×1024/ 960P/ 720P/ 960H/ D1/ CIF @ 30/25/20fps |
| Incoming Bandwidth (Mbps) | 28Mps |
| Outgoing Bandwidth (Mbps) | 28Mps |
| Video Compression | Standard H.265 |
| AUDIO | |
| Network Input | 4 Channel IPC Audio Input |
| Local Output | No |
| 2-Way Audio | No |
| HDMI Audio Output | Yes |
| Compression | G.711(U/A) |
| RECORDING | |
| Resolution | 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080P/ 1280×1024/ 960P/ 720P/ 960H/ D1/ CIF |
| Record Stream | Dual Stream Recording |
| Mode | Manual, Timer, Motion, Sensor |
| PLAYBACK | |
| Smart Search | Highlighted Color to Display the Camera Record in a Certain Period of Time(Scheduled, Motion, Alarm, Etc.) Different Colors Refers to Different Record Events |
| Search | Time slice / Time / Event / Tag Search / Smart Search |
| Function | Play, Pause, Fast Forward, Fast Rewind, Digital Zoom, etc. |
| Simultaneous Playback | Max 4 Channels |
| ALARM | |
| Alarm Input | IPC Alarm Input Supported |
| Alarm Output | IPC Alarm Input Supported |
| Mode | Manual, Sensor, Motion, Exception, Smart Events |
| Alarm Trigger | Record, Snap, Preset, E-mail, etc. |
| STORAGE | |
| HDD Interface | SATA x 1, Max 10TB per HDD |
| BACKUP | |
| Network Backup | Yes |
| Local Backup | USB Flash Drive, USB Mobile HDD |
| NETWORK | |
| Interface | RJ45 10 / 100 / 1,000 Mbps x 1 |
| PoE Port | 100M RJ45 x 4 |
| Protocol | TCP / IP, DHCP, DNS, DDNS, UPnP, NTP, SMTP, HTTP, HTTPs, 802.1x, RTSP, SNMP, ONVIF, etc. PPPoE |
| Web Client | Max. 10 Online Users |
| EXTERNAL INTERFACE | |
| Remote Controller | Optional |
| USB | USB 2.0 x 2 (Rear Panel) |
| VIDEO ANALYTICS | |
| License Plate Recognition | Supported on v1.4.4 (used with the AVC-NBL21M-L1 & AVC-NBL41M-L1) |
| GENERAL | |
| Power Supply | DC 48V/1.25A |
| Power Consumption | ≤6W (Without HDD) |
| Working Environment | 14°~122°F (-10°~50° Celcius) |
| Working Humidity | 10% ~ 90% (Non-Condensing) |
| Dimensions | 10.04” x 8.74” x 1.65” (255mm x 222mm x 42mm) |
