TP-Link - EAP650 - AX3000 CEILING MOUNT WI-FI 6 ACCS ACCESS POINT
Part number:
EAP650
Price:
AX3000 Ceiling Mount WiFi 6 Access Point
Features:
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.

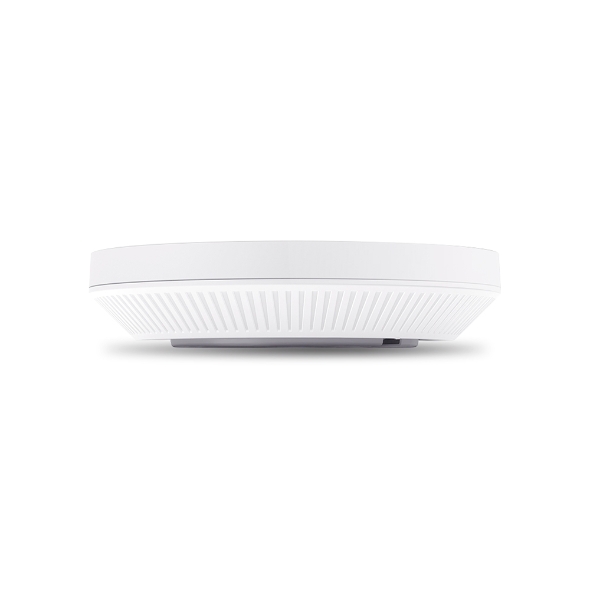

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
| HARDWARE FEATURES | |
| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | • 802.3at PoE |
| • 12V DC (Power Adapter included) | |
| (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC) | |
| • 48V Passive PoE | |
| Power Consumption | • EU: 13.5 W |
| • US: 14.7 W | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni |
| • 2.4 GHz: 2× 4 dBi | |
| • 5 GHz: 2× 5 dBi | |

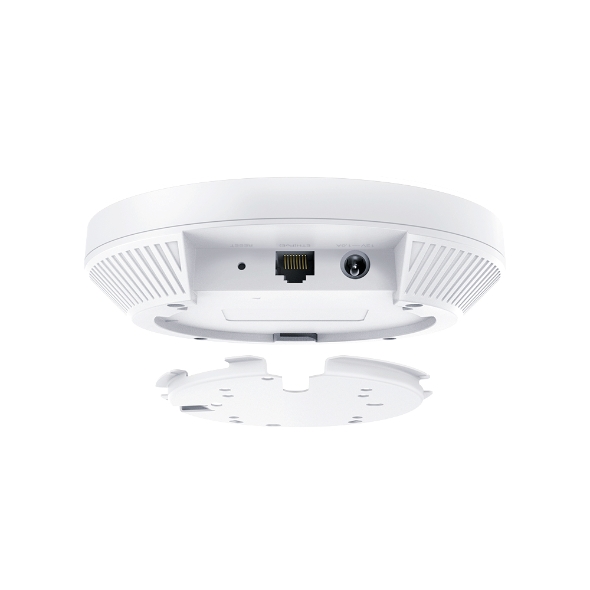

| Mounting | • Ceiling /Wall Mounting (Kits included) |
| • Junction Box Mounting | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: Up to 2402 Mbps |
| • 2.4 GHz: Up to 574 Mbps | |
| Wireless Functions | • 1024-QAM |
| • 4× Longer OFDM Symbol | |
| • OFDMA | |
| • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| • Enable/Disable Wireless Radio | |
| • Automatic Channel Assignment | |
| • Transmit Power Control (Adjust Transmit Power on dBm) | |
| • QoS(WMM) | |
| • MU-MIMO | |
| • HE160 (160 MHz Bandwidth)‡ | |
| • Seamless Roaming § | |
| • Omada Mesh§ | |
| • Band Steering | |
| • Load Balance | |
| • Airtime Fairness | |
| • Beamforming | |
| • Rate Limit | |
| • Reboot Schedule | |
| • Wireless Schedule | |
| • Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | • Captive Portal Authentication§ |
| • Access Control | |
| • Wireless Mac Address Filtering | |
| • Wireless Isolation Between Clients | |
| • SSID to VLAN Mapping | |
| • Rogue AP Detection | |
| • 802.1X Support | |
| • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | • CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, Band1 & Band2, EIRP) | |
| <30 dBm(5 GHz, Band3, EIRP) | |
| • FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) |
| • Omada Hardware Controller (OC200) | |
| • Omada Software Controller | |
| • Omada Cloud-Based Controller | |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • EAP650 |
| • Power Adapter | |
| • Ceiling/Wall Mounting Kits | |
| • Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) |
| • Storage Temperature: -40–70 ℃ (-40–158 ℉) | |
| • Operating Humidity: 10–90% RH non-condensing | |
| • Storage Humidity: 5–90% RH non-condensing | |
