TP-Link - ARCHER TX55E - AX3000 DUAL BAND WI-FI 6 WRLS BLUETOOTH PCI EXPRESS ADAPTER
Part number:
ARCHER TX55E
Price:
AX3000 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Features:
- Unrivalled Wi-Fi 6 Speed Breaks the gigabit barrier with speed up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- Smoother Experience75% lower latency ensures ultra-responsive gaming, uninterrupted video chatting, and seamless live streaming
- Reliable Connections Intel Wi-Fi 6 chipset brings faster and clearer Wi-Fi to fully unlock the potential of your Wi-Fi 6 router
- Wider Signal Coverage Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.2 The latest Bluetooth technology achieves Faster Speed and Broader Coverage than the previous version
- Improved Security The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Fine Crafting Specialized heatsink and gold plating is crafted to improve stability and reliability even in hot environments
- Backward Compatibility – Full support for 802.11ac/a/b/g/n standards
| HARDWARE FEATURES | |
| Dimensions | 2.4 x 1.4 x 0.45 in |
| (55 x 36 x 11.5 mm) | |
| Antenna Type | Two High-Gain Dual Band Antennas |
| Chipset | Intel Wi-Fi 6 Chipset |
| BLUETOOTH FEATURES | |
| Standards and Protocols | Bluetooth 5.2, Bluetooth 5.0, Bluetooth 4.2, Bluetooth 4.0 |
| Interface | F_USB 2.0 |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz |
| IEEE 802.11ax/n/g/b 2.4 GHz | |
| Bluetooth 5.2/5.0/4.2/4.0 | |
| WLAN Signal Rate | 5 GHz |
| 11ax: Up to 2402 Mbps(dynamic) | |
| 11ac: Up to 1733 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11ax: Up to 574 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| WLAN Reception Sensitivity | 5 GHz : |
| 11ax HT160：-56.25dBm | |
| 11ax HT80: -59dBm | |
| 11ax HT40: -62.25dBm | |
| 11ax HT20: -65dBm | |
| 11ac HT160：-62dBm | |
| 11ac HT80: -65.5dBm | |
| 11ac HT40: -69.75dBm | |
| 11ac HT20: -73.75dBm | |
| 11n HT40: -74.5dBm | |
| 11n HT20: -77.5dBm | |
| 11a 54Mbps: -77.75dBm | |
| 11a 6Mbps: -94.5dBm | |
| 2.4GHz : | |
| 11ax HT40: -60.75dBm | |
| 11ax HT20: -63.75dBm | |
| 11n HT40: -73dBm | |
| 11n HT20: -76.25dBm | |
| 11g 54Mbps: -76.5dBm | |
| 11b 11Mbps: -89dBm | |
| WLAN Transmit Power | 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 26dBm(FCC) / 20dBm(CE) (EIRP) | |
| WLAN Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |

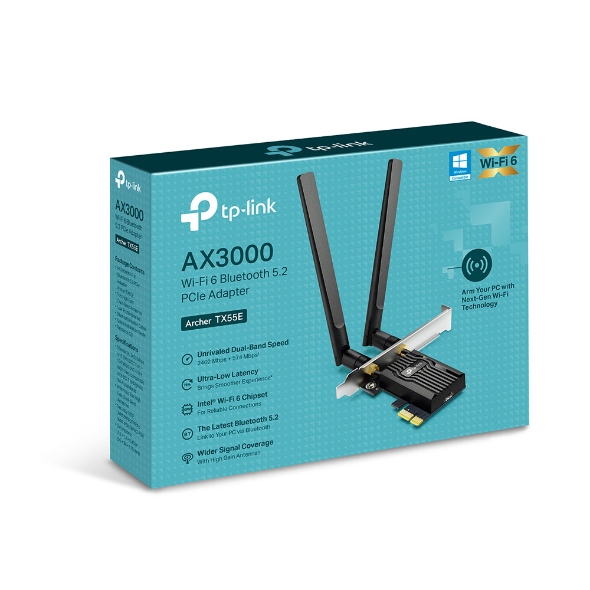

| Package Contents | Archer TX55E |
| Two High-Gain Antennas | |
| Low-Profile Bracket | |
| Standard Bluetooth Header Cable | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 10(64-bit) only |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
