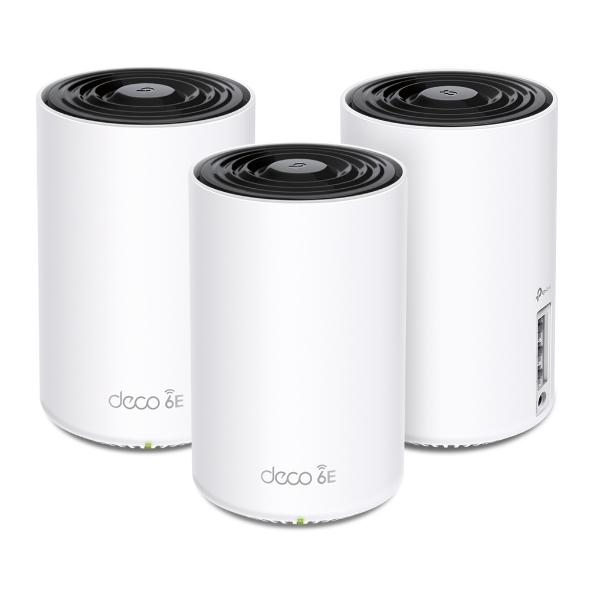

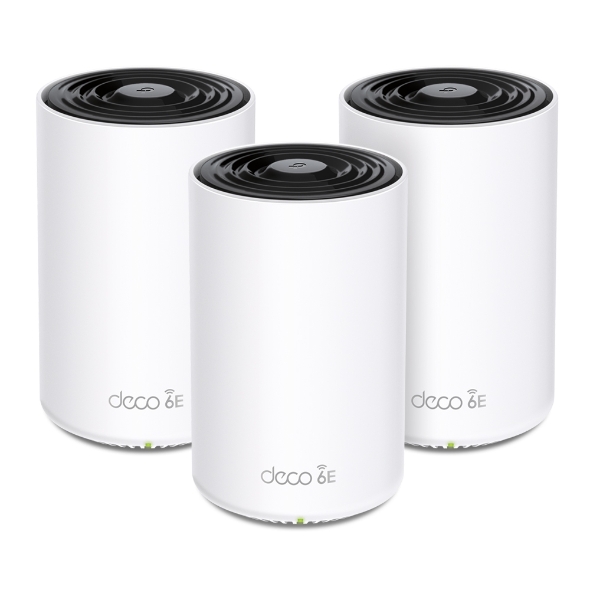

TP-Link - DECO XE75(2-PACK) - AXE5400 WHOLE HOME MESH WI-FI WRLS 6E SYSTEM
Part number:
DECO XE75(2-PACK)
Price:
AXE5400 Tri-Band Mesh Wi-Fi 6E System
Features:
- Whole Home WiFi 6E – Cover up to 7,200 ft2 with next-gen seamless WiFi and make dead zones and buffering a thing of the past
- Brand-New 6 GHz Band – Experience the latest frequency of WiFi, eliminating interference from all legacy devices. The 6 GHz band also delivers a powerful dedicated backhaul to further streamline the WiFi performance of non-6E devices
- True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices
- AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move room to room
- TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection
- Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem
| WIRELESS | |
| Standards | Wi-Fi 6E |
| IEEE 802.11ax 6 GHz | |
| IEEE 802.11ax/ac/n/a 5 GHz | |
| IEEE 802.11ax/n/b/g 2.4 GHz | |
| WiFi Speeds | AXE5400 |
| 6 GHz: 2402 Mbps (802.11ax, HE160) | |
| 5 GHz: 2402 Mbps (802.11ax, HE160) | |
| 2.4 GHz: 574 Mbps (802.11ax) | |
| WiFi Range | 4-7+ Bedroom Houses (3-pack) |
| 3-5 Bedroom Houses (2-pack) | |
| 1-3 Bedroom Houses (1-pack) TP-Link Mesh Technology | |
| Optional Ethernet backhaul work together to link Deco units to provide seamless coverage | |
| AI-Driven Mesh | |
| Intelligently learns the network environment to provide ideal Wi-Fi unique to your home | |
| 4× High-Gain Antennas (Internal) | |
| Multiple antennas form a signal-boosting array to cover more directions and large areas | |
| Tri-Band | |
| A newly-opened 6 GHz band brings more bandwidth and faster speeds | |
| Beamforming | |
| Concentrates wireless signal strength towards clients to expand WiFi range | |
| WiFi Capacity | Very High Tri-Band |
| Distribute devices to different bands for optimal performance | |
| 2×2 MU-MIMO | |
| Simultaneously communicates with multiple MU-MIMO clients | |
| OFDMA | |
| Simultaneously communicates with multiple WiFi 6 clients | |
| 6 Streams | |
| More than enough bandwidth for connected devices | |
| Working Modes | Router Mode |
| Access Point Mode | |
| HARDWARE | |
| Ethernet Ports | 3× Gigabit Ports |
| *Per Deco Unit | |
| Supports WAN/LAN auto-sensing | |
| Buttons | Reset Button |
| SECURITY | |
| WiFi Encryption | WPA-Personal |
| WPA2-Personal | |
| WPA3-Personal | |
| Network Security | SPI Firewall |
| Access Control | |
| HomeShield Security Real-Time IoT Protection | |
| Malicious Site Blocker | |
| Intrusion Prevention System | |
| DDoS Attack Prevention | |
| Home Network Scanner | |
| Guest Network | 1× 6 GHz Guest Network |
| 1× 5 GHz Guest Network | |
| 1× 2.4 GHz Guest Network | |
| SOFTWARE | |
| Protocols | IPv4 |
| IPv6 | |
| Service Kits | HomeShield |
| Learn More> | |
| Parental Controls | HomeShield Parental Controls Custom Profiles |
| Professional Content Filter Library | |
| Family Time | |
| Bedtime | |
| Off Time | |
| Time Rewards | |
| Family Online Time Ranking | |
| Pause the Internet | |
| Weekly and Monthly Reports | |
| WAN Types | Dynamic IP |
| Static IP | |
| PPPoE | |
| PPTP | |
| L2TP | |
| Quality of Service | HomeShield QoS QoS by Device |
| Cloud Service | OTA Firmware Upgrade |
| TP-Link ID | |
| DDNS | |
| NAT Forwarding | Port Forwarding |
| UPnP | |
| IPTV | IGMP Proxy |
| IGMP Snooping | |
| Bridge | |
| Tag VLAN | |
| DHCP | Address Reservation |
| DHCP Client List | |
| Server | |
| DDNS | TP-Link |
| Management | Deco App |
| TEST DATA | |
| WiFi Transmission Power | CE: |
| <20 dBm (2.4 GHz) | |
| <23 dBm (5 GHz) | |
| <23 dBm (6 GHz) | |
| FCC: | |
| <30 dBm (2.4 GHz) | |
| <30 dBm(5 GHz) | |
| <30 dBm(6 GHz) | |
| PHYSICAL | |

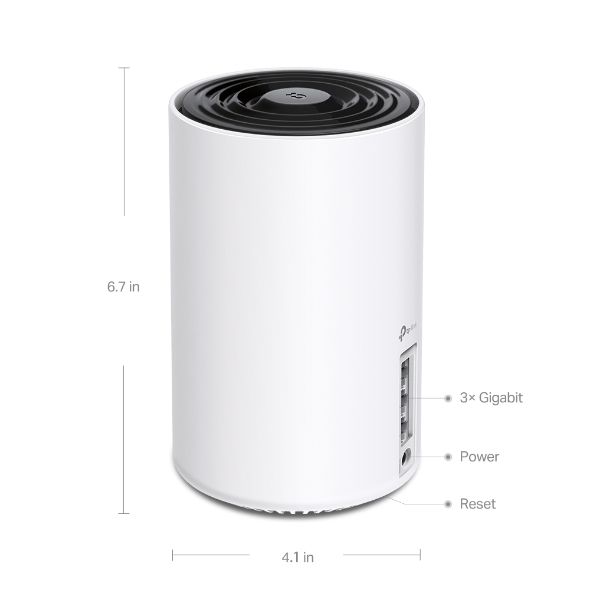

| Dimensions (W×D×H) | 4.1 × 4.1 × 6.7 in |
| (105 × 105 × 169 mm) | |
| Package Contents | Deco XE75 (3-pack) |
| 3 Deco XE75 units | |
| 1 RJ45 Ethernet cable | |
| 3 Power adapters | |
| 1 Quick Installation Guide | |
| Deco XE75 (2-pack) | |
| 2 Deco XE75 units | |
| 1 RJ45 Ethernet cable | |
| 2 Power adapters | |
| 1 Quick Installation Guide | |
| Deco XE75 (1-pack) | |
| 1 Deco XE75 units | |
| 1 RJ45 Ethernet cable | |
| 1 Power adapters | |
| 1 Quick Installation Guide | |
