Hanwha - SBP-302CMB - Back Box For Pendant Mount (SBP-302CM, SBP-302CMS, SBP-302CM-12, SBP-302CM-36)
Part number:
SBP-302CMB
Price:

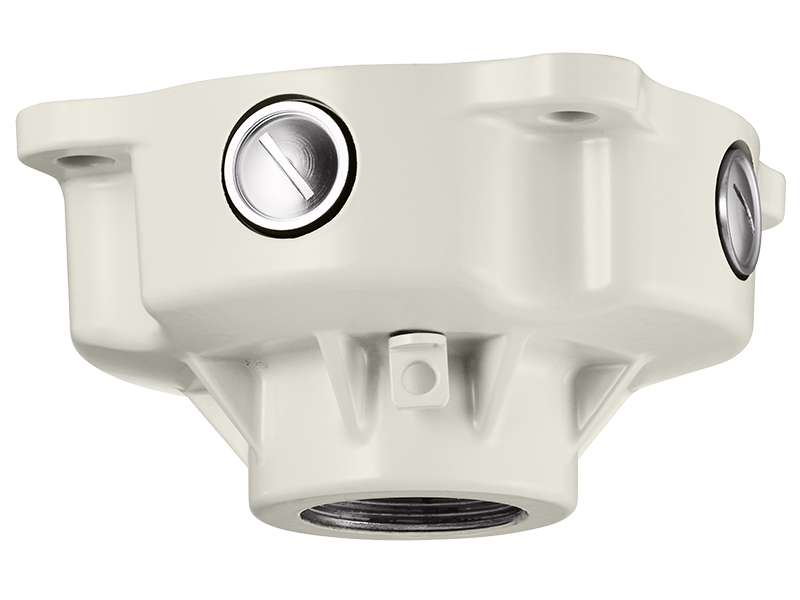

The Hanwha SBP-302CMB is a heavy-duty aluminum and steel structural pendant mount backbox designed to anchor intermediate ceiling extension pipes or telescopic downpoles to solid overhead substrates.
Key Features:
• Materials: Aluminum and Steel
• Dimensions: 5.9" x 5.9" x 3.15" (150 x 150 x 80mm)
• Pipe Thread: 1.5" NPT female (bottom)
• Color: Ivory
• Weight: 1.6lb (0.7kg)
• Max Load: 80lb (36.2kg)
• Competitively with: SBP-302CM, SBP-302CMS, SBP-302CM-12, SBP-302CM-36
| Materials | Aluminum and Steel |
| Dimensions | 5.9" x 5.9" x 3.15" (150 x 150 x 80mm) |
| Pipe Thread | 1.5" NPT female (bottom) |
| Color | Ivory |
| Weight | 1.6lb (0.7kg) |
| Max Load | 80lb (36.2kg) |
| Pivot Angle | N/A |
| Optional Accessories | SBP-302CM, SBP-302CMS, SBP-302CM-12, SBP-302CM-36 |
| Cable Routing | Side: 2x Cable conduit hole, Back: Cable hole |
Name
Description
Size
Downloads
File
CAD
1.8mb
File
Manual
0.1mb
File
Datasheet
0.6mb
File
Compliant Product List
0.4mb
