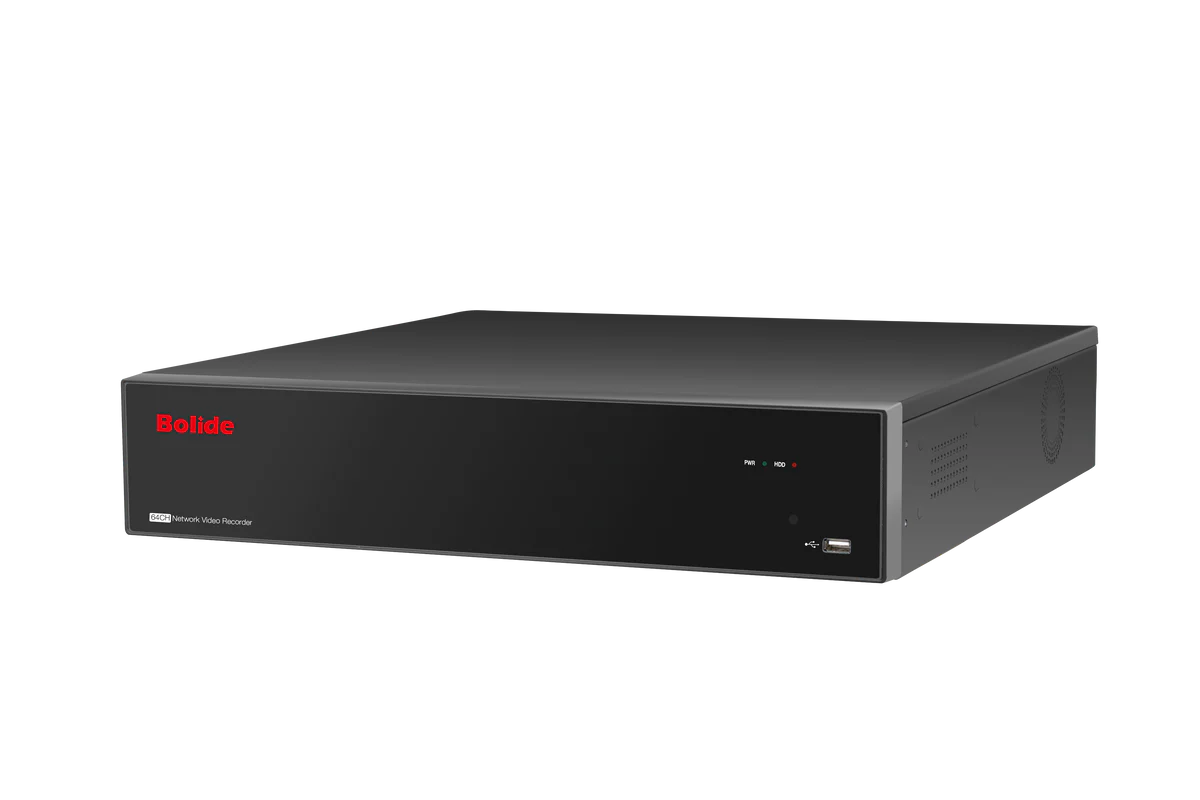

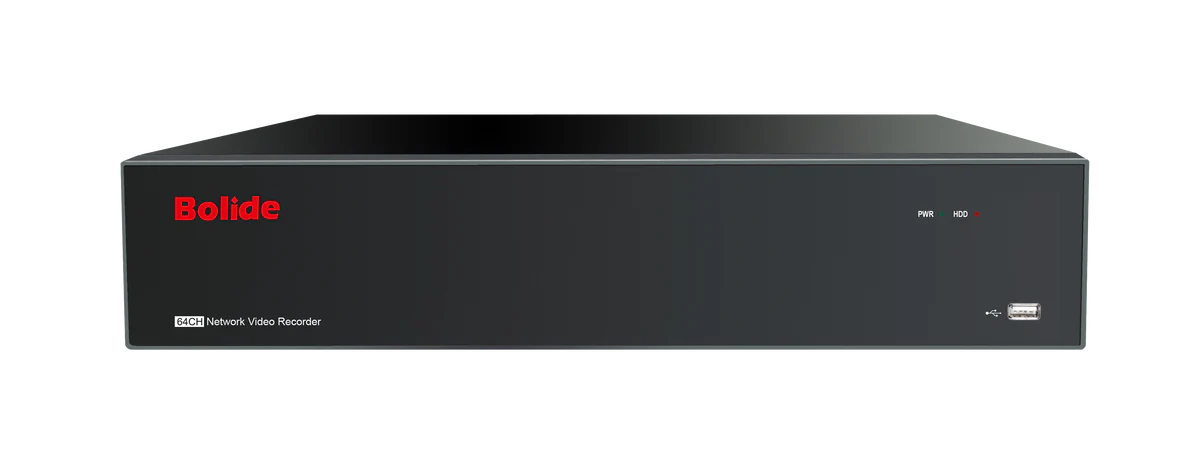

BOLIDE - BN-NVR/64NX/NDAA - 64-Channel 4K H.265 NVR, Supports Up to 4K Cameras, 640Mbps Throughput 4K, Output, 3 HDMI, VGA, 8 Hard Drive Bays Up to 12TB each bay, 96TB max, NDAA Compliant, iPac AI Enabled
Part number:
Price:
• 64-Channel License-Free NVR
• NDAA Compliant
• 640Mbps High Throughput
• 8 Hard Drive Bay High-Capacity Storage
• 4 HDMI Outputs
• Bolide Quick Connect Enabled
• iPac AI Enabled
| Information | |
|---|---|
| Recording Bandwidth | Max 640Mbps Throughput |
| Recording Resolution | 8MP(4K), 5MP, 3MP, 2MP(1080P), 1.3MP(960P), 1.0MP(720P) |
| Display Split | 1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16 / 32 / 36 / 64 |
| Recording Frames Per Second | 8MP (4K): 240 FPS 4MP: 480FPS 2MP: 960FPS |
| Output Interface | 4 HDMI |
| Display Resolution | 1024*768, 1280*720, 1280*1024, 1440*900, 1920*1080, 1680*1050, 1600*1200, 1900*1200, 2560*1440, 3840*2160 |
| RS-485 | Yes |
| ONVIF | ONVIF Profile S Version 2.6 |
| POE | None |
| Power Supply | ATX 250W |
| Dimension (W×D×H) | 17.32” x 18.11” x 7.44” (Rackmount Ears Included) |
| E-SATA | Yes |
| Line in | Yes |
| Alarm Input/out | 16CH Input / 1CH Output |
| Audio | 1-Channel Audio In / 1-Channel Audio Out |
| Ethernet | RJ-45 port (1000M) |
| Mobile Device Access | Yes, Bolide Quick Connect for iOS and Android |
| Internal HDD | 8 SATA HDDs, each HDD up to 18TB |
| USB | 2x 3.0 USB for video backup/ firmware upgrade, 1x 2.0 USB for mouse |
Name
Description
Size
Downloads
File
Datasheet_BN-NVR64NX_NDAA_ENG.pdf
1.5mb
