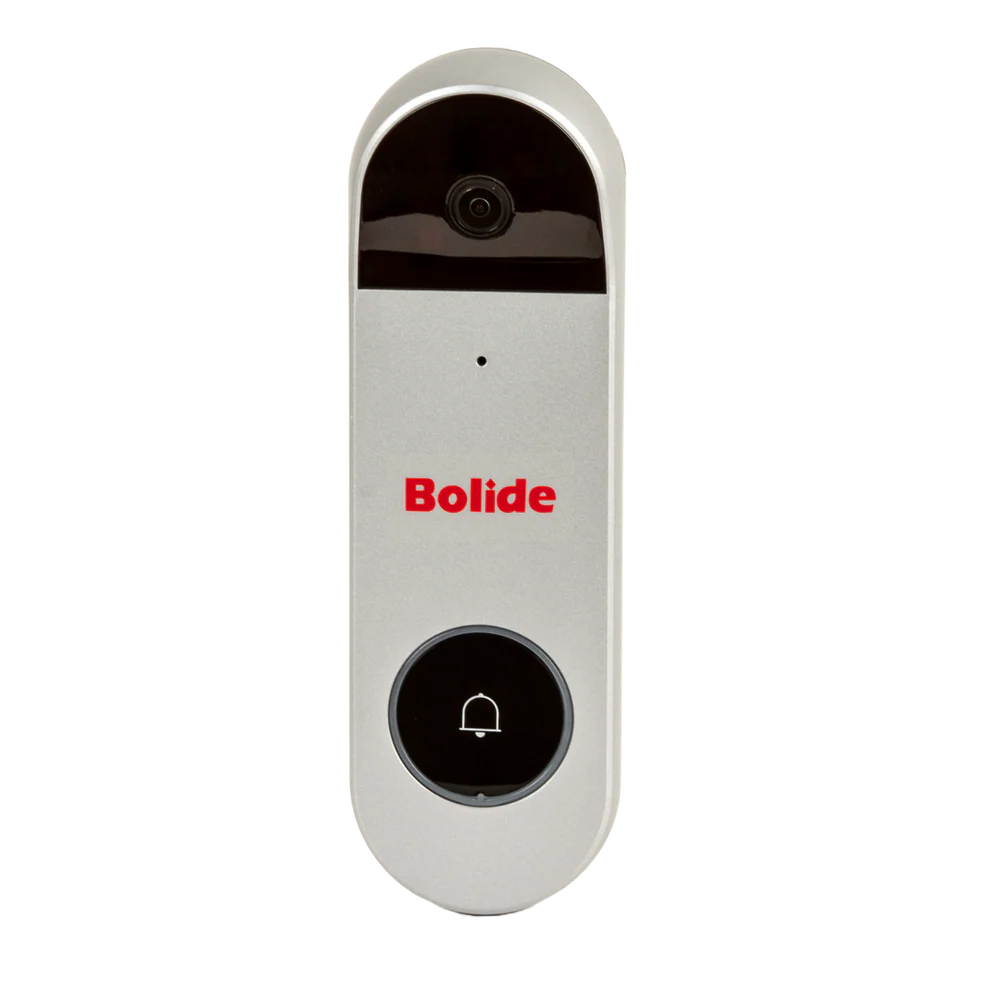

BOLIDE - BN-VDB - 5MP Smart Video Doorbell, Connects to Bolide iPac NX NVRs, 2.4/5G Wi-Fi Capable, Built-in Speaker and Mic, SD Card Slot, Human Detection, Package Dection, and Loitering Detection Analytics, POE, Silver Color, Includes Wall Mount Bra
Part number:
Price:
• Person, Loitering & Package Detection
• Two-Way Talk, Event-Activated Nightlight
• Full Head to Toe View ( 9:16 ) with Unique Leaning Design
• Flexible Storage Options, Recording on NVR or Micro SD Card ( Up to 512GB )

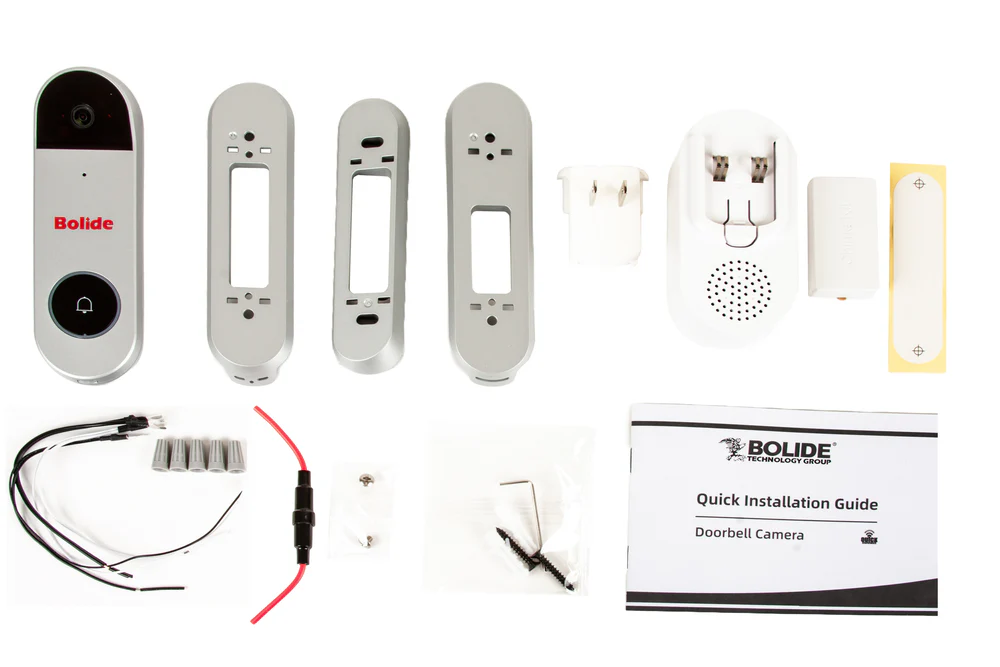

• With Chime Kit and Wireless Chime
• Supports Standard POE Power Supply
| Mechanical Specifications | |
|---|---|
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | 0 Lux with IR |
| Shutter Speed | 1/5 s- 1/20,000 s |
| Lens Type | 2.1 mm |
| Lens Mount | M8 |
| HLC | Yes |
| WDR | Digital WDR |
| BLC | Yes |
| Compression | |
| Video Compression | H.265 / H.264 |
| Image Resolution | 1944x2592 |
| Video Bit Rate | 16Kbps-8Mbps |
| Image | |
| Resolution | Main Stream 50/60Hz 1944 x 2592 (20FPS) 1520 x 2592 (20FPS) 1080 x 1920 (20FPS) Sub Stream 50/60Hz 720 x 1280 (20FPS) 480 x 640 (20FPS) |
| Intelligence Analytics | |
| Intelligence Analytics | Human Detection, Package Detection, Loitering Detection |
| Wi-Fi | Supports 2.4G / 5G Wi-Fi |
| Interface | |
| System Compatibility | ONVIF (Profile S/G/T) |
| Interface | 1 RJ45 10M / 100M Ethernet Interface |
| IR Distance | 9.84Ft |
| POE | Yes |
| Electrical | |
| Power Supply | AC/DC 8-24V |
| Operating Temperature | -40 °F- 140 °F Humidity 95% or less (non-condensing) |
| Physical | |
| Net Weight | 0.30lb |
| Weather Rating | IP65 Rated |
Name
Description
Size
Downloads
File
Datasheet_BN-VDB_ENG.pdf
0.6mb
