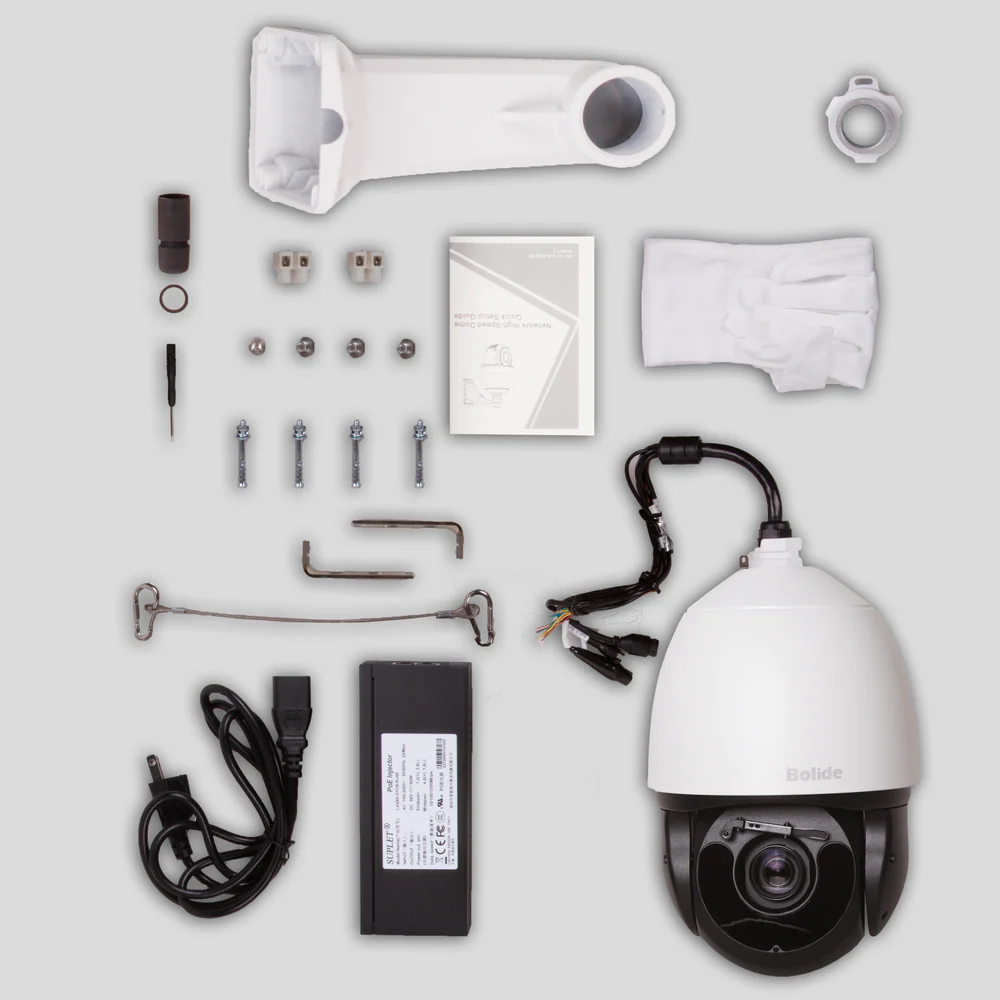

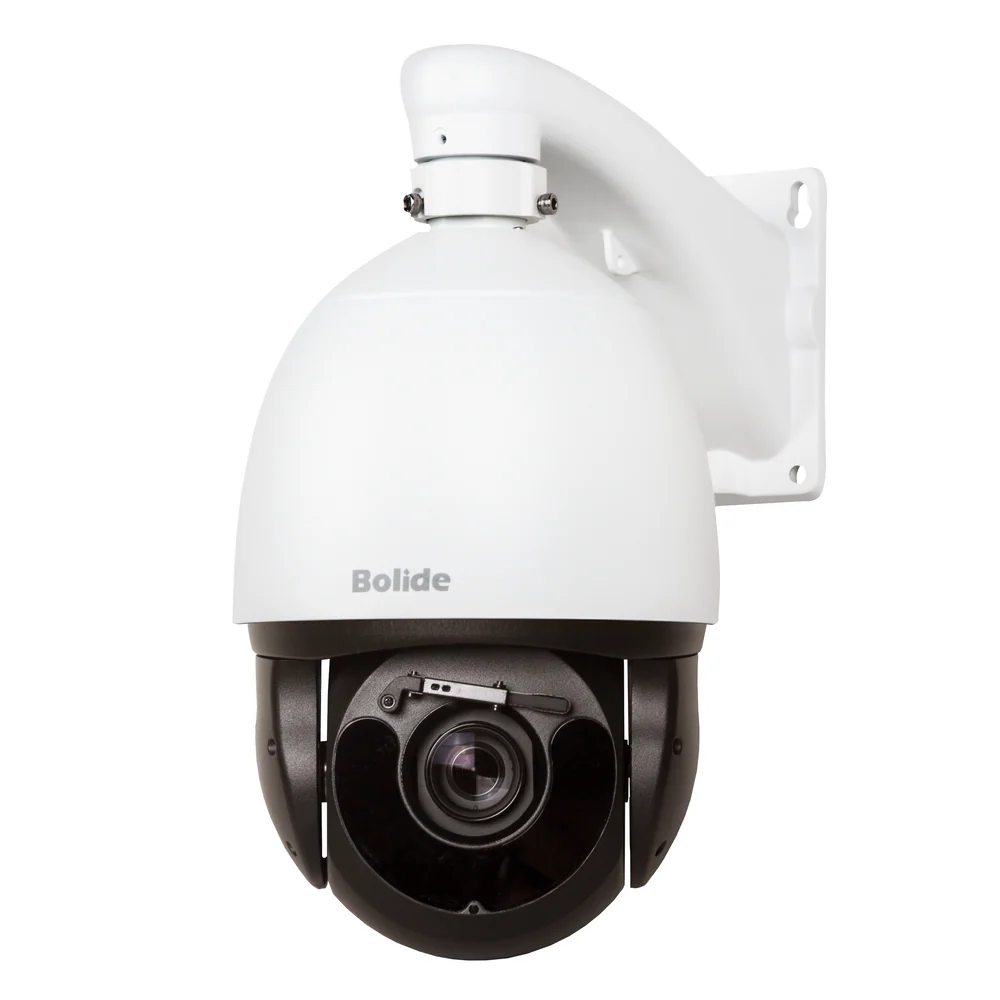

BOLIDE - BN1009/PTZ-5.0/WP/NDAA - 5MP 40x Optical Zoom Full Size PTZ with Auto Tracking, 30FPS, BNC, 2-Channel Alarm In/Out, IR Up to 656 Feet, Built-in POE, IP67, 24VAC, Includes Wall-Mount Bracket
Part number:
Price:
• 1/2.8" Progressive Scan CMOS
• Max. 25/30FPS @ 2592 x 1944
• 40x Optical Zoom and 16x Digital Zoom
• Auto Tracking and Perimeter Protection
• True WDR, 3D DNR, ICR, Defog, and EIS
• Intelligence Analytics
• IP66 Rated Housing
• ONVIF Compliant
• NDAA Compliant
| Idle Motion | |
|---|---|
| Idle Motion | The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run. |
| Video | |
| Streaming Capability | 3 Streams |
| Stream/Frame Rate | Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps Stream2: D1, VGA, CIF @25/30fps Stream3: VGA, CIF, QVGA @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 200 kbps to 16 Mbps Stream2: 100 kbps to 6 Mbps Stream3: 100 kbps to 3 Mbps |
| Smart Encoder | Support |
| Region of Interest (ROI) | Support |
| Audio | |
| Audio Compression | G.711, RAW_PCM |
| Audio Bit Rate | 64 kbps (G.711), 128 kbps (RAW_PCM) |
| Image | |
| Image Adjustment | Brightness, Sharpness, Contrast, Saturation |
| Mirror | Support |
| Exposure Mode | Auto/Manual |
| White Balance | Auto/Manual |
| Day/Night Setting | Auto, Day, Night, Time |
| Noise Reduction | 2D/3D DNR |
| Image Enhancement | HLC, BLC, Defog, Anti-shake |
| Wide Dynamic Range | True WDR |
| S/N Ratio | 50dB |
| Privacy Masking | Support 40 zones, mask color configurable |
| Smart Function | |
| Basic Event | Motion detection alarm, I/O alarm, Disk alarm, Network alarm |
| Multi-Object Detection | Support face, human, vehicle detection and capture |
| Smoke and Fire Detection | Support |
| Intelligent Analysis | Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart Motion Detection (support the accurate detection of vehicle and human) |
| People Counting | Support |
| Smart Tracking | Support |
| Network | |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, RTSP/RTP/RTCP, IGMP/Multicast, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS |
| Interoperability | ONVIF (profile S/T/G/M), SDK, CGI |
| Streaming Method | Multicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Chrome, Firefox, Microsoft Edge |
| Language | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English |
| Interface | |
| Network Interface | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
| Audio Interface | 1ch Input, 1ch Output |
| Alarm Interface | 7ch Input, 2ch Output |
| RS-485 | Support |
| CVBS Interface | Support |
| SD Card Slot | Built-in, up to 1 TB |
| Electrical | |
| Power Supply | 24VAC/36VDC/PoE++ (802.3bt), Standard Equipped: 36VDC |
| Power Consumption | Less than 45 W |
| Operating Temperature | -40°C to 60°C (-40°F to 140 °F) |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66, TVS4000V |
| Certifications | CE/FCC |
| Physical | |
| Casing | Metal |
| Dimensions | φ226×362.8 mm (φ8.9×14.28 inch) |
| Net Weight | 5.5 kg (12.13 lb) |
Name
Description
Size
Downloads
File
Datasheet_BN1009_PTZ5.0_WP_NDAA_ENG.pdf
0.5mb
