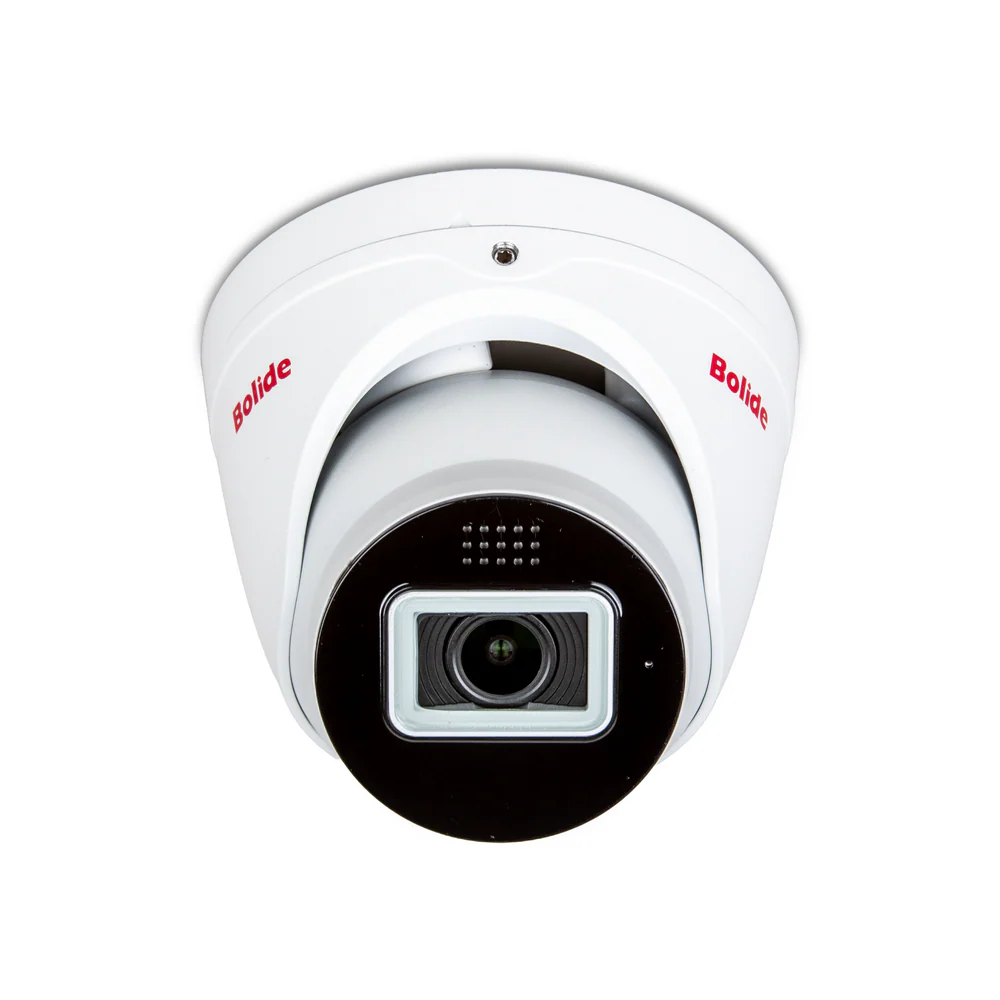

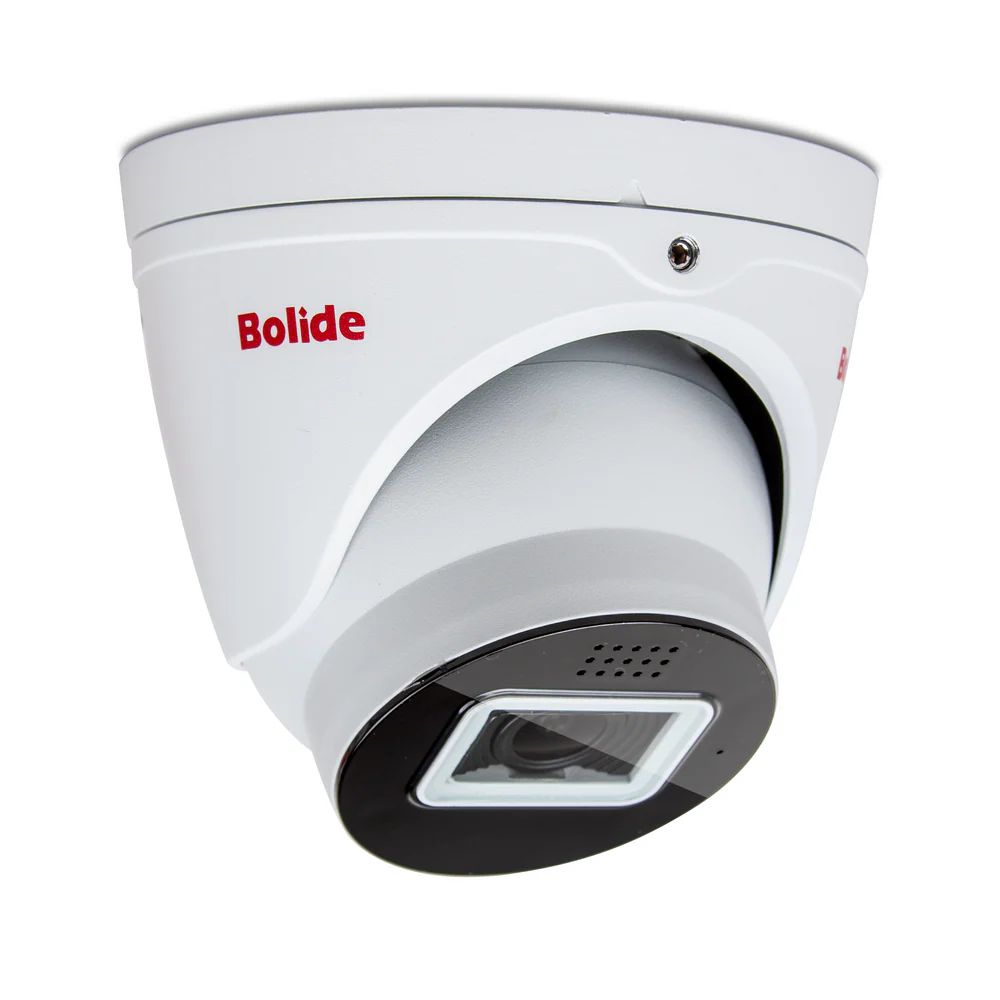

BN8019LL/NDAA 4MP ZeroRED Extreme Low Light Eyeball Camera
Part number:
Price:
• 4MP Resolution
• Full Color In Extreme Low Light
• No IR LED’s Or Warmlight
• 2.8mm Wide Angle Fixed Lens
• Two-Way Audio - Built-in Mic and Speaker
• Built-in POE
• Micro SD Slot – EDGE Recording
• ONVIF Compliant
| Specifications | |
|---|---|
| Imaging Device | 1/1.8" |
| Effective Pixels | 4MP (2688x1520) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color 0.0005 Lux @（F1.0，AGC ON） ; B/W 0 lux @ IR ON |
| Lens | |
| Lens Type | M16 |
| Focal Length (Zoom Ratio) | 2.8 mm |
| Max. Aperture Ratio | F No. 1.0 |
| Angular Field of View | Horizontal:96°, Vertical: 51°, Diagonal:115° |
| Min. Object Distance | 0.2m |
| Operational | |
| IR LED | NA |
| WarmLight | 2 |
| Red Blue Light | 2(1 Red&1 Blue) |
| IR Viewable Length | NA |
| WarmLight Viewable Length | Up to 25m |
| Type of complementary light | Default warm light |
| Backlight Compensation | Off/On (5 Zone) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Motion Detection | Off/On (8 Level) |
| Image Setting | Full Color Mode |
| Privacy Masking | Off/On (4 Zone, Rectangle) |
| Gain Control | Auto |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 256GB |
| Alarm | NA |
| Audio | Built-in microphone&Speaker |
| Hardware Reset | Yes |
| Smart Feature | |
| Smart Feature | Face Recognition (FR Human&Vehicle Detection (PD&VD) Perimeter Intrusion Detection (PID Line Crossing Detection (LCD Cross Counting) Stationary Object Detection (SOD) Heat Map (HM) Crowd Density Detection (CD) Queue Length Detection (QD) License Plate Detection (LPD) Rare Sound Detection (RSD） |
| Network | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264 |
| Resolution | Mainstream 4MP(2688x1520), 3MP(2304x1296), 1080P(1920x1080) Substream 1080P(1920x1080), 720P(1280x720), VGA(640x480) Mobilestream VGA(640x480), QVGA（320x240） |
| Video Quality Adjustment | 256Kbps ~ 8Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Security | IP address filter; complicated password; Authenticated username and password |
| Streaming Method | Unicast/Multicast |
| Application Programming Interface | ONVIF( Profile S/G/T) |
| Web Viewer | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| Environmental | |
| Operating Conditions | -30～+55°C/less than ≤ 95% RH |
| Storage Conditions | -30～+60°C/less than ≤ 95% RH |
| Ingress Protection | IP66 |
| Electrical | |
| Input Voltage / Current | D12V/POE(IEEE802.3af) |
| Mechanical | |
| Color / Material | Metal |
