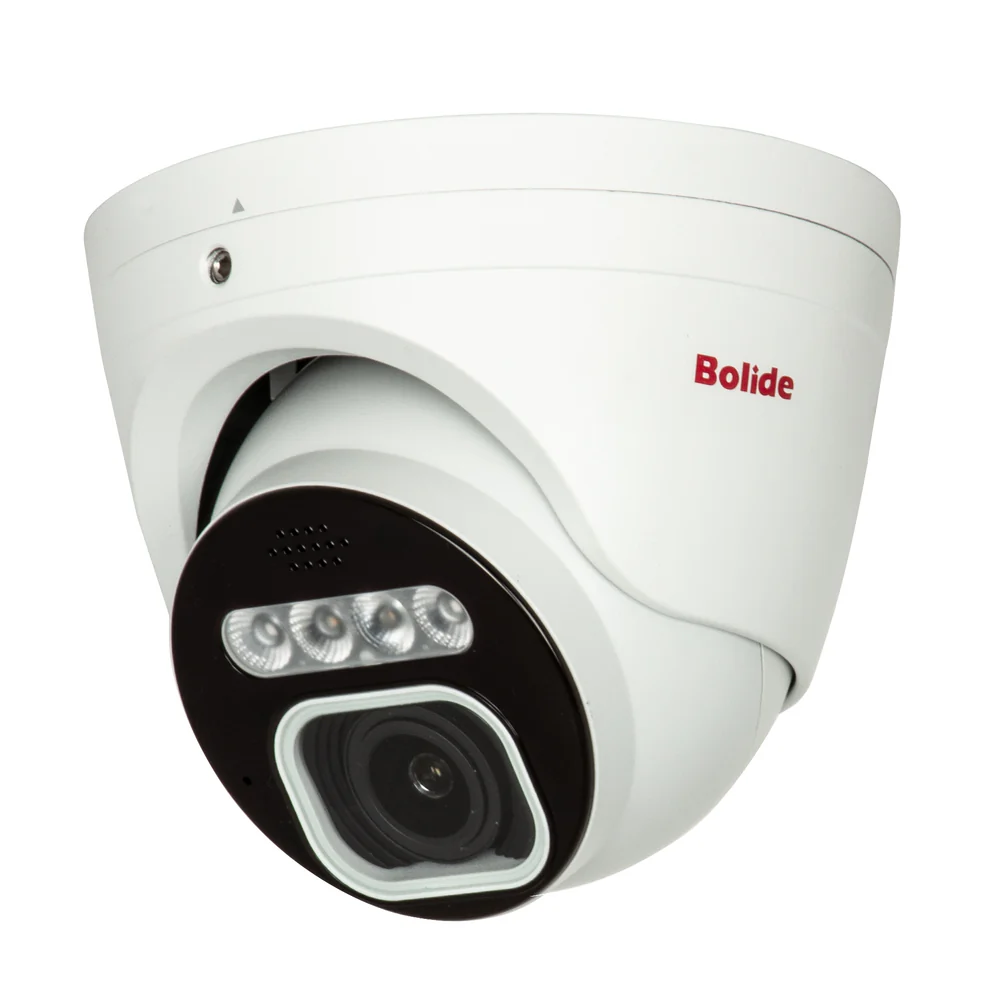

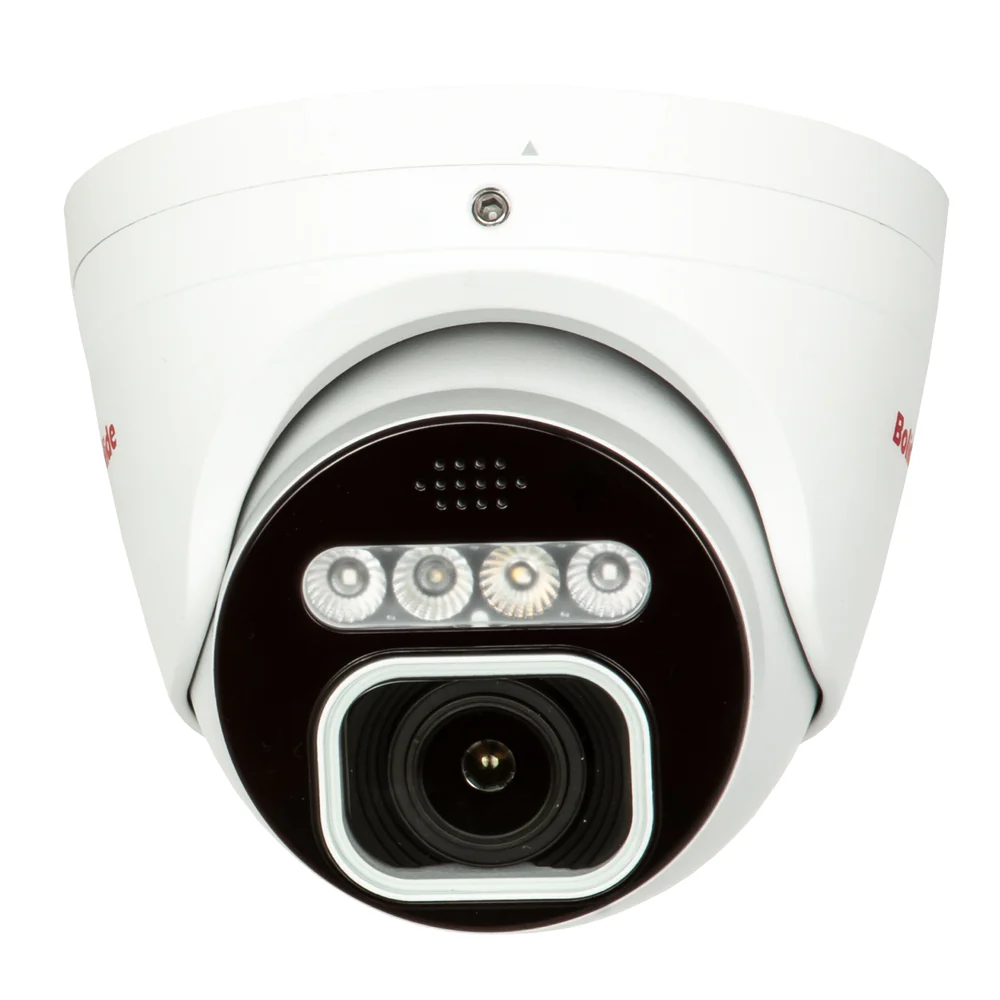

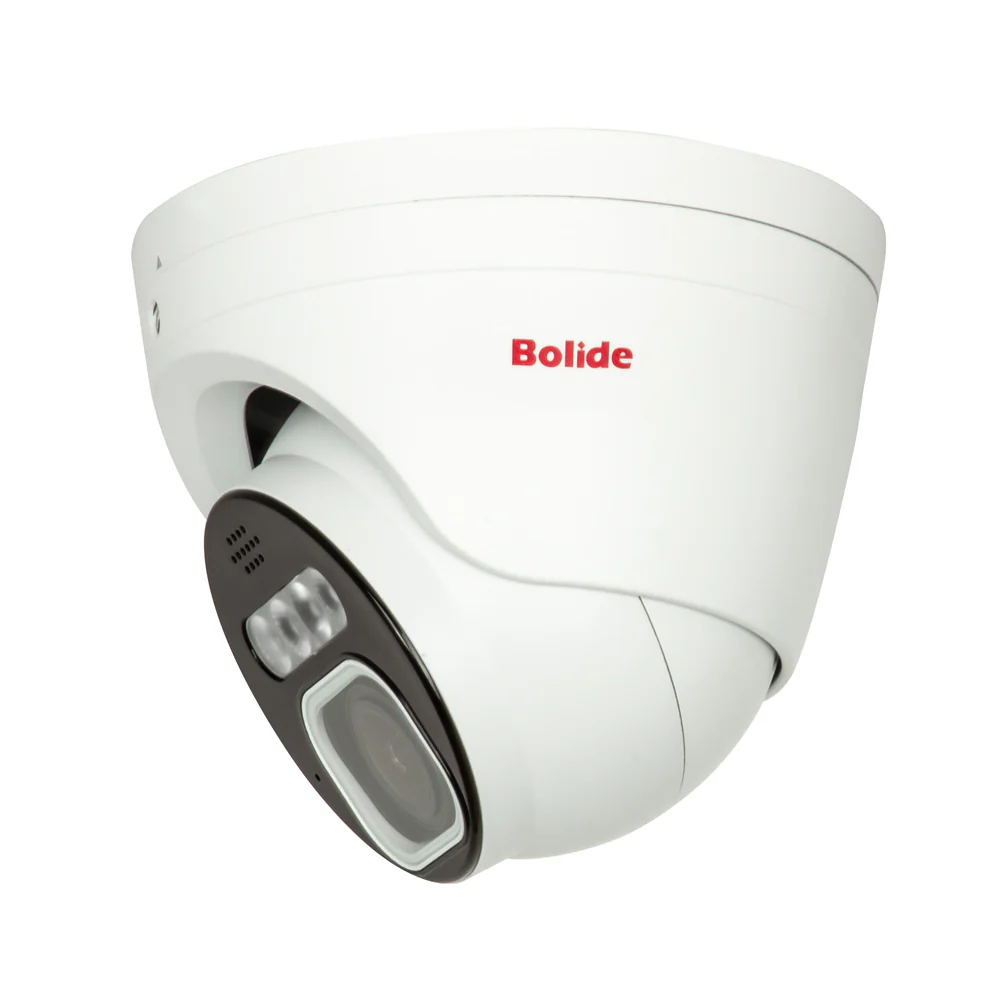

BN8029AD 5MP Motorized Varifocal Active Deterrent Camera Full Color At Night with Two-Way Audio
Part number:
Price:
• 5MP Resolution
• Red and Blue Active Deterrent Lights
• Full Color At Night with Warmlights
• 2.8-12mm Motorized Varifocal Lens
• Two-Way Audio - Built-in Mic and Speaker
• Built-in POE
• Micro SD Slot – EDGE Recording
• ONVIF Compliant
• P2P Support
| SPECIFICATIONS | |
|---|---|
| Image Sensor | 1 / 2.8” Progressive CMOS |
| Effective Pixels | 5MP 3840 (H) x 2160 (V) |
| Video Compression | H.265 / H.264 |
| Min. Illumination | Color 0.007lux @ F1.0 (AGC ON); B/W 0 lux @ IR ON |
| Lens | |
| Lens | 2.8-12mm Motorized Varifocal Lens |
| F No. | F No. 1.2 |
| Field of View | Horizontal:107(W)-34(T)°, Vertical:56(W)-19(T)°, Diagonal: 129(W)-39(T)° |
| Min. Object Distance | 4.92 Ft |
| Lighting | |
| IR LED | 2 |
| Warmlight | 2 |
| Red Blue Light | 2 (1 Red & 1 Blue) |
| IR Viewable Length | Up to 82 Ft |
| Warmlight Length | Up to 65 Ft |
| Type of Complementary Light | Default Warm Light, Switchable Infrared Light |
| Video Processing | |
| Motion Detection | Off / On (8 Level) |
| WDR | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode / Day&Night Mode / Schedule |
| White Balance | Auto, Manual |
| Shutter Speed | 1/5 ~ 1/20000s |
| Storage & Audio | |
| EDGE Recording | Micro SD Slot Up to 256GB |
| Alarm | No |
| Audio | Two Way, Built-in Mic and Speaker |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Resolution | Main Stream @ 30 FPS 5MP (2880x1620), 4MP (2592x1520) 3MP (2304x1296), 1080P(1920x1080), 960P (1280x960), 720P (1280x720) Substream @30fps 720P(1280x720), VGA (640x480), QVGA (320x240) Mobile Stream @ 30FPS VGA(640x480), QVGA(320x240) |
| Security | IP Address Filter; Complicated Password; Authenticated Username and Password |
| ONVIF | Profile S / G / T |
| Environmental | |
| Operating Conditions | -40~+140°F/Less Than ≤ 95% RH |
| Weather Rating | IP67 |
| Power | |
| Power Supply | DC 12V / POE (IEEE802.3af) |
| Power Consumption | DC12V: Max 6.9W; POE (48V): Max 8.6W |
| Physical | |
| Dimensions | 5.95 in x 4.95 in |
| Net Weight | 1.94lbs |
